EK-Quantum Vector FE RTX 3070 D-RGB - Nickel + Plexi [3831109832240]

EK-Quantum Vector FE RTX 3070 D-RGB - Nickel + Plexi
EK-Quantum Vector FE RTX 3070 D-RGB - Nickel + Plexi
EK-Quantum Vector FE RTX 3070 D-RGB - Nickel + Plexi

Overview

EK-Quantum Vector RE RTX 3070 is an updated design of the 2nd generation Vector GPU water block from the EK® Quantum Line.

Stock, Shipping & Collection Options

  10+ Available Delivery in 2-3 Days
  FREE UK/EU DELIVERY over £500+
  10+ Available for Collection
SKU: WAEK-2049
MPN: 3831109832240
EAN: 3831109832240
Warranty: 12 Months
£137.81 inc VAT
  • USD $188.44 *

* Currency conversions are based on live rates. All orders are billed in GBP
Check your hardware compatibility here EK Cooling Configurator

Details

It is made for graphics cards based on the latest NVIDIA® Ampere™ architecture. This extended compatibility water block fits the Founders Edition RTX 3070.  For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

EK-Quantum Vector RTX FE water block for reference GeForce RTX 3070

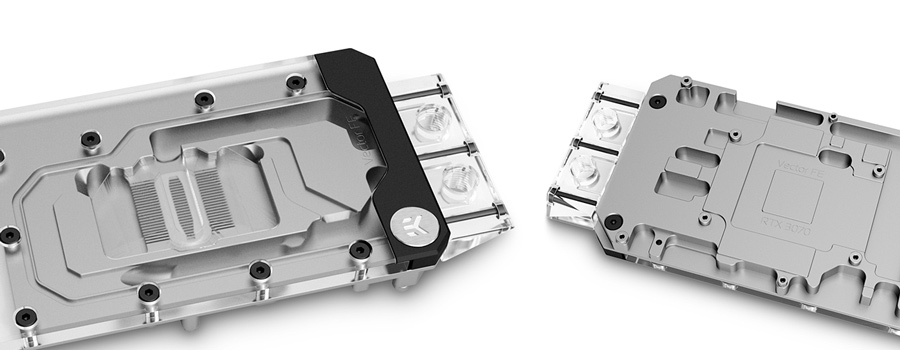

EK-Quantum Vector RTX FE 3070 D-RGB water block is compatible with Founders Edition GeForce RTX 3070 graphics cards. It is purpose-designed with a much thicker copper base to clear the tall components on the card and additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block, making it more rigid and reducing the chances of damaging the water block. This water block features a unique acrylic terminal that is located in the far end of the GPU making the whole enclosure slimmer and perfect for small form factor cases.

EK water block for nvidia 3070 Founders Edition GPUs

The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them.

The EK-Quantum Vector FE Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

Fin array is populated by 23 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature plexi terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

D-RGB lighting on EK-Quantum Vector FE RTX 3070 D-RGB water block

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 5 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Backplate for the Vector FE 3070 water block

EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM section.

Enclosed:

- EK-Quantum Vector RE RTX 3070 D-RGB series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

- Dimensions: (LxHxW) - 205x98x21mm
- D-RGB cable length: 500mm
- D-RGB LED count: 5
D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
