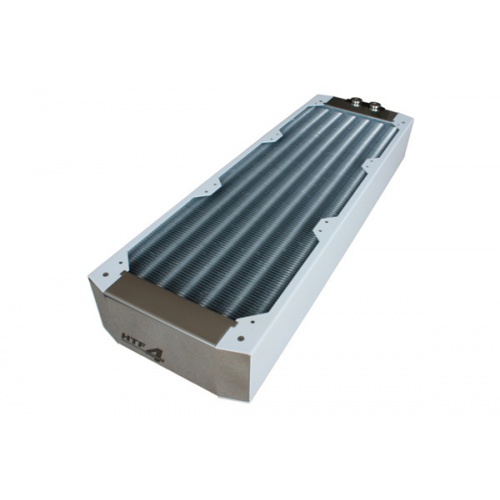

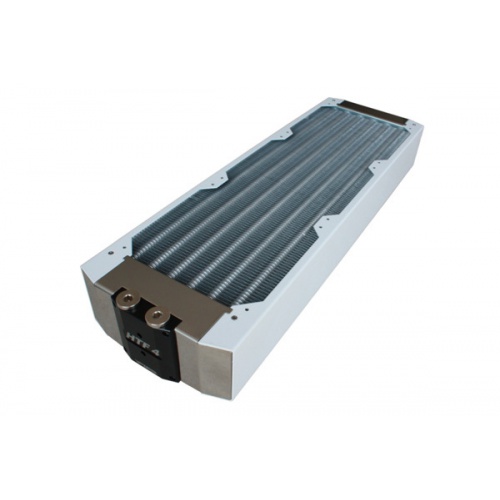

Watercool HTF4 3x140 LT - White

The coolant flows either case, U-shaped or meander with several deflections from one to the other side, the flow direction is always at an angle of 90 degrees to the fans. When the medium flows HTF4 contrast, in planes parallel to the cooling geometry, ie the planes are parallel to the fan. This process provides a more even distribution of heat in the heat exchanger and thus also for a better performance. Thanks to the seven parallel rows of tubes through which flow the flow resistance is very low, the modular port adapters are also designed for maximum flow.

Even when HTF4 again only high quality raw materials used in production. The rows of tubes are manufactured from pure electrolytic copper, the slats of high quality aluminum. For blade was intentionally left a coating. This improves the efficiency of the radiator. When a robust body of powder coating ensures optimal protection against external influences.

The series is a purebred HTF4 140mm radiator series. They are constructed completely symmetrical, the fan can be mounted on both sides. The connections can be used by both sides. For connection systems for the majority four G ¼ inch thread are available. M3 screw to the fan assembly is inserted in the housing. The design is optimized for the HTF4 slowly rotating fan.

The HTF4 has an extensive range of accessories. Optional foot stand, fan screens and mounts make it an absolute eye-catcher. For internal mounting, hes almost too good.

All this makes the new HTF4 an absolute high-end radiator.

Technical data:
Internal material: copper tubes, aluminum fins
Body material: steel, coated stainless steel polished
Exterior dimensions (L x W x H): 495 x 152 x 65mm
Weight: about 2900g
Tested pressure: 5 bar
Surface: powder-coated black
Connection: 4 x G 1 / 4 inch

Delivery:
1x HTF4 3×140 LT black
2x screw 1 / 4 inch
1x Installation Guide
