Thermaltake Floe Riing RGB TT Premium Edition Complete Water Cooling - 280mm

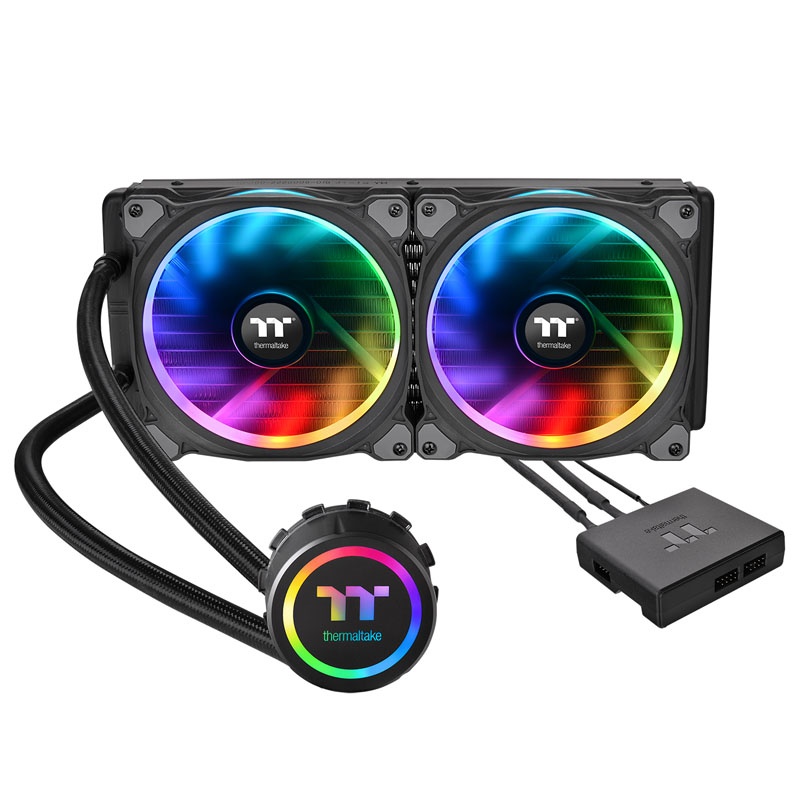

The Thermaltake Floe Riing RGB 280 TT Premium Edition at a Glance:

    Compact all-in-one water cooling for CPUs
    280mm radiator for up to four 140mm fans
    Copper heat sink for efficient heat dissipation
    Compatible with current Intel and AMD sockets
    Two Riing Plus RGB fans are included

Auxiliary fan cools CPU environment

All compact WaKü systems combine the basic design: they consist of two parts – the radiator and the heat sink. While Thermaltakes Floe Riing RGB 280 TT Premium Editions giant radiator is mounted on two 140mm fan slots, preferably on the top of the case, the cooler sits on top of the CPU. The pump is already installed in the radiator housing. Since it is a closed circuit, the system does not need to be maintained.

Fine lamellar structure dissipates heat

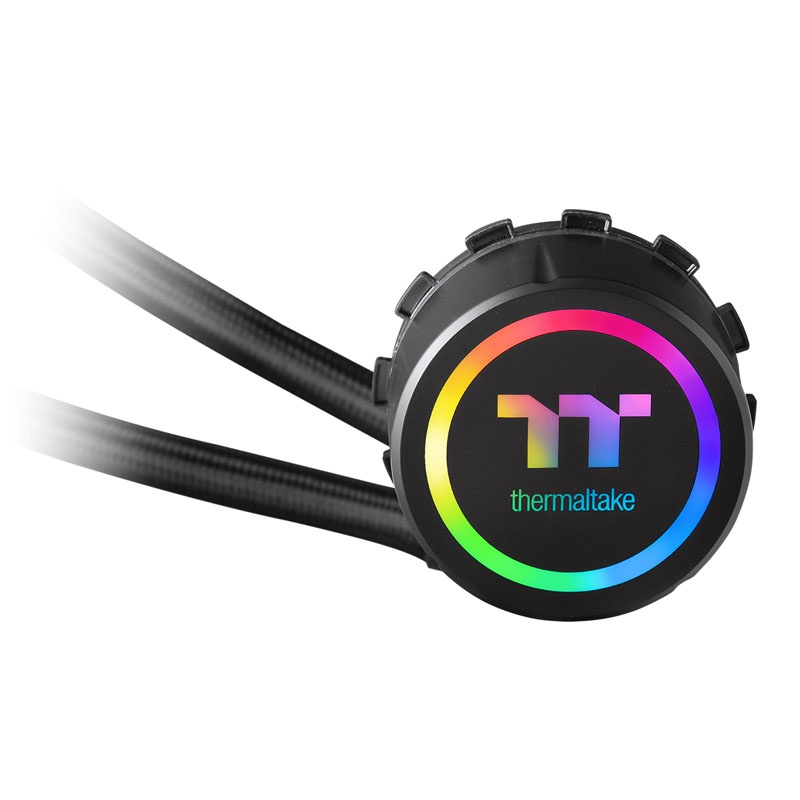

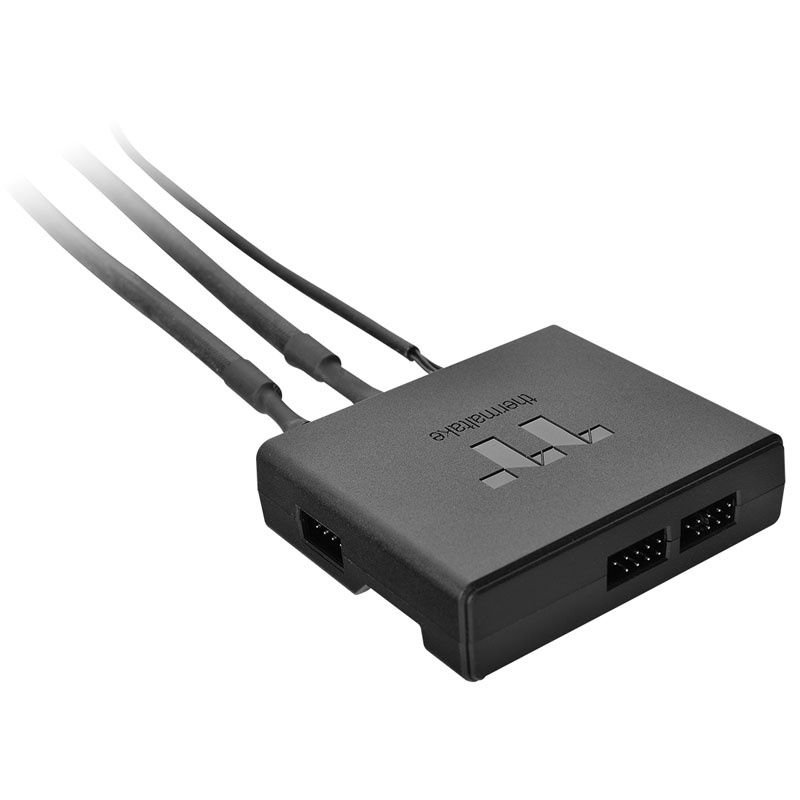

The large-area bottom of the heat sink absorbs the waste heat from the processor and efficiently conducts it to the water thanks to copper. This in turn is pumped by the pump in the direction of the radiator, where the cooling fluid flows through a fine lamellar structure – and releases the heat to the air flowing through. Thermaltake uses its own high-performance fans, the quiet and efficient Riing Plus RGB. The speeds of all fans are based on the CPU temperature, via PWM controllable and customizable. Thermaltake adds a controller for the fan and heatsink LEDs to the AiO kit.

A major advantage over CPU air coolers is the more flexible room layout for all All-In-One solutions. For reasons of space, tower coolers can usually not be used, especially in compact housings. In the case of the Floe Riing RGB 280 TT Premium edition, however, only the flat cooler needs to sit directly on the CPU.

Fits current AMD and Intel platforms

However, due to its size, the radiator is more demanding in housing than the smaller models, so it is important to check before purchase whether the enclosure used has two flush-mounted 140mm fan-mounting slots and sufficient height. Possible placements for this are the lid, the front and in very large cases also the bottom. The AiO cooling system is suitable for all current AMD and Intel platforms, the corresponding mounting systems are included.

Technical details:

    Dimensions:
    Radiator: 280 x 140 x 27 mm (L x W x D)
    Total weight: 1.55 kg
    Materials: aluminum, copper, plastic, rubber, nylon
    Pump speed: 3,600 rpm
    Voltage (pump): 12V
    Hose length: 32.6 cm
    Fan:
    Type: 2x 140 mm Riing Plus RGB
    Speed: 500 – 1,400 rpm
    Delivery volume: 39 to 107 m³ / h
    Static pressure: 0.20 to 1.53 mm H2O
    Volume: 19.8 – 27.2 dB (A)
    Voltage: 12V
    Connection: 9 pin (USB 2.0)
    Compatibility:
    Intel Socket: 1150, 1151, 1155, 1156, 1366, 2011 (-V3) 2066
    AMD socket: FM1, FM2 (+), AM2 (+), AM3 (+), AM4, TR4
