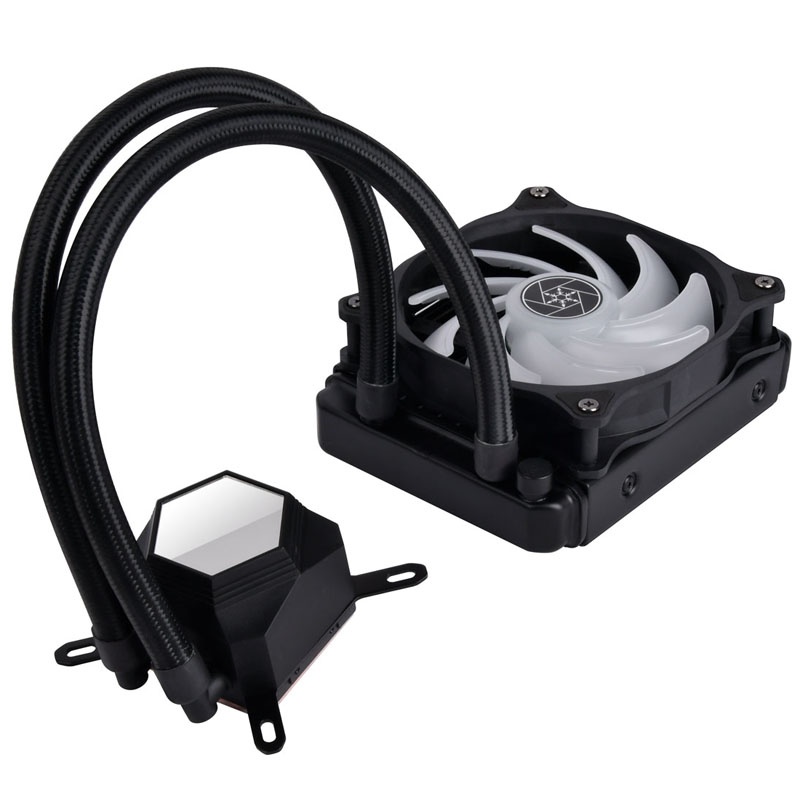

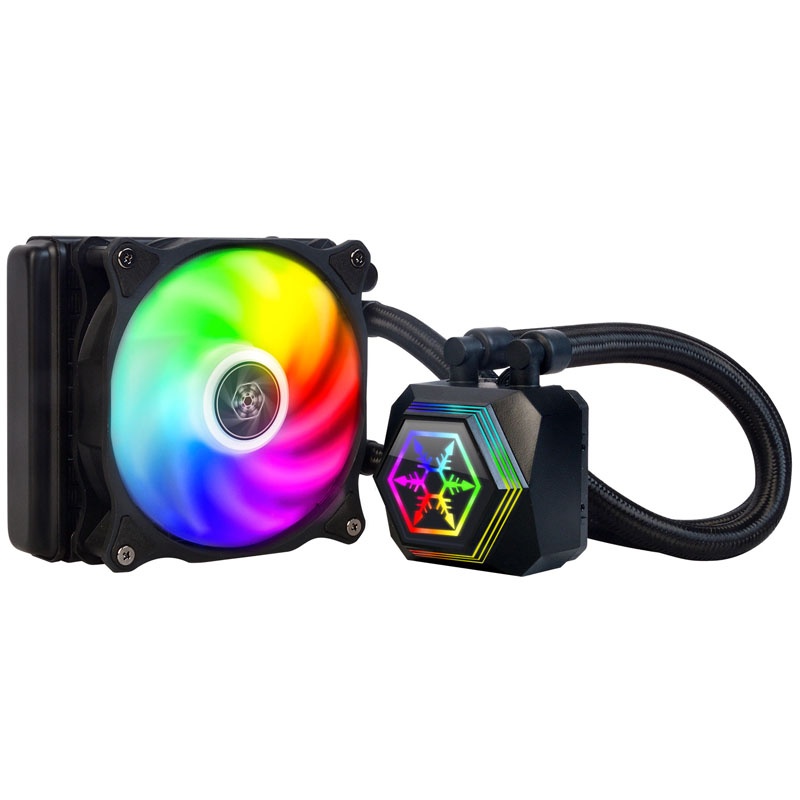

Silverstone SST-PF120-ARGB Complete Water Cooling - 120 mm

The black AIO with 120 mm radiator has an integrated digitally addressable RGB LED illumination in the CPU cooler as well as in the enclosed 120 mm fan.

The features of the Silverstone SST-PF120-ARGB at a glance:
– Efficient 120 mm aluminium radiator
– CPU cooler with copper bottom plate
– Rubber pads included on fan for lower vibration and noise
– Hoses with black sleeve
– Integrated digitally addressable RGB LED lighting for waterblock and fan
– Includes 120mm RGB LED fan and RGB controller
– Includes addressable RGB controller with 10 lighting modes and ability to adjust brightness and colour changing speeds.
– For Intel and AMD sockets

High efficiency multi-chamber pump design
Water block includes a pump with multi chamber design that isolates hot and cold liquid channels to prevent heat bleeding, thus making it more effective at removing heat away from the water block.

Superior motor construction
The pump motor utilises three phase, six pole design for smoother, quieter operation compared to most single phase, four pole design. Energy efficiency also improves as well.

0.2mm micro-liquid channels
0.2mm micro liquid channels evenly distribute liquid flow for improved heat dissipation.

Automotive grade sine wave generator
An automotive grade sine wave generator is used to drive the pump motor. This ensures electrical noise and vibration are kept to a minimum. It is also AEC-Q100 certified according to Automotive Electronics Councils standard so it has great quality and durability.

Automotive grade radiator
Automotive grade radiator is used so it has excellent anti-corrosive properties and can easily survive harsh elements that includes vapor, liquid, grease, solvent.

Pressure optimised radiator fan
Included PWM fan (Air Blazer 120R) has unique ribbed edge fan blades that suppress air turbulent noise with geometry optimized for both air flow and pressure. This ensure maximum performance with lowest possible noise.

Technical details:

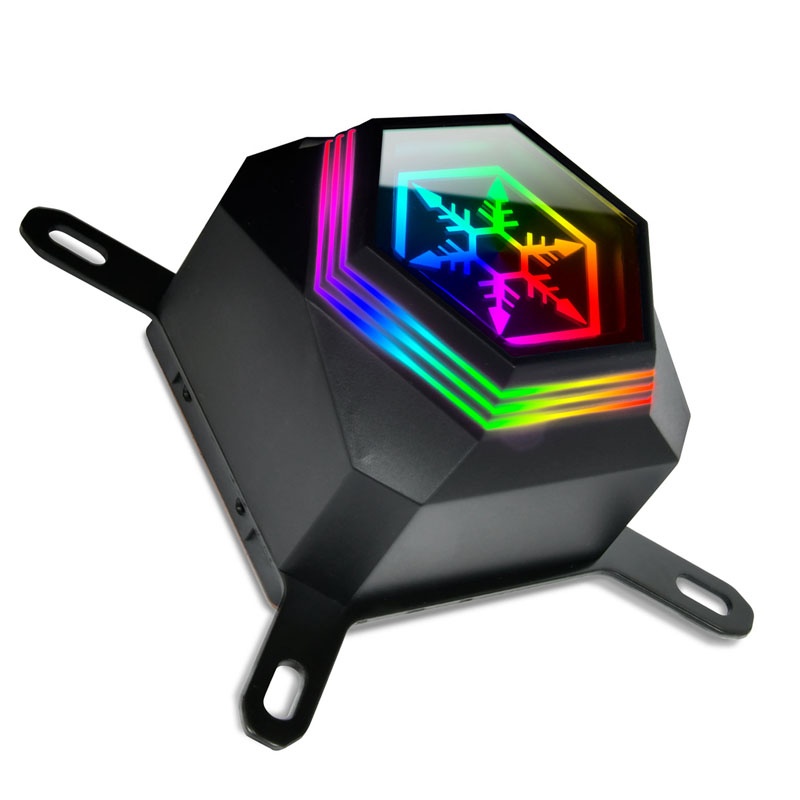

Waterblock:
– Dimensions: 61 x 61 x 50 mm (L x W x H)
– Material: copper base with plastic body

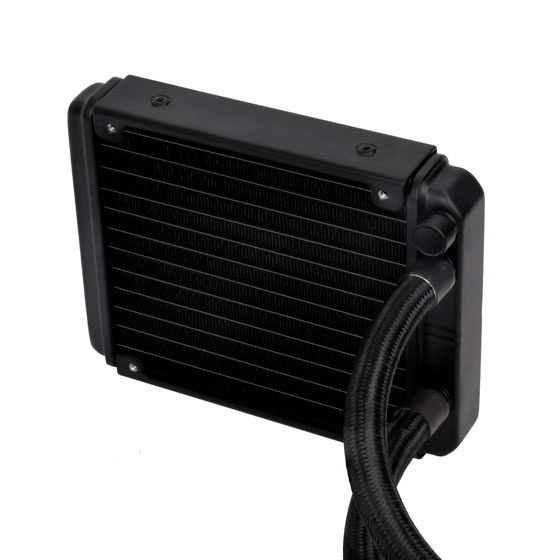

Radiator:
– Dimensions (without fan): 153 mm x 120 mm x 28 mm (L x W x H)
– Material: Aluminium
Pump:
– Speed: 3400±10% RPM
– Rated voltage: 12V
– Rated current: 0.39 A
Fan:
– Dimensions: 120 x 120 x 26 (L x W x D)
– Speed: max. 2,200 rpm
– Max airflow: 94CFM
– Static pressure: 3.53mm/H2O
– Volume: max. 35.6 dB (A)
– Connection: 4 Pin PWM & 4-1 Pin ARGB (5V LED)
– Rated voltage: 12V
– Rated current: 0.32 A
– Hose length: 400 mm
Compatibility:
– Intel: LGA775 / 115X / 1200 / 1366 / 2011 / 2066
– AMD: AM2 / AM3 / AM4 / FM1 / FM2
