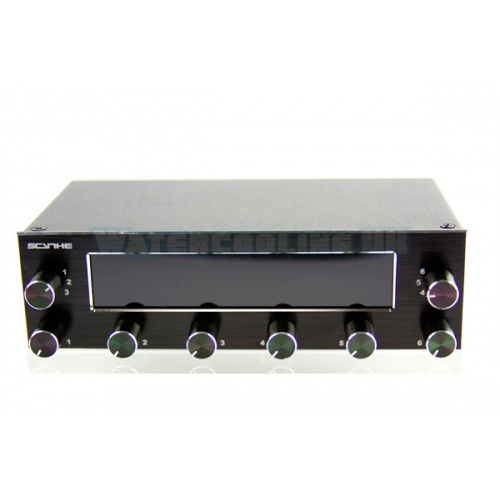

The Kaze Master Ace Pro is a stylishly designed 6-channel fan controller. The elaborately worked bezel in brushed aluminum, a clear display and a number of functions offers the Kaze Master Ace Pro versatile applications. The design fits perfectly into high-end PC cases, but also for external use, the Kaze Master Ace Pro catches the eye.
For better readability of the data, a VF display is used.
The Kaze Master Ace Pro is a stylishly designed 6-channel fan controller. The elaborately worked bezel in brushed aluminum, a clear display and a number of functions offers the Kaze Master Ace Pro versatile applications. The design fits perfectly into high-end PC cases, but also for external use, the Kaze Master Ace Pro catches the eye. For better readability of the data, a VF display is use...
The Kaze Master Ace Pro is a stylishly designed 6-channel fan controller. The elaborately worked bezel in brushed aluminum, a clear display and a number of functions offers the Kaze Master Ace Pro versatile applications. The design fits perfectly into high-end PC cases, but also for external use, the Kaze Master Ace Pro catches the eye. For better readability of the data, a VF display is use...
No products found
Fluorescent display
The Kaze Master Ace Pro is equipped with a VF display. Here is the text illuminated while the background remains dark. This results in better contrast and better readability from a distance. The display shows the fan speed, temperature, and the number of the selected fan.
It is possible to select between Celsius and Fahrenheit. In the middle of the display in case of emergency also a display that indicates what caused the fan connected to the alarm.
Selection of the fan
Kaze Master Ace Pro allows the user to independently adjust six fans of each other. On the display to display two of the connected fan is possible. By means of two knobs can select which fan data is displayed. The numbers of the selected fan will be displayed.
Speaker

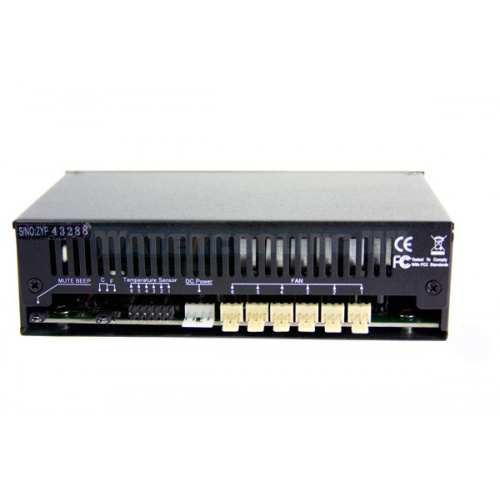

The Kaze Master Ace Pro is equipped with a loudspeaker, which can be heard in the event of an alarm signal errors. This speaker can be permanently on a jumper at the back of the unit on or issued. The alarm can also be turned off by the appropriate fan control switch off immediately.
Technical details:
Model Name: Kaze Master Ace Pro
Model no. KM04-BK (black)
Overall Dimensions (W x H x D): 148.5 x 42 x 83 mm
Display Dimensions (W x H): 100 x 19 mm
Input voltage: 5V or 12V (From PC Power Supply)
Output voltage: 3.7 V (± 10%) ~ 12V (± 10%)
Fan channels: 6 (max. 1 Ampere and max 12 W)
Speed range: 0-9990 rpm (Display: 30 rpm Steps)
Temperature channels: 6 (0 – 100 degrees C / 32 – 199.9 degrees F)
Weight: 325 g
Delivery:
1x Scythe Kaze Master Ace Pro – Black
8x temperature sensor cable
6x fan cable
1x power cable
4x mounting screws
multi-language installation manual
