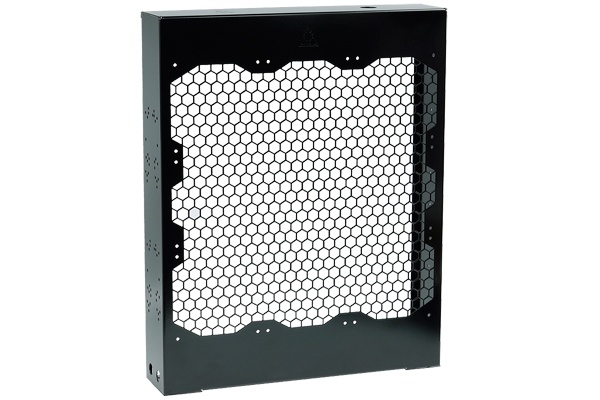

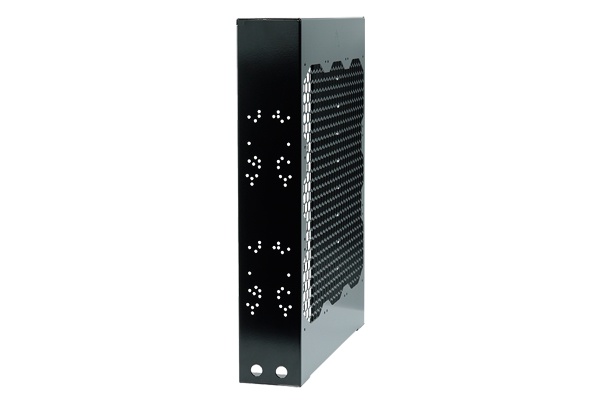

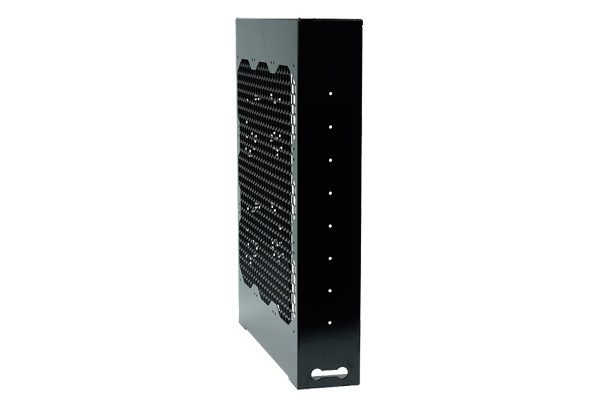

Phobya Radiator Stand - black - Bench Edition: Supernova 9x140mm/4x200/4x220

The Phobya radiator stand is available in multiple versions:

3x360mm radiators
9x120mm radiator
2x240mm radiators
4x120mm Quad radiator.
What makes this radiator stand so special are here in details:

Pumps are one of the elements that can also be installed. They can be mounted either on the inside or outside, depending on how you compile your system. The integrated M4 holes allow the use of an array of different decoupling or pump types.
Pump compatibility with pre-punched holes (amongst others): Laing DDC, Laing D5, Eheim 1046 (HPPS, Aquastream, Watercool 12V), Eheim 1048, Magicool 12V, Phobya DC 260 & DC 400.

Reservoirs: Can be mounted on both the pump- or opposite side. Mounting of a reservoir is also possible either on the inside or outside of the stand. The reservoir side is also equipped with M6 holes. The spacing of the holes allows easy mounting of (amongst others) the following reservoirs:Alphacool Cape Corp Coolplex, Innovatek Tank-O-Matic, Koolance Reservoir, LUND Reservoir, Magicool Plexiac, Phobya Balancer and XSPC Passive reservoirs.

Fillports make filling of a system easy and also look great! The 1 opening (2.54cm) is compatible with virtually all available Fillports!

Tubing loop-through is always a factor in an external watercooling system. The Phobya radiator stand has 18mm loop-through holes for easy tubing managment. A further possibility is the use of a bulkhead quick-release connector to allow leak-free separation of the loop.
Furthermore other bulkhead fittings, bushings, valves or other connective possibilities can be used to connect the watercooling system to the PC.

Power supply is also an interesting point. The different Phobya adaptors and extensions allow connection via only one plug.

Feet: Preinstalled holes make mounting for protection of the floor or for easy decoupling of the whole system very easy. Also fixed mounting on the wall or at your desk is possible.

This is only a small part of the possibilities of this stand! Creative users are sure to discover even more possibilities and combinations of mountable products!

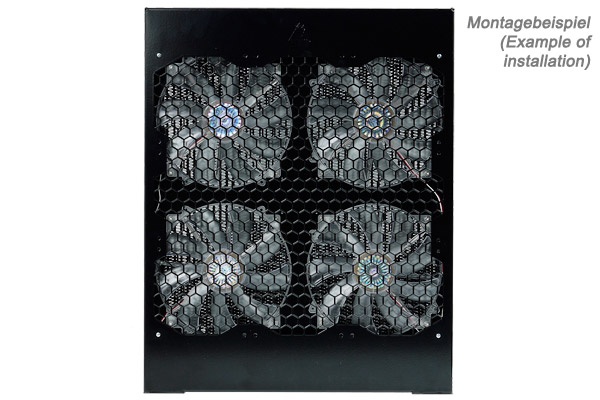

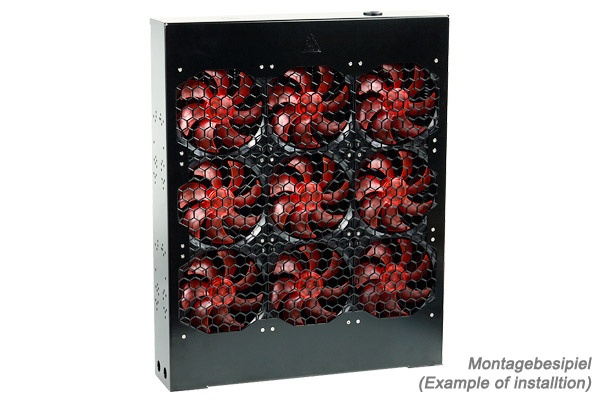

Fan compatibility:
hole dimensions: 140mm, 200mm, 220mm
Fan type: Cooler Master, Yate Loon, Sharkoon & all 140mm fans

Technical specifications:

Material: SC steel
Dimensions:

Feet size(to either side): 32mm
Height: 563mm
Length: 453mm
Width: 100mm

Fillport opening: 1 (25.4mm)
Hose loop-through hole size: 18mm diameter
Slot length: 57mm

Extent of delivery:

1x Phobya Radiator stand- black – Bench Edition: Supernova 9x140mm/4×200/4x220mm
