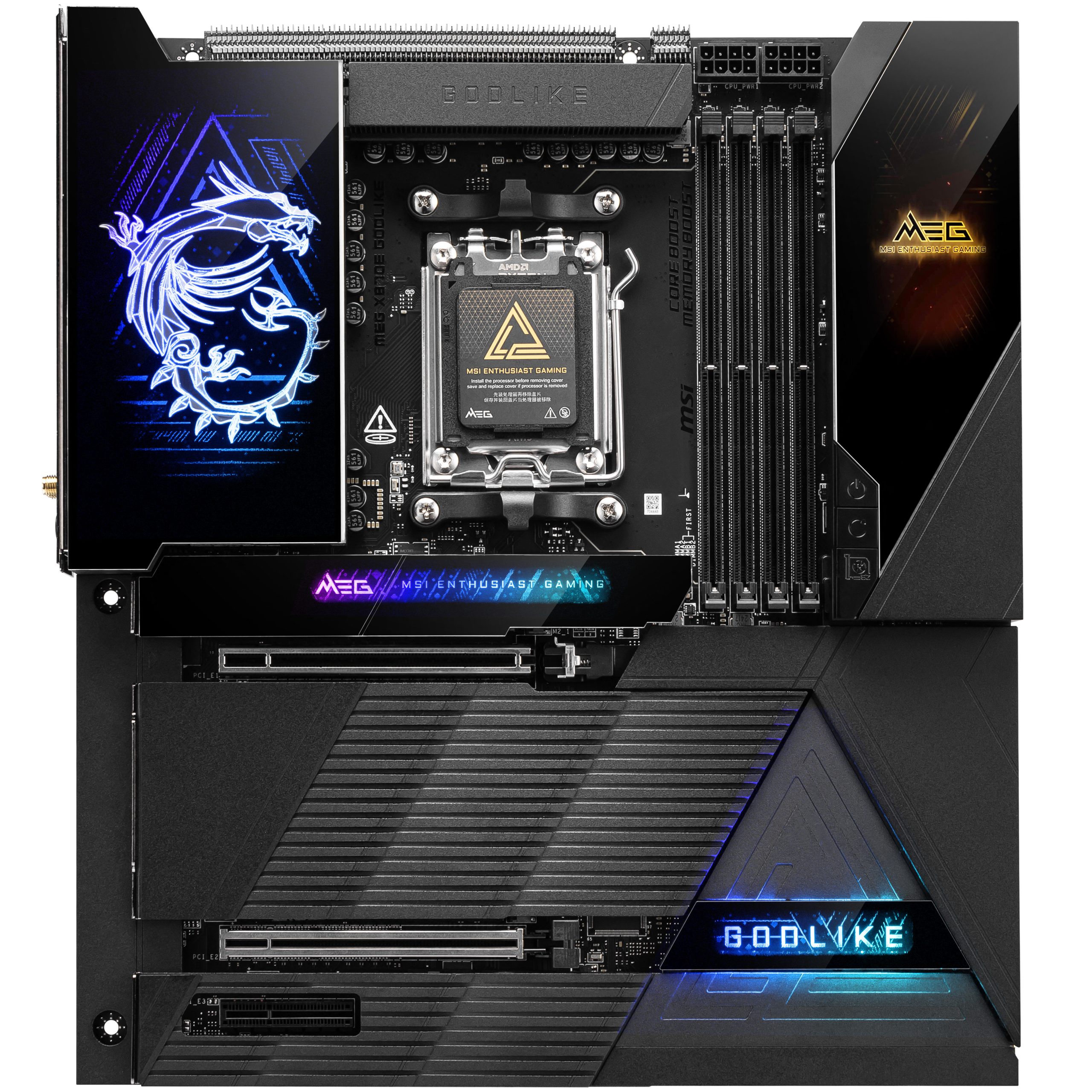

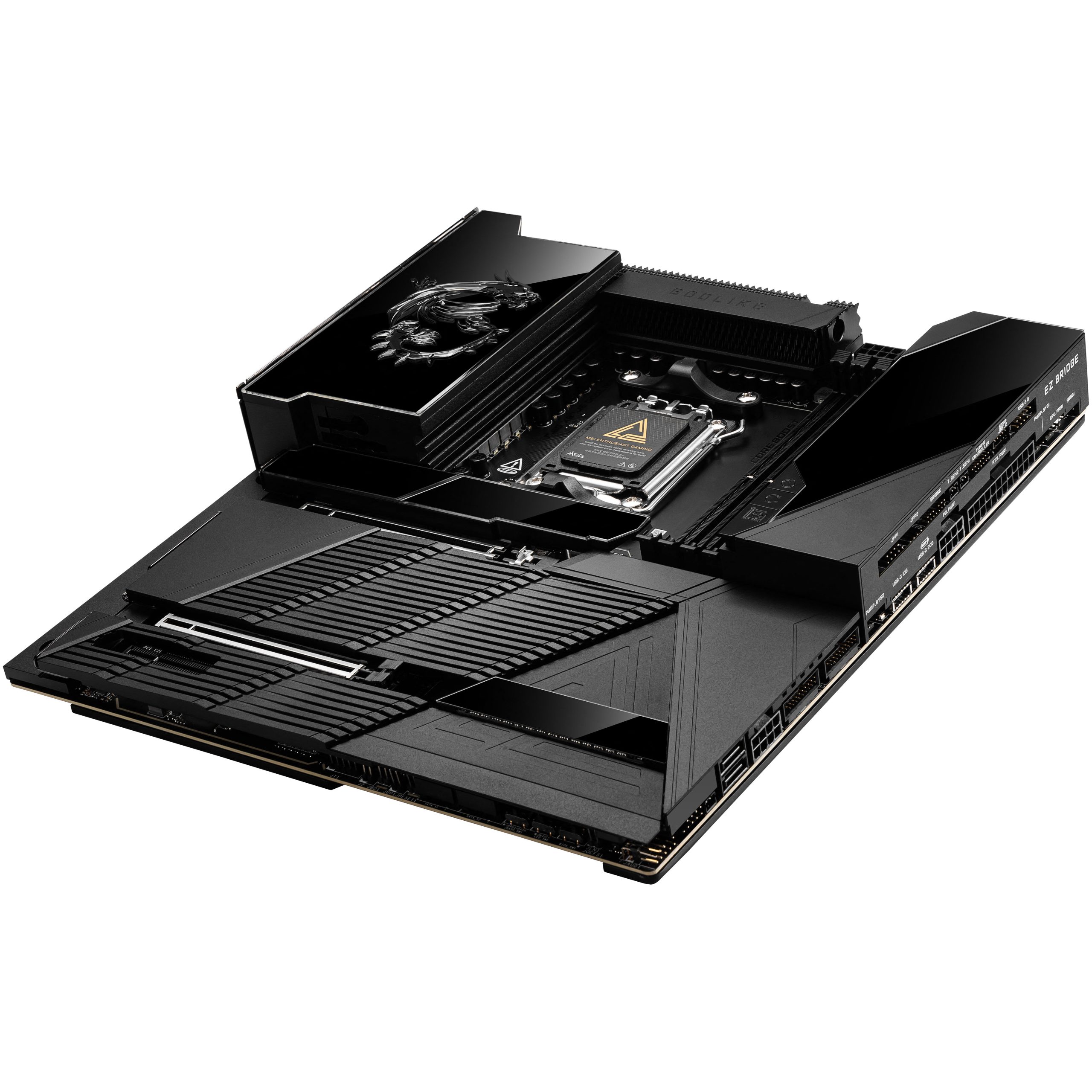

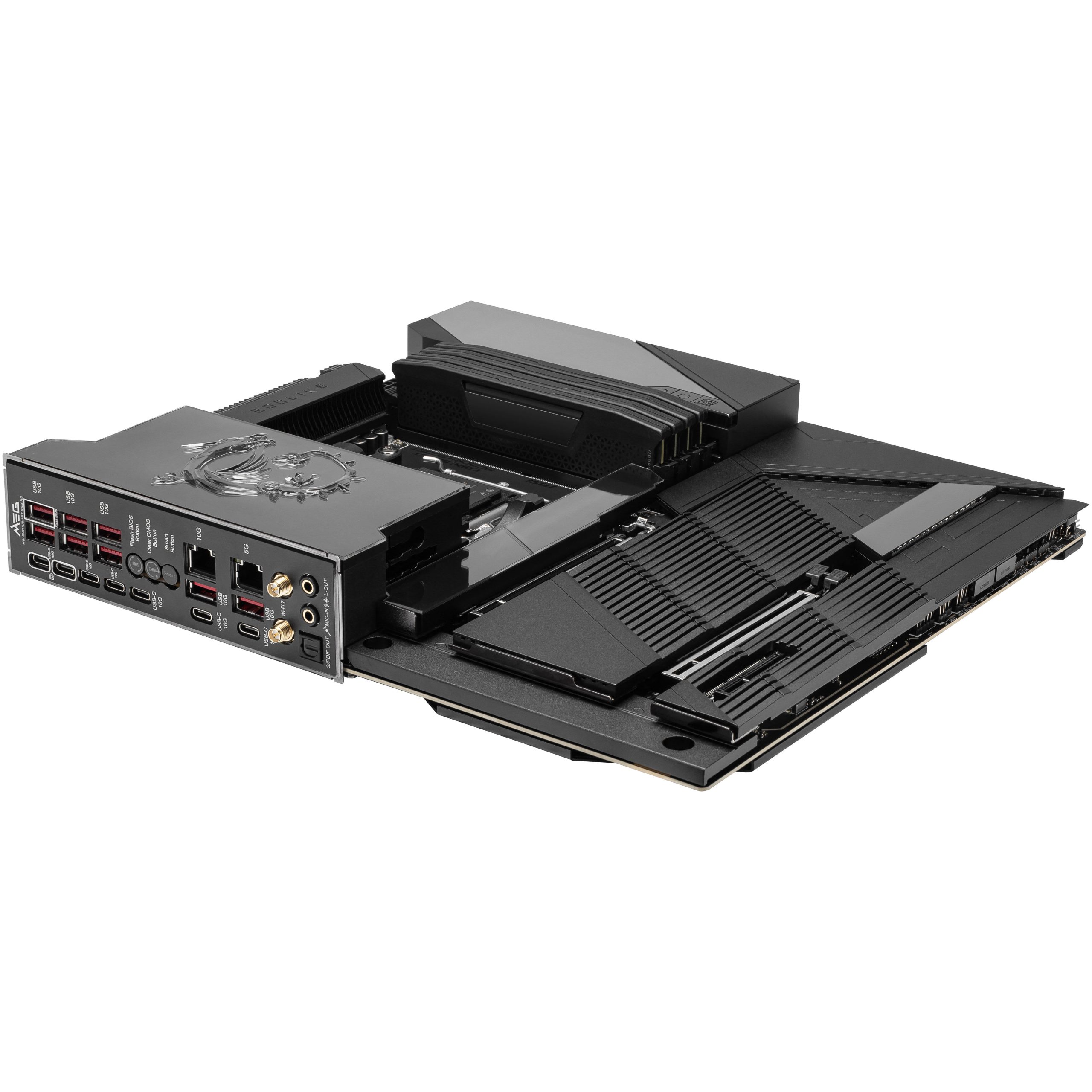

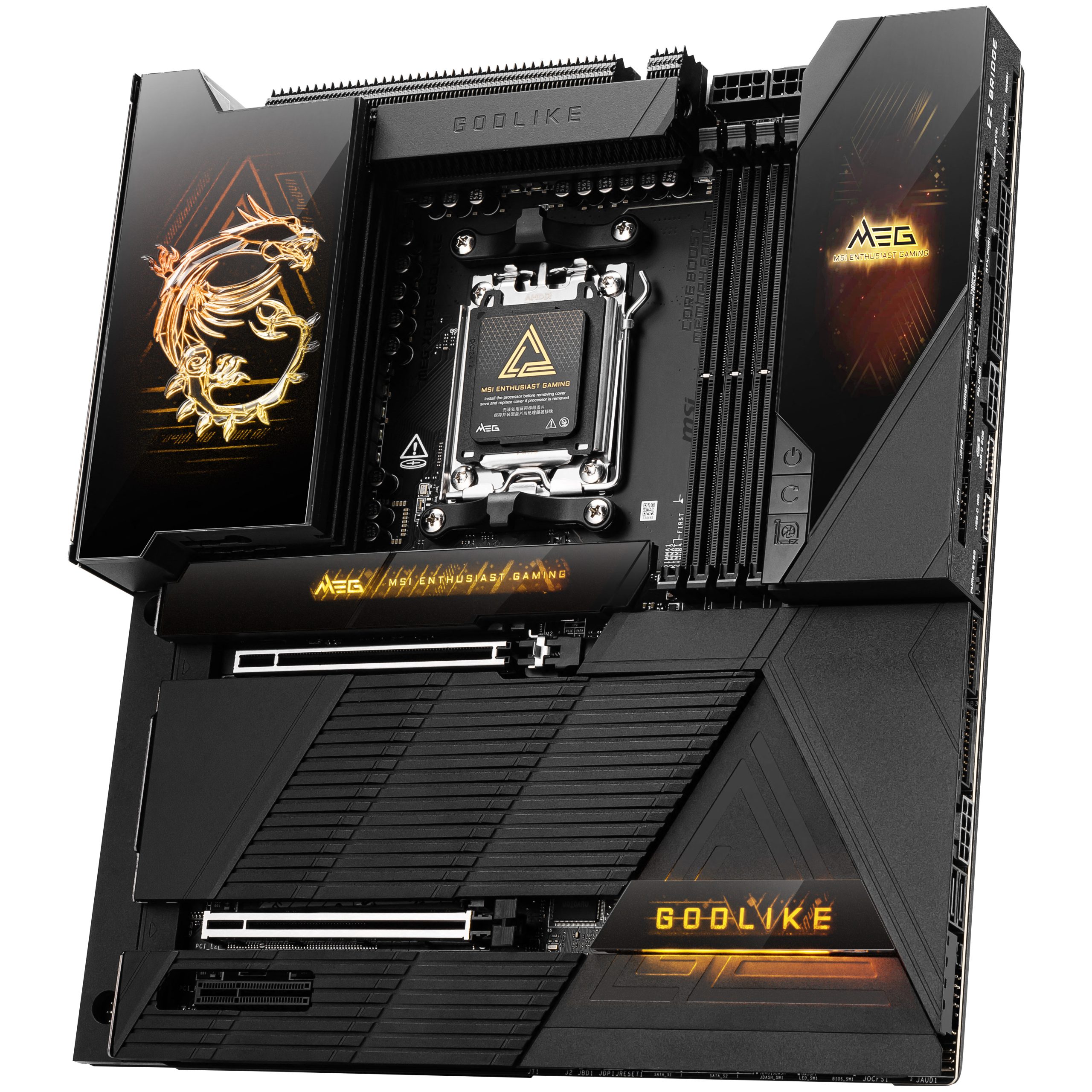

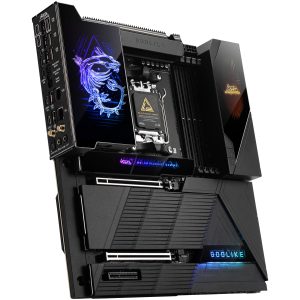

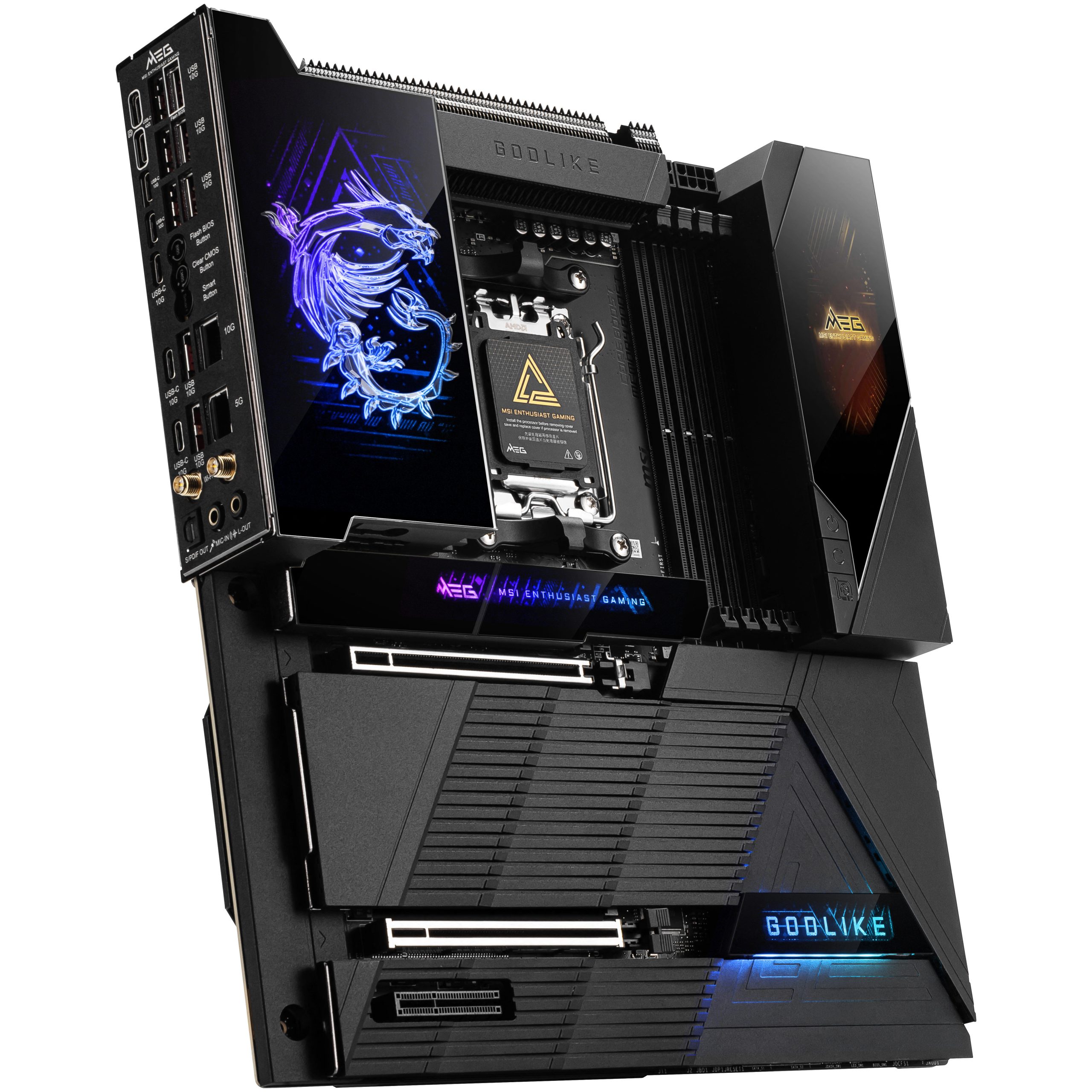

MSI MEG X870E Godlike motherboard, socket AM5, AMD X870E, E-ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x8), and 1x PCIe 4.0 x4 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,000 MHz (OC)
– 7x M.2 (including 4x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

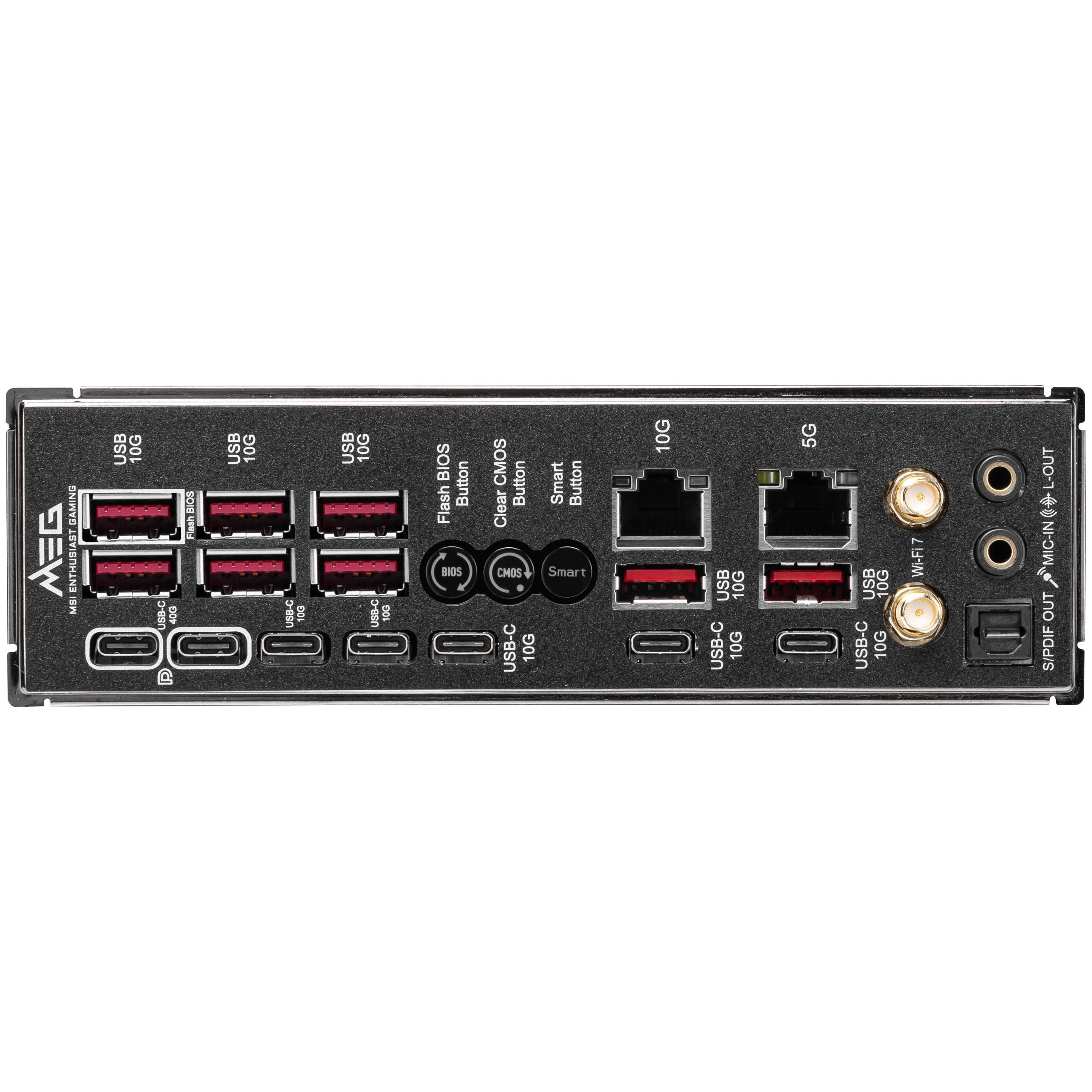

– 2x USB 4, 5x USB-C 3.1, 8x USB 3.1 on the I/O panel
– OC features: 24+1+1 phase VRMs

The MSI MEG X870E Godlike is equipped with the high-end X870E chipset for AMDs Ryzen 9000 series processors and offers numerous features for overclockers and gaming enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the MSI MEG X870E Godlike supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly Equipped for Gaming
The motherboard is designed for overclocking, so you can enjoy even demanding games. The voltage converters, with 24+2+1-phrase VRMs, provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 277 mm
– Width
– 305 mm
– Form Factor
– Motherboard Form Factor
– E-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD X870E
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– – Max. Memory Speed (OC)
– 9000 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 10 Gbps, 1x 5 Gbps
– LAN Chip
– Marvell AQC113CS, Realtek 8126
– WLAN / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Cooling

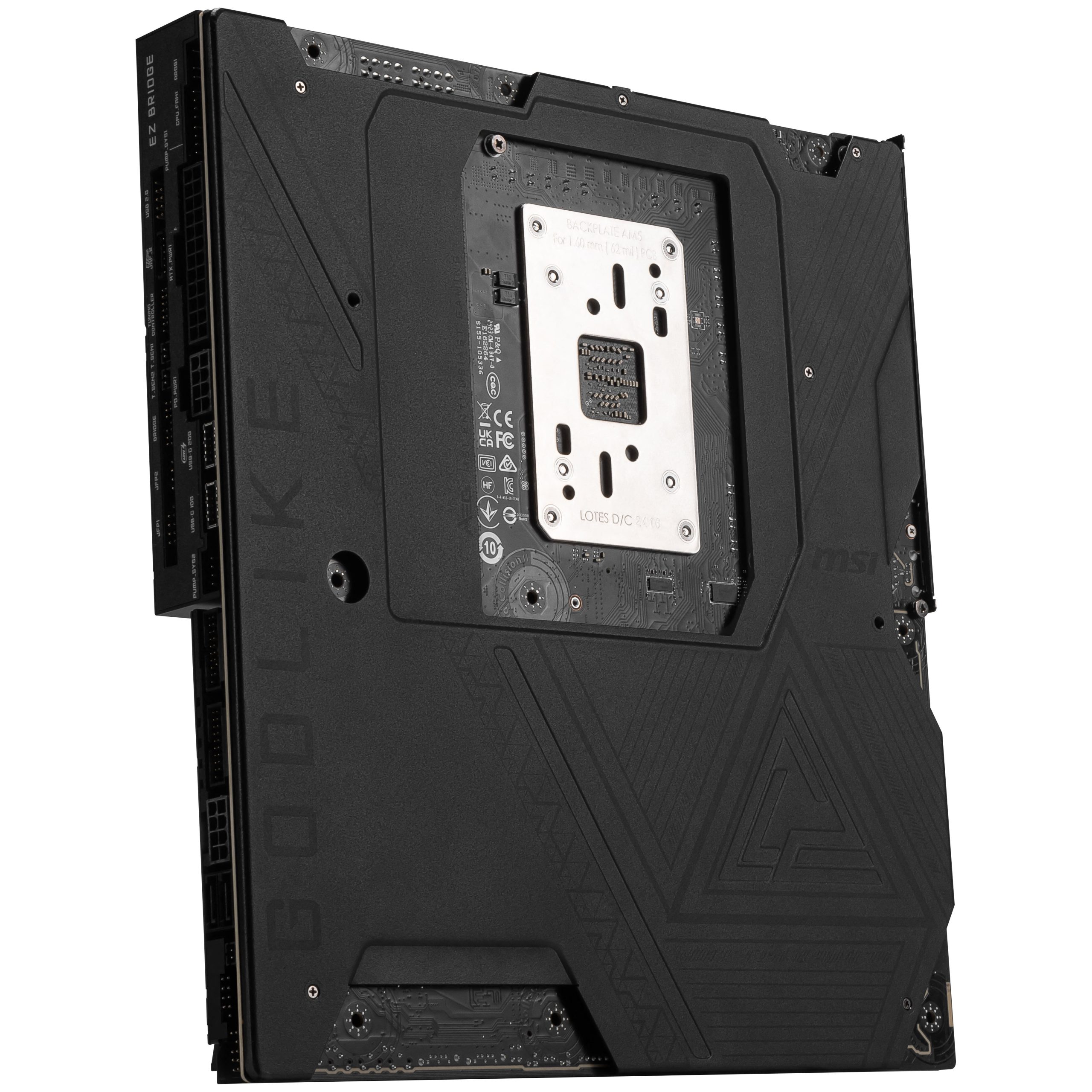

– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Headers
– 2
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 2
– USB 3.0 (internal) Headers
– 2
– USB 3.0 (internal) Possible Connectors
– 4
– RGB / LED Connectors
– 1x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– No
– External Connectors
– USB 4 Gen 3×2 (external) Type-C
– 2
– USB 3.1 (external) Type-C
– 5
– USB 3.1 (external) Type-A
– 8
– Display Ports
– USB Type-C (Display Port Shared) (2x)
– Storage Connectors
– M.2 PCIe 4.0 x4
– 3
– M.2 PCIe 5.0 x4
– 4
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
– Expansion Slots
– PCIe x16 slots (total)
– 2
– PCIe x4 slots (total)
– 1
