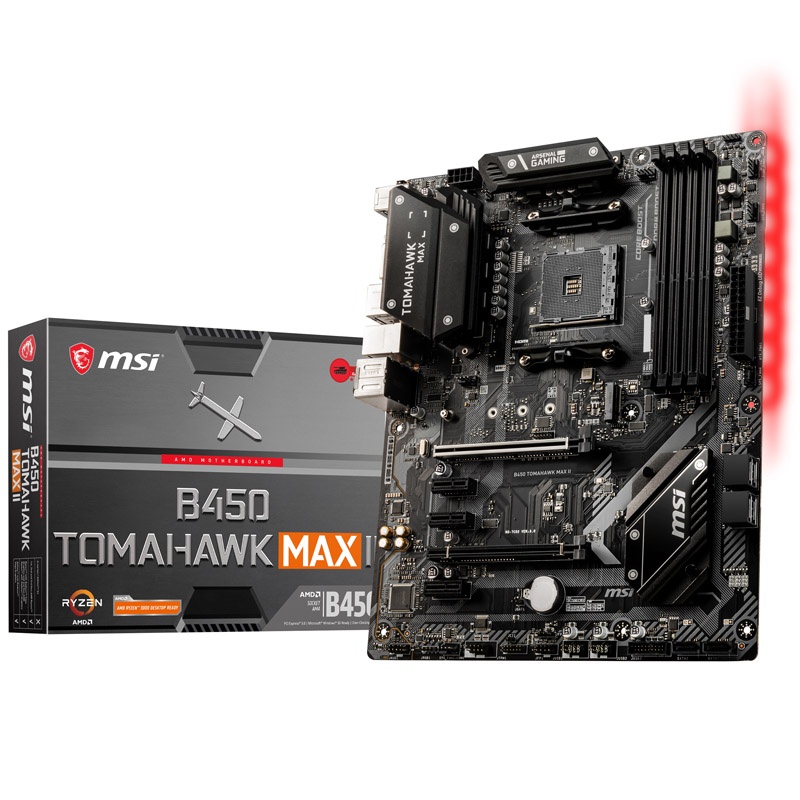

MSI B450 Tomahawk Max II, AMD B450 mainboard - Socket AM4

B450 motherboards support all features of the Ryzen processors of the second and third generation, such as the new overclocking feature XFR2. With its ATX form factor, it fills the mainboard trays of common cases and offers a balanced ratio of expansion options and space savings.

The motherboard has a two-tone design and focuses on efficiency. The mainboard has its own RGB lighting with a zone on the right edge and offers additional connections for RGB accessories. MSI Mystic Light RGB serves as the interface for control and synchronization.

Our King Mod Service will be happy to update the BIOS to the latest version in advance:
Now add the BIOS update service to the shopping cart
The features of the MSI B450 Tomahawk Max II motherboard at a glance:
1x PCIe 3.0 x16 (x16), 1x PCIe 2.0 x16 (x4) and 3x PCIe 2.0 x1
2x USB 3.1 (1x type C / 1x type A), 2x USB 3.0 type A and 2x USB 2.0 external
2x USB 3.0 type A and 4x USB 2.0 internal
1x M.2 (PCIe 3.0 x4 & SATA) / 6x SATA 6G
Supports max. 128 GB DDR4-RAM up to 4,133 MHz
RGB header: 2x RGB
Fast gigabit LAN

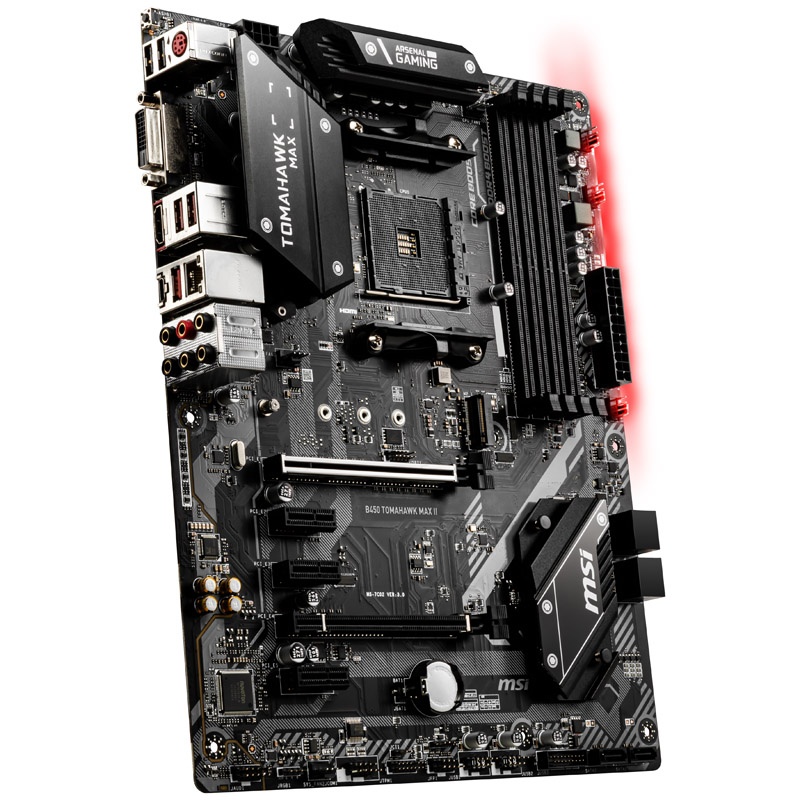

The MSI B450 Tomahawk Max II in detail
The MSI B450 Tomahawk Max II is an AMD B450 motherboard in ATX form factor and provides a PCIe x16 slot for expansion cards. This is connected directly to the CPU with a total of 16 lanes and supports PCIe 3.0. There is also a PCIe 2.0 x16 slot and three PCIe 2.0 x1 slots for expansion cards.

random access memory
The four DIMM slots support up to 128 GB DDR4 memory with a clock rate of up to 2,667 MHz. Using OC, however, the MSI B450 Tomahawk Max II also enables RAM kits to be operated up to 4,133 MHz.

Drives
The MSI B450 Tomahawk Max II offers an M.2 slot for fast NVMe SSDs. This is connected directly to the CPU with 4 lanes and supports PCIe 3.0. Six SATA 6G connections are available for additional SSDs, hard disks and optical drives.

USB, network and sound
On the I / O panel, the MSI B450 Tomahawk Max II has two USB 3.1 ports (1x type C, 1x type A) with 10 Gbit / s, two USB 3.0 ports (type A) with 5 Gbit / s and two USB 2.0 ports. In addition, the mainboard is equipped with a LAN with 1 GBit / s (Realtek RTL8111H) for fast data transfers. The integrated Realtek ALC892 / ALC897 audio codec sound chip ensures rich 7.1 surround sound.

Only compatible with AMD 10th and 11th generation CPUs!

Technical details:
Format:
ATX (305 x 244 mm)
Chipset:
AMD B450
Base:
AM4 (for Pinnacle Ridge / Summit Ridge / Bristol Ridge / Raven Ridge / Matisse)
R.A.M:
4x DDR4 (2,667 MHz, up to 4,133 MHz via OC)
Max. 128 GB
Slots (physical):
1x PCIe 3.0 x16 (x16)
1x PCIe 2.0 x16 (x4)
3x PCIe 2.0 x1
Internal connections:
1x M.2 (PCIe 3.0 x4 & SATA; 2242 to 22110 – only with AMD Ryzen)
6 x SATA 6G
2x USB 3.0 type A (one header, USB 3.2 Gen 1, max. 5 GBit / s)
4x USB 2.0 (two headers)
1x front panel audio header
2x system panel headers
1x serial port header
1x chassis intrusion header
1x Clear CMOS header
1x TPM module header
Fan header:
1x CPU fan (4-pin)
1x Water Pump Connector (4-Pin)
4x system fan headers (4-pin)
RGB header:
2x 4-pin RGB header (12V)
External connections:
1x Flash BIOS button
1x PS / 2 combo
1x USB 3.1 Type C (USB 3.2 Gen 2, max. 10 GBit / s)
1x USB 3.1 type A (USB 3.2 Gen 2, max. 10 GBit / s)
2x USB 3.0 type A (USB 3.2 Gen 1, max. 5 GBit / s)
2x USB 2.0
1x DVI-D
1x HDMI 2.1
1x RJ-45 (Realtek RTL8111H, max. 1 Gbit / s)
6x 3.5 mm jack (Realtek ALC892 / ALC897 Audio Codec)
Power supply:
1x 24-pin ATX 12V
1x 8-pin ATX 12V
Manufacturers guarantee: 3 years
