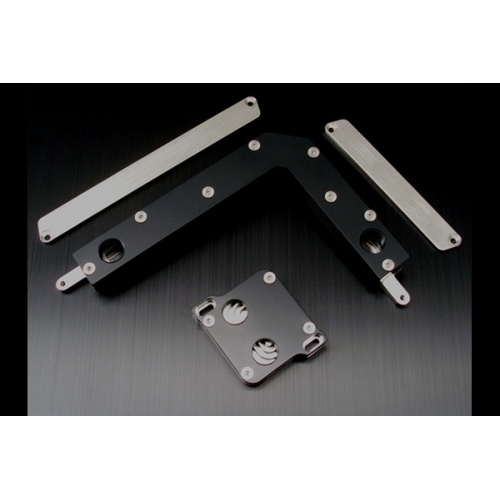

MIPSASUS P8P7 Deluxe Set Nickel POM Limited Edition

NICKEL LIMITED-POM edition with nickel-plated copper bottoms!

With this cooler kit we offer you a completely customized cooling solution for the following ASUS motherboards:

– ASUS P8P67 Deluxe
– ASUS V-P8Z68
– ASUS P8Z68-V PRO
– ASUS Deluxe P8Z68

If you already have a water cooling system, we have thus the ideal complement for your system.

– You only need 2 pieces 1 / 4ports of their choice, even very large ports are no longer a problem. Thanks to the great distance between the connecting thread of the cooler for high-flow ports is suitable.
– To avoid bending the motherboard, we deliver from our dual MOSFET cooler with 2 backplates made of nickel plated pure copper.
– Together with our South Bridge Cooler MCH4085 you can really heat all the critical components of your motherboard cool and reliable the whole thing in a unified design.

WARNING: The dismantling of the original Cooler eventually resulting in warranty, please work accordingly careful when mounting this product. For damages or consequential damages is not liable!
Tip: Take on the best of the original thermal pad mosfet coolers! For the South Bridge, use for example a non-conductive thermal compound Arctic Cooling MX 2 / 3 series, for the protection of open Souhthbridge we recommend our Schutzpad 31 060, 31 059 or 31 012 mitzubestellen same!

Technical data Southbridge cooler:

Base plate footprint: 42 x 42mm
Total size without connections: 50 x 42 x 11mm (L x W x H without connections)
Weight: ~ 83g
Bottom panel: pure copper plated 5mm
Upper panel: POM black 6mm
Connection thread: G1 / 4

Technical data Mosfet Cooler:

Dimension floor tiles: 138 x 16 mm and 96 x 14mm
Total size without connections: 145 x 111 x 21mm (L x W x H without connections)
Weight: ~ 186g
Bottom panel: pure copper plated 5mm
Upper panels: 2 x 8mm black POM
Connection thread: G1 / 4
