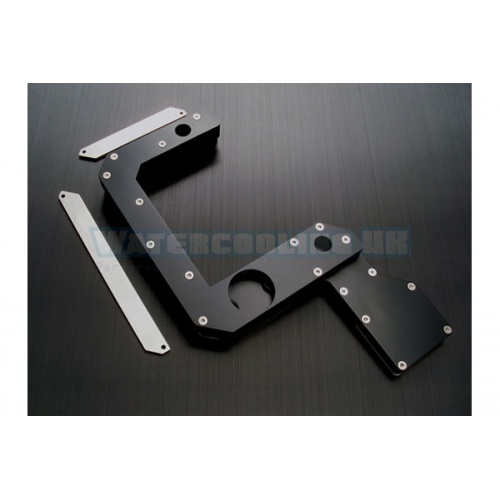

MIPSASUS Maximus 4 Extreme-Z Fullcover Nickel POM Limited Edition

– No more connections in the field of graphics cards, ie they can use all the expansion slots full.

– You only need 2 pieces 1 / 4ports of their choice, even very large ports are no longer a problem. Thanks to the great distance between the connecting thread of the cooler for high-flow ports is suitable.

– There are not only cool the two chipsets and the MOSFETs, but also more heat-critical components, this was the copper ground to 4 different heights above mills.

– To prevent bending of the motherboard in the range of the voltage converter, we deliver this massive cooler backplate made of nickel plated with pure copper.

– The illuminated R.O.G. Logo You can remove it from the original heatpipe and put it in our full cover cooler again (cable runs under the radiator)

If you already have a water cooling system, we have thus the ideal complement for your system.

ATTENTION: The dismantling of the stock chipset cooler may void your warranty, you work accordingly careful when mounting this product. For incidental or consequential damages is not liable!

Tip: For the MOSFET, please use the supplied thermal pads for rubber pads attached to the backplate! For the Southbridge and the NF200 chip, please use a non-conductive thermal paste as Arctic MX Series, for the protection of open Souhthbridge we recommend our Schutzpad 31 060, 31 059 or 31 012 mitzubestellen same!

Technical data:
Total size without connections: 245 x 126.5 x 27mm (L x W x H without connections)
Weight: ~ 260g
Base Plate: Nickel-plated pure copper 5mm (mosfet) 3mm (chipsets)
Upper panels: black POM
Connecting thread: G1 / 4
