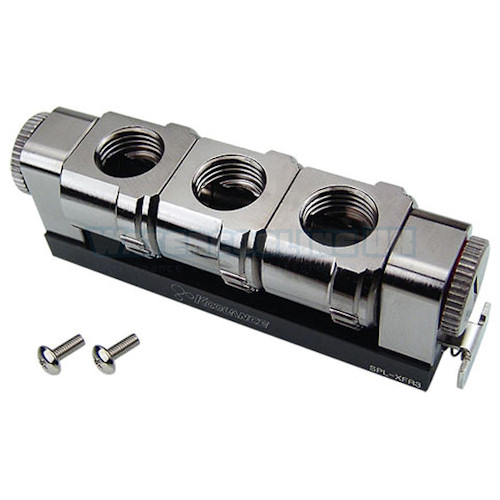

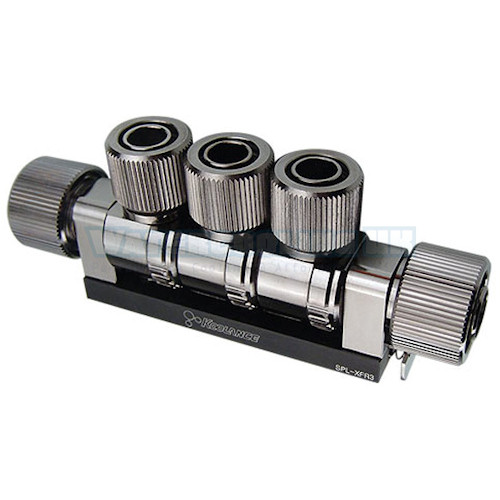

Koolance Tubing Splitter / Manifold, 5-Way Rotary

This 5-way manifold offers a whole array of new tubing possibilities.

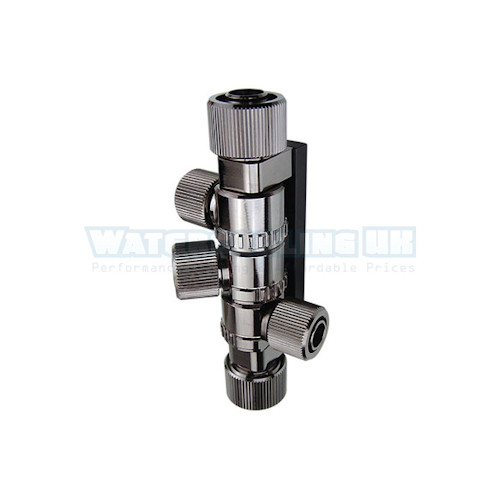

The ends of this manifold can be considered inlet and outlet, the three middle pieces are distributing pieces which can be revolved by 180 degrees. To prevent the distributors from swinging back from the desired position the base of the manifold is equipped with notches which lock the distributor pieces in place and can be releases by pushing a small lever at the front end of the manifold. Following Koolance traditions the manifold has a black nickel surface finish and can be installed with the included mounting screws,

Technical specifications:
Material: Brass, black nickel plated
Dimensions (LxWxH): 90x20x30mm
Connection threads: 5x 1/4

Extent of delivery:
1x Koolance Tubing Splitter/Manifold, 5-Way Swivelling
2x Mounting screws
