Koolance presents a pump with reservoir and fan controller in one unit! This is the successor to the popular RP-1005 and is now shipped with 10kOhm temperature sensors.

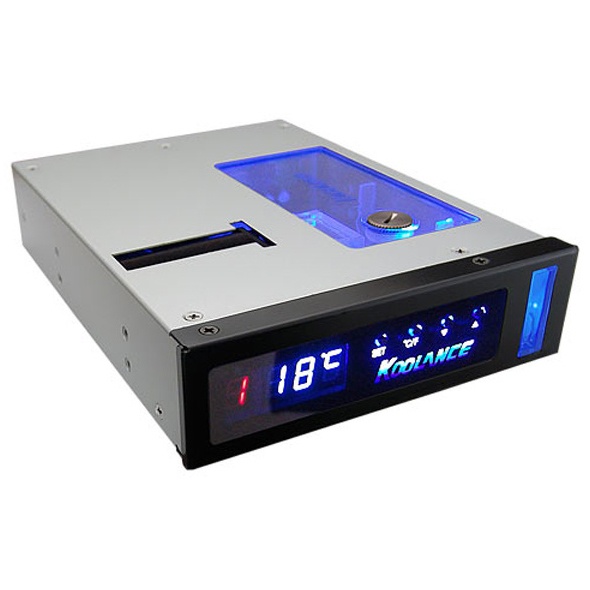

Installed in a 5.25 form factor enclosure with a black front and blue LED display, this multi-functional unit is a must for every water cooling user. Many useful features make this product a unique overall package.
The reservoir:
Made from Plexi with an aluminium enclosure this reservoir is a well-designed component for your cooling system. Internal channels held de-aerate the coolant by directing it inside of the reservoir. Filling is possible through an opening on top of the unit which is sealed with a 1/4 screw plug. In the front, alongside the display, an opening is integrated to allow visual confirmation of the fill level. The reservoir is integrated into the cooling loop through the 1/4 connection threads.
Koolance presents a pump with reservoir and fan controller in one unit! This is the successor to the popular RP-1005 and is now shipped with 10kOhm temperature sensors.
Installed in a 5.25 form factor enclosure with a black front and blue LED display, this multi-functional unit is a must for every water cooling user. Many useful features make this product a unique overall package.
The re...
Koolance presents a pump with reservoir and fan controller in one unit! This is the successor to the popular RP-1005 and is now shipped with 10kOhm temperature sensors.
Installed in a 5.25 form factor enclosure with a black front and blue LED display, this multi-functional unit is a must for every water cooling user. Many useful features make this product a unique overall package.
The re...
No products found
The pump:
The pump in this unit is compact, but also very powerful. A flow rate of 522l/h and the pressure head of 7m are truly astonishing! The great advantage of this pump respectively whole system is that it can be adjusted. At a voltage of 6V the internal pump is barely audible. The power can also be cut off completely, it is connected via a 3-Pin connector at the rear of the reservoir.
Fans and sensors:

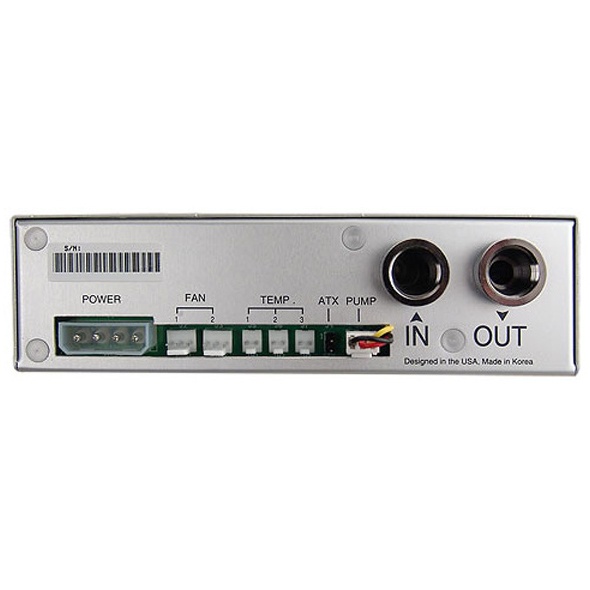

At the rear of the reservoir 2 3-Pin fan connectors. These can be supplied with more or less voltage to allow control over the connected fans. 3 included sensors can be monitored and displayed on the front display. The most interesting feature is that fans and temperature values can be assigned in 10 individual steps to allow automatic speed settings.
The display:
As the central interface of the unit the display shows the user all important information. The display with a blue backlight can show different temperatures of the system in Fahrenheit or Celsius successively. A backlit logo shows who has designed this masterpiece: Koolance!
Technical specifications:
Material: Aluminium, Plexi
Colour: Black front, blue backlight
Dimensions (LxWxH): 222 x 148 x 42mm
Weight: 907g
Power connector: 12V DC via 4-Pin Molex
Pump performance: Flow rate: 420 l/h
Pressure head: 2.6m
Power consumption: 8.6W
Extent of delivery:
1x Koolance pump and reservoir RP-985
3x Sensors
English illustrated mounting manual
Mounting material
Please note: Due to the low depth of the connection threads of only 5mm some fittings may require spacer rings (Item No.: 14087, 14151 or 95008)
