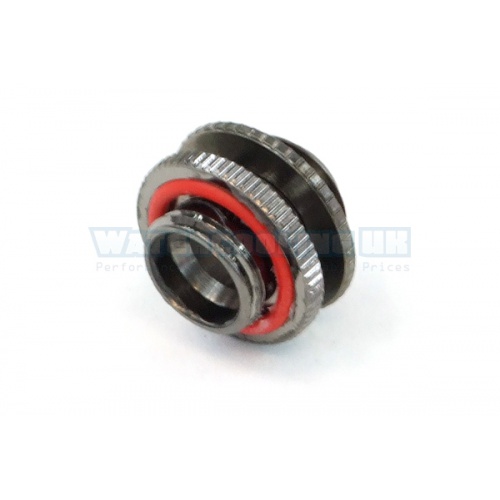

Koolance RAM-35 Connection Piece (Type 1)

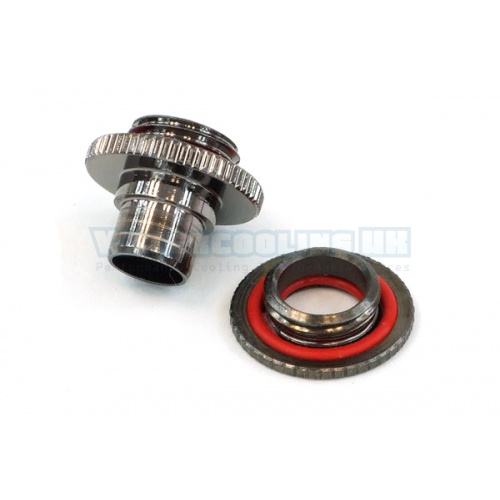

They can be slid apart between 7mm and 11mm. The one piece has a longer channel and the other the suitable opening which allows the two pieces to be slid together and therefore vary the thread distance.

The female piece has a seal integrated to ensure a perfectly tight connection. Both pieces are knurled to make tool-free installation easy, also both pieces have an O-ring seal on the threads to ensure tight connections. AS the thread length including seal is only 4mm the double nipple can be used in almost every system.

Technical details:
Material: Nickel coated brass
Thread length: 4mm
Thread distance: 7-11mm
Overall length: 17mm

Extent of delivery:
Koolance RAM-35 connector piece (type 1)
