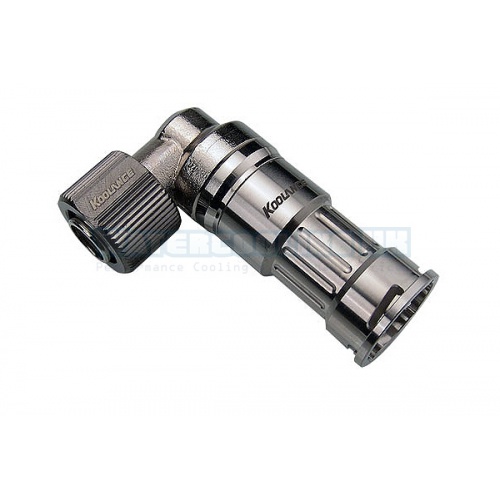

Koolance Quick Release 13/10mm (ID 3/8 OD 1/2) Female 90- (High Flow)-VL3N

When connected additionally a silicone seal will press against the inner wall of the female coupling which additionally seals the connection. To prevent unwanted separation the coupling is locked and released by twisting the coupling. Hence it cannot be separated until it is twisted back.

Please note that the couplings of the VL2N series are only compatible within the series. Important: VL2 and VL2N have different locking mechanisms!

Technical specifications:
Material: Nickel plated brass
Hose size compatibility: 13/10mm (ID 3/8 OD 1/2)
Overall length: 61mm
Max. diameter: 21mm
Fitting inner diameter: 9mm

Extent of delivery:
1x Koolance quick release coupling 13/10mm (ID 3/8 OD 1/2)  coupling 90 degrees (high flow) – VL3N

Important note regarding use of the connectors:
To ensure a tight seal between coupling and plug the units are designed for a very tight fit. When repeatedly plugging the connectors in and out, this may lead to roughening of the O-ring or even tearing of the gasket. Hence the gaskets should always be kept moist when plugging the connection in or out! A torn gasket is not covered by the warranty but is rather caused by incorrect use of the unit. Spare O-rings can be ordered with the item number 95002.

Please note: Not entirely leak-free (meaning that after separation 1-2 drops may spill).

Please note: Should you use different versions, such as VL3 to VL2 or VL3N to VL3, you may damage your O-rings, resulting in a leaky connection. Please also be careful to align the plug and coupling when inserting to avoid damage to the O-rings of the plug. If you damage your O-rings by improper handling it is not covered by the warranty! Spare seal rings can be found here.
