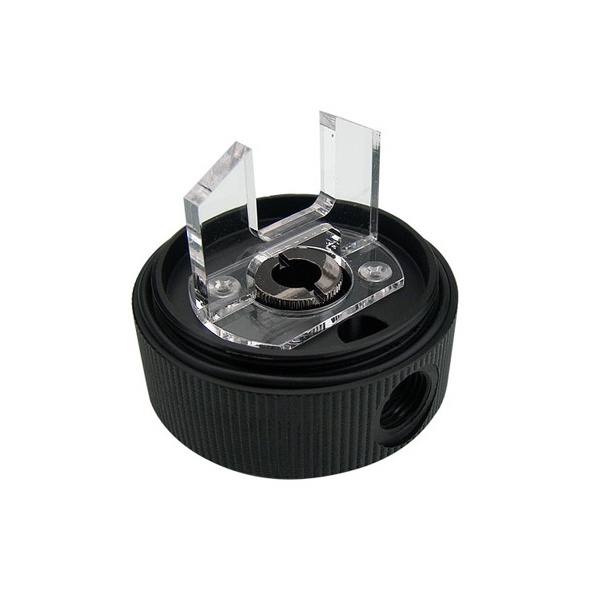

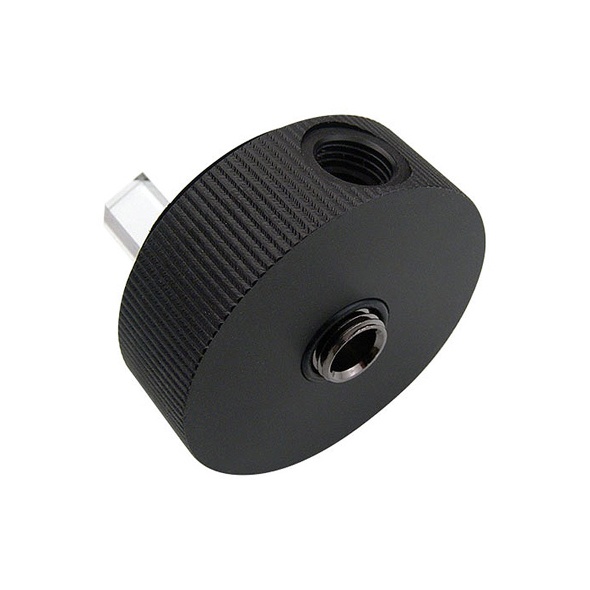

Coupling piece between the Koolance reservoir / tubes and the PMP-300 pump (Item.No. 49088).
No products found
The coupling provides two important elements and functions:
1: The optimal connection to the pump must be ensured. The G1/4 thread on the pump inlet allows a hollow screw to be used for connection when used through the reservoir bottom to couple pump and reservoir. A gasket at the bottom ensures an optimal seal.

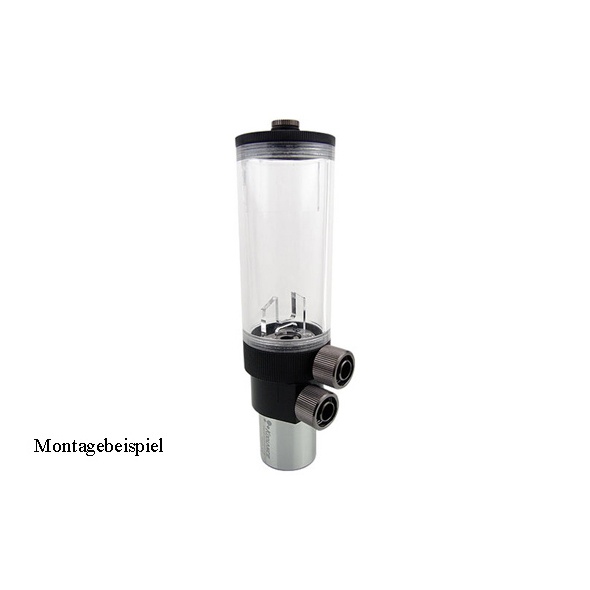

2: The connection to the reservoir must be ensured. This is achieved by using the well-known principle of standard bottom pieces. This principle was used, only the connection threads were changed. Now only one G1/4 thread is implemented as an inlet. The connection piece is also shipped including a small fin for reduction of vortexing inside of the tube.
Technical specifications:
Material: Acetal body, nickel plated brass screw cap
Length: 20mm
Diameter; 58mm
Extent of delivery:
Koolance Pump Reservoir Base for the PMP-300
Removable acrylic fin
