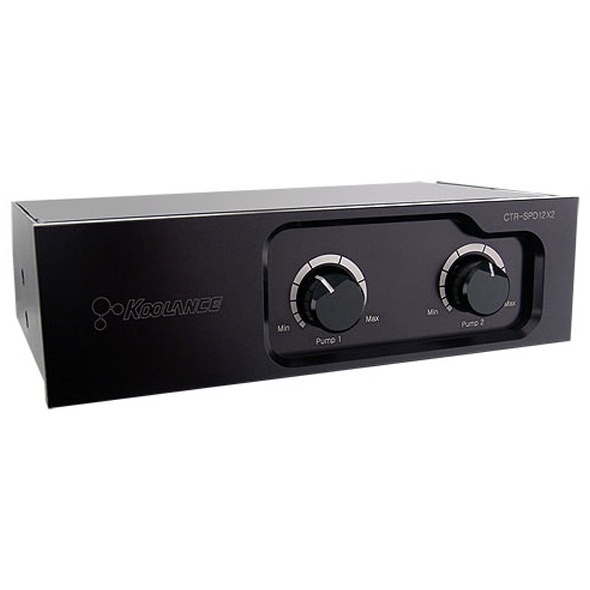

Koolance CTR-SPD12X2 Dual 12V Pump Controller
This is a controller for installation in the 5.25 drive bay for control of 1 or 2 12V DC pumps.
Many controllers are available for individual fans, but when trying to adjust the speed of a pump things get much more difficult. With this unit this is no problem: it can handle up to 25W per channel, which is plenty for most pumps on the water cooling market.
- SKU: 70201
- MPN: CTR-SPD12X2
- EAN: 8295969072096
- Warranty: 12 Months
This is a controller for installation in the 5.25 drive bay for control of 1 or 2 12V DC pumps.
Many controllers are available for individual fans, but when trying to adjust the speed of a pump things get much more difficult. With this unit this is no problem: it can handle up to 25W per channel, which is plenty for most pumps on the water cooling market.
Featured products
No products found
Details

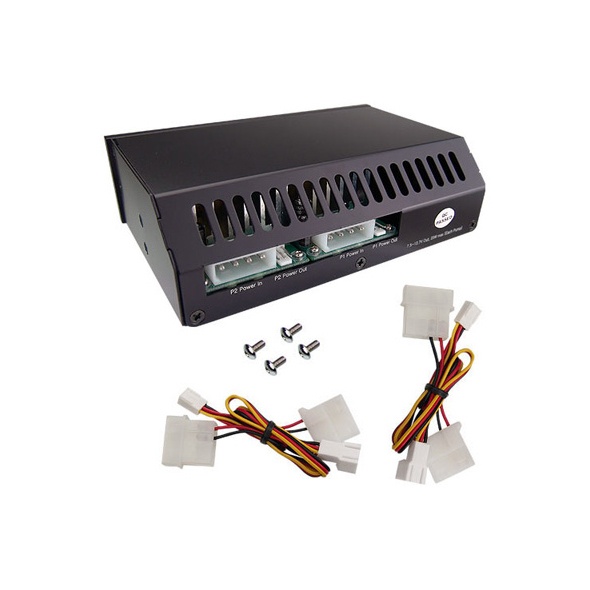

The controller draws power directly from the PCs PSU via a 4-Pin Molex plug. A 3-Pin connector on the controller and the included adaptor allow pumps with a 4-Pin Molex connector as well as fans with a 3-Pin connector to be connected. Voltage and hence speed adjustments are made via the turning knobs in the front connected to a potentiometer. For mounting self-adhesive Velcro strips as well as mounting screws are included.
Technical specifications:
Material: Aluminium enclosure
Colour: Black
Dimensions (LxWxH): 145 x 99 x 41mm
Control range: 7.5 – 12.7V DC
Channel power output: Max. 25W
Power connector: 2x 4-Pin Molex
Connector pump/fan: 2x 3-Pin
Extent of delivery:
1x Koolance CTR-SPD12X2 Dual 12V Pump Controller
2x 3Pin to 4Pin pump adaptor
