The Koolance pump / fan controller with safety shut-down functionality.

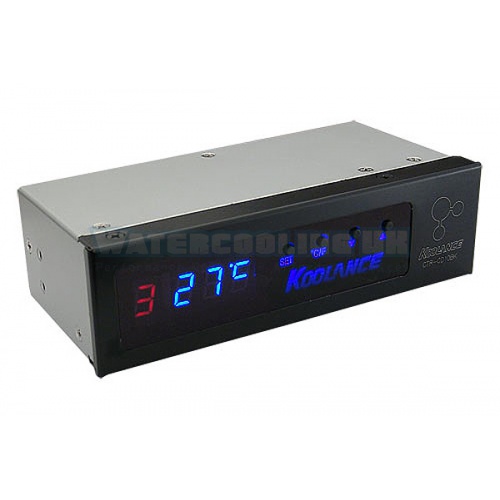

This controller unir is designed for installation in a 5,25 bay. It is available in silver and black and can hence be used in the vast majority of cases and fits in perfectly! The display is lit blue and designed to look great and to be handy. 4 small, almost flush buttons, are also integrated into the front for controls and adjustments. Both design and quality of manufacturing are excellent, as always on products by Koolance!
The Koolance pump / fan controller with safety shut-down functionality.
This controller unir is designed for installation in a 5,25 bay. It is available in silver and black and can hence be used in the vast majority of cases and fits in perfectly! The display is lit blue and designed to look great and to be handy. 4 small, almost flush buttons, are also integrated into the front for controls a...
The Koolance pump / fan controller with safety shut-down functionality.
This controller unir is designed for installation in a 5,25 bay. It is available in silver and black and can hence be used in the vast majority of cases and fits in perfectly! The display is lit blue and designed to look great and to be handy. 4 small, almost flush buttons, are also integrated into the front for controls a...
No products found
The technical side allows many adjustments. The main function is the fan speed adjustment according to the temperatures measured by the three included temperature sensors. The speed can be adjusted in 10 steps according to the temperature. The highest and full level of fan speed and temperature will shut down your PC to protect it from damage.

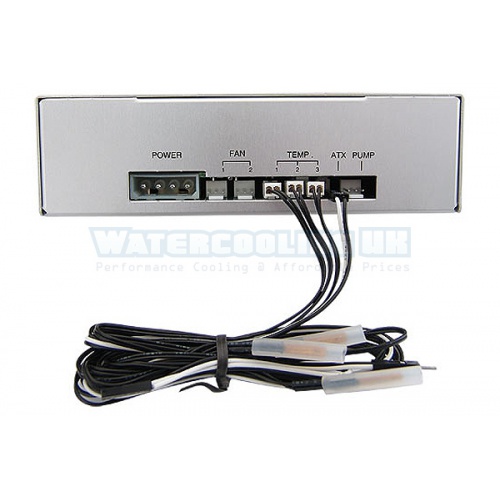

The required cables for an emergency shut-down functionality are also included! Two of the 3-Pin connectors can provide up to 2A of current and hence even allow the connection multiple, not so powerful, fans. The third connector can even be used to control a pump as it can provide up to 3A.
This control unit is used in many Koolance kits, is highly reliable and offers maximum safety for your PC.
Technical specifications:
Material: Aluminium
Colour: Black
Dimensions (LxHxW): 150 x 42 x 720mm
Power connection: 4-Pin Molex 12V DC
Fan connector type: 3-Pin
Fan current: max. 2A
Pump connector type: 3-Pin
Pump current: max. 3A
Sensor cable length: 80cm
Extent of delivery:
1x Koolance CTR-CD10BK pump & fan controller black
3x Sensors
1x Power interruption cable
1x Adaptor 3Pin to 4Pin
Mounting material
