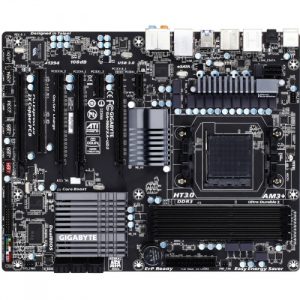

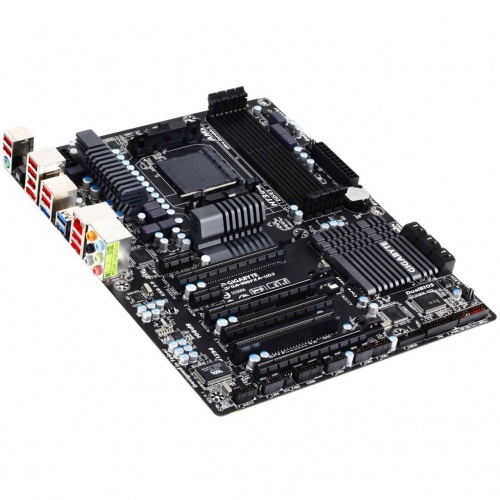

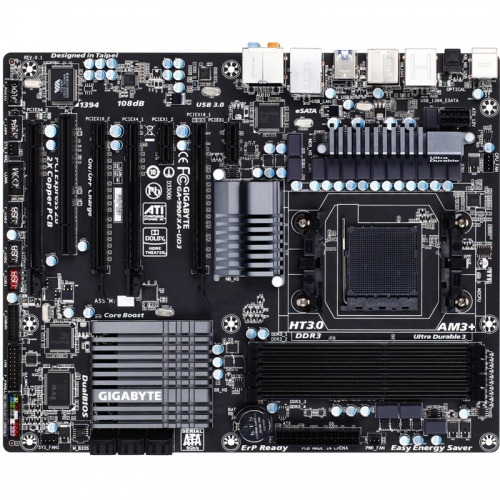

Gigabyte GA-990FXA-UD3, AMD 990FX Motherboard - Socket AM3

For this reason, the 990FX is ideal for multi-VGA configurations. Compared with the 890FX are not just combinations of several AMD cards (= Crossfire) is possible, but now also the use of multiple Nvidia cards (SLI =). The UD3 combines up to two AMD or Nvidia graphics cards, including four PCIe x16 slots are available. In addition, the 990FX has a higher compatibility and is fully applicable to AM3 and AM3 + CPUs.

The UD3 has the black design of high-end motherboards from Gigabyte. With the variety of connections and number of which continues the extensive features list. This ranges from the modern USB 3.0, SATA and eSATA 6G 6G includes of course many more like USB 2.0 and various audio connections.

Notes: To support new CPUs is necessary if a BIOS update. Through overclocking, and operation of the components outside of the specifications will void the warranty.

Technical details:
Format: ATX (305 x 244 mm)
Color: black
Chipset: AMD 990FX / SB950
Socket: AM3 + / AM3 (for FX, Phenom II and Athlon II processors)
RAM: 4x DDR3 (up to 2,000 MHz)
Dual-Channel
Slots:
4x PCIe x16
Directions: 16/16/4/4
Compatible Multi-VGA configurations: 2-way CrossFire, 2-Way SLI
2x PCIe x1
1x PCI (2.0)
Internal connections:
6x SATA 6G
1x USB 3.0
3x USB 2.0
1x Firewire
1x 4-pin fan
3x 3-pin fan
Power / reset / LED / Front panel audio
External ports:
2x USB 3.0
8x USB 2.0
2x eSATA 6G
1x Firewire
1x Gigabit LAN
6x audio (7.1, ALC 889)
1x S / PDIF optical
1x PS / 2 keyboard / mouse
Power supply:
1x 24-pin ATX
1x 8-pin EPS
Compatibility: Windows XP, Vista, 7
Features:
Bulldozers ready
for AM3 + and AM3 CPUs
SLI and Crossfire
Modern Ports: USB 3.0, SATA 6G, eSATA6G
Ultra Durable design with durable components
Multiple OC-equipment
