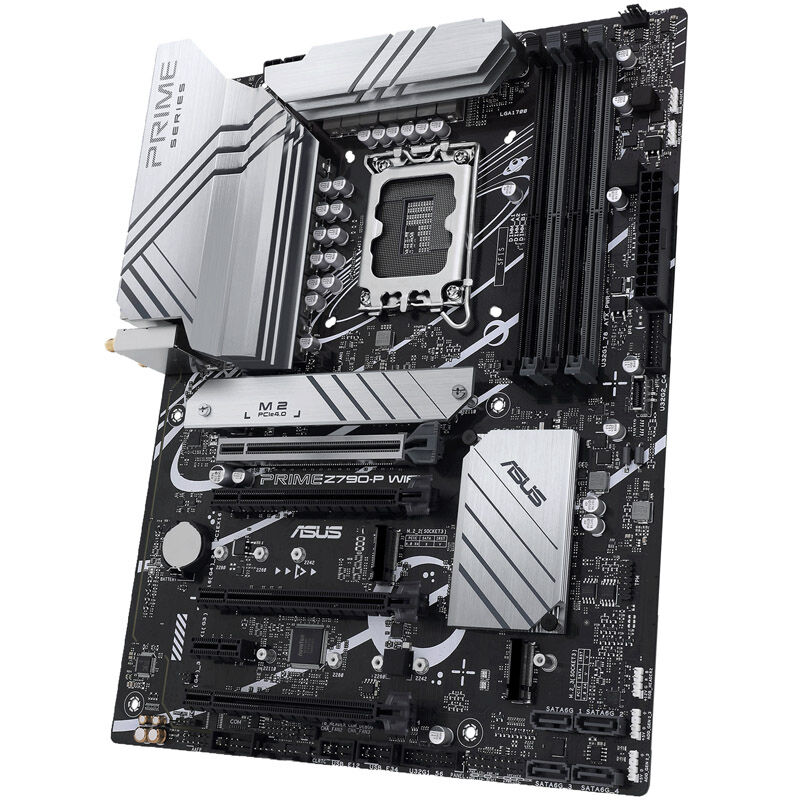

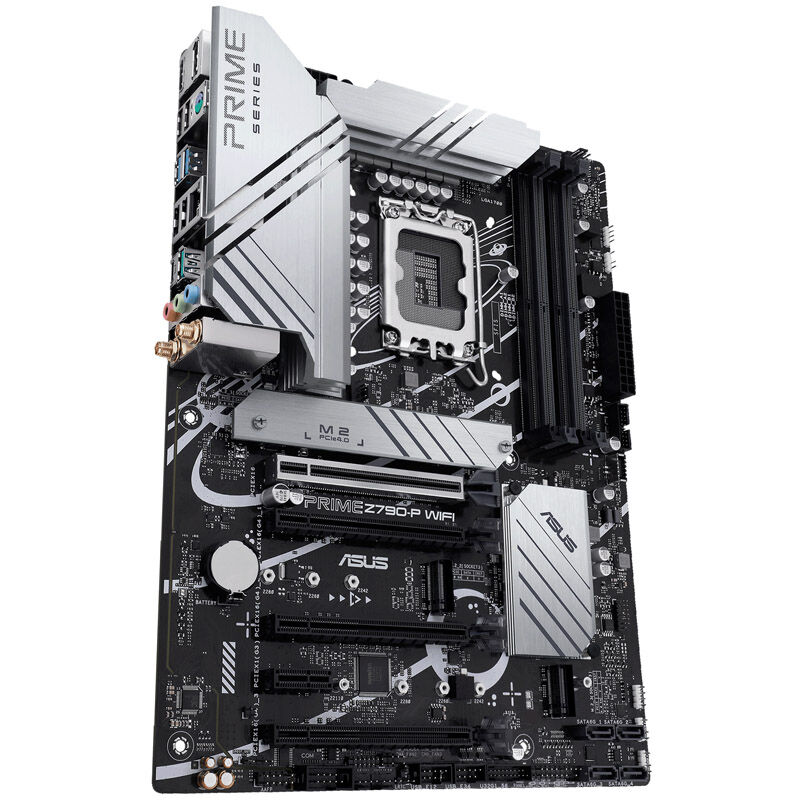

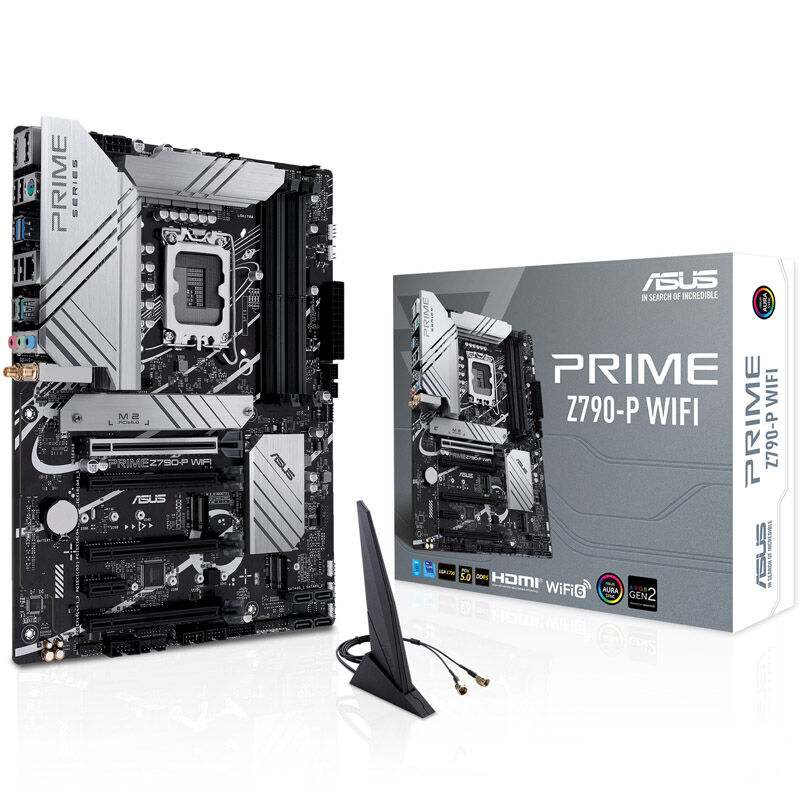

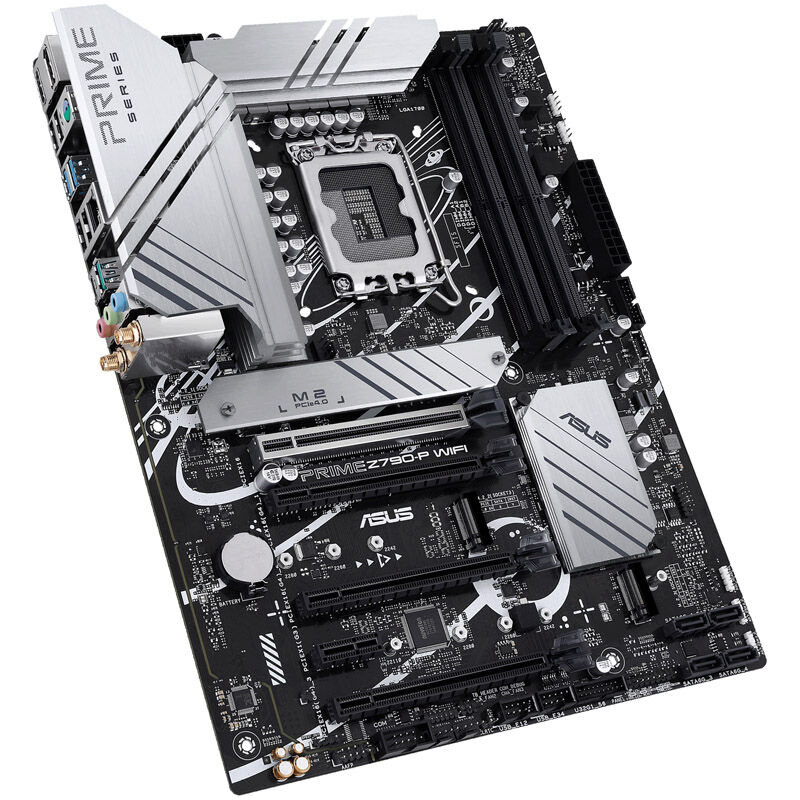

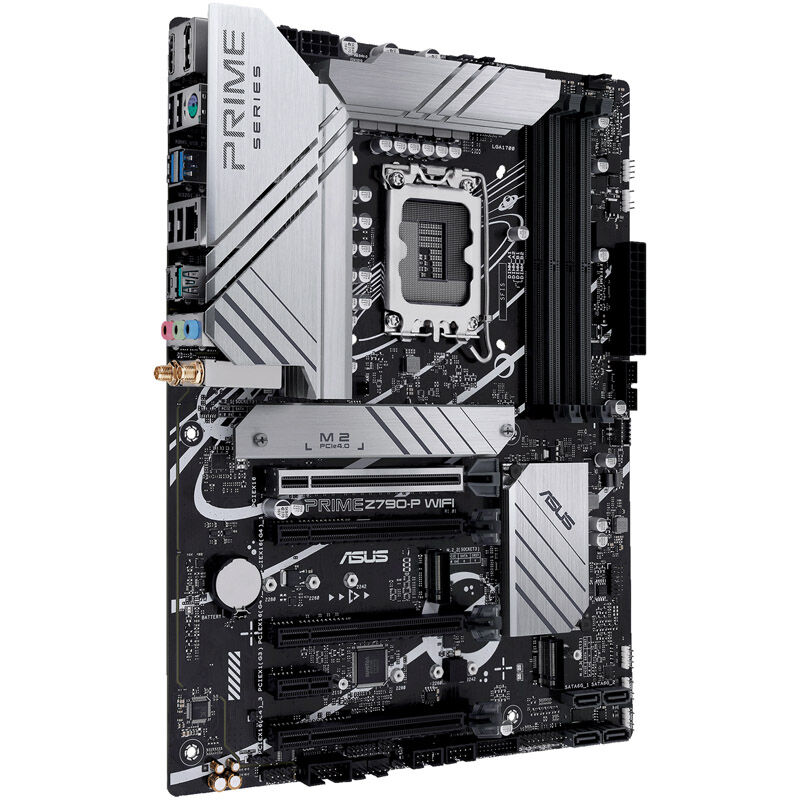

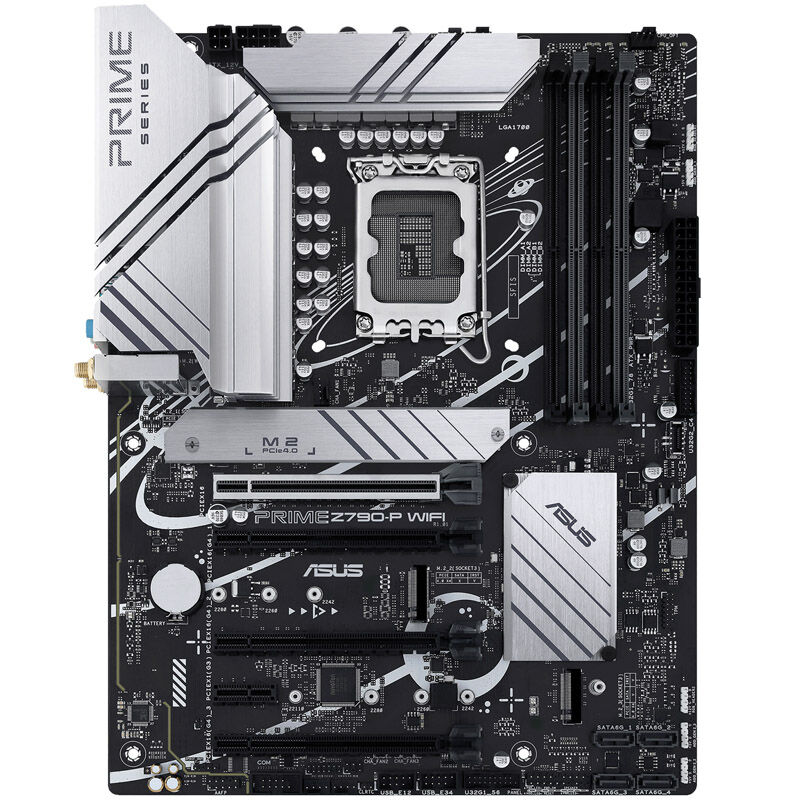

ASUS Prime Z790-P WiFi, Intel Z790 motherboard - Socket 1700, DDR5

– DDR5 memory up to 5,600 MHz, using RAM-OC up to 7,000 MHz
– 3x M.2 slots, including 3x PCIe 4.0
– USB on the I/O panel: 4x USB 2.0 / 2x USB 3.0 Type A / 1x USB 3.1 Type A and 1x USB 3.2 Type C
– A total of 6 connections for fans and pumps

The ATX motherboard ASUS PRIME Z790-P WIFI with Intel Z790 chipset in detail
The ATX motherboard ASUS PRIME Z790-P WIFI is an ATX motherboard with the high-end chipset Intel Z790 and the LGA 1700 socket. The motherboard is suitable for desktop processors of the 12th, 13th and 14th generation Intel Core CPUs, codename: Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,000 MHz.

Note: This motherboard supports RAM with the DDR5 standard. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible performance of the processor, it is recommended to regularly carry out BIOS updates for the mainboard. This is particularly true for motherboards that may have been delivered by the manufacturer with an early BIOS version.

Our King Mod Service will be happy to carry out a BIOS update to the latest version in advance:
Add BIOS update service to cart now
Please note that this may delay shipping preparation by 1 to 4 working days!

More information about Intel Alder Lake and Raptor Lake as well as the 12th, 13th and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a glance

Technical details:
Form factor:
– ATX (305x234mm)
– Chipset:
– Intel Z790
– Base:
– LGA 1700 (for Intel CPUs of the 12th, 13th and 14th core generations)
– R.A.M:
– 4x DDR5 (5,600 MHz, up to 7,000 MHz via OC)
– Dual channel
– Max 128GB
– Slots (physical):
– 1x PCIe 5.0 x16
– 3x PCIe 4.0 x16 (electrical x4)
– 1x PCIe 3.0 x1
– Internal connections:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
– 1x M.2 (PCIe 4.0 x4 / SATA 6G, 2242-22110, chipset)
– 1x USB-C (one header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (two headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (two headers, max. 480 Mbit/s)
– 1x Thunderbolt connector
– 1x Front Panel Audio Connector
– 1x system panel header
– 1x Clear CMOS header
– 1x COM port header
– 1x TPM Module Connector (14+1 pin)
– 1x S/PDIF header
– Fan header:
– 2x CPU fan (4-pin)
– 1x pump (4-pin)
– 3x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 2x 4-pin RGB (12 V)

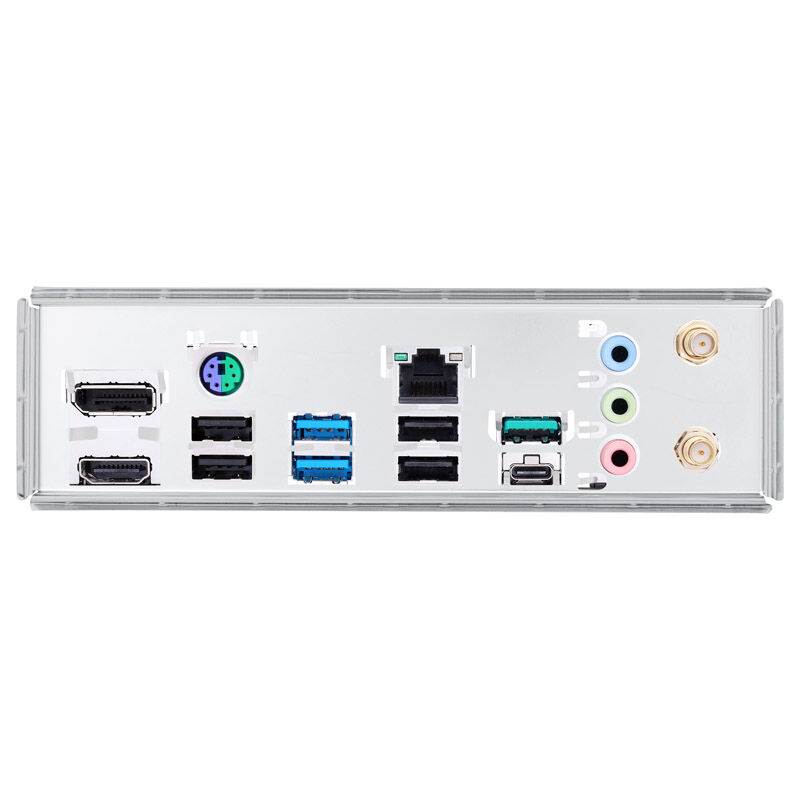

– External connections:
– 1x PS/2 for keyboard or mouse
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x RJ-45 (Realtek 2.5 Gb, max. 2.5 Gbit/s)
– 1x WLAN antenna connection (WLAN 802.11 ax, Bluetooth 5.2)
– 3x 3.5 mm jack
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin 12V
– 1x 4-pin 12V
