The system is based on a disk pack with 21 copper pipes from the factory and pressed stainless steel flanges. On both sides of the plate pack are Delrinterminals that seal with a seal against the stainless steel flanges and are bolted to these. In the Delrin terminals are recessed for the connecting thread from the thread and have a round pocket. In this case, a connection adapter can be connected to two radiators mounted without the hassle of hose connections to directly flush aneinader. Having determined the orientation of the radiators with each other, the coolant flow through your side next to each other radiators are connected in series, horizontally stacked radiators are traversed in parallel.
In addition, the system can grow indefinitely in length. For this purpose, via optional modules connect the Delrin disc packs are connected together.
Radiators of all lengths using the same Delrin terminals, only the sides and fins are different packages. Accordingly can also be converted by acquisition of a radiator components. Here they all have a width of 146 mm and fit perfectly into 5 1 / 4 bays. The height of the radiators in standard configuration (ie without pump module) is 63.5 mm and the length is 44 mm longer than the respective fans (eg 3x 120 mm = 360 +44 = 404 mm).
The connections are generally in G1 / 4 and run all the connections from our shop can be used.
The system is based on a disk pack with 21 copper pipes from the factory and pressed stainless steel flanges. On both sides of the plate pack are Delrinterminals that seal with a seal against the stainless steel flanges and are bolted to these. In the Delrin terminals are recessed for the connecting thread from the thread and have a round pocket. In this case, a connection adapter can be con...
The system is based on a disk pack with 21 copper pipes from the factory and pressed stainless steel flanges. On both sides of the plate pack are Delrinterminals that seal with a seal against the stainless steel flanges and are bolted to these. In the Delrin terminals are recessed for the connecting thread from the thread and have a round pocket. In this case, a connection adapter can be con...
The modularity airplex system is a fully modular radiator system for cooling water and competence and know-how reflects the ten year history of Aqua Computer.
The most important properties of modularity airplex system at a glance:
– Completely modular system
– Extremely high cooling performance
– Very compact – shorter than most other radiators with the same equipment and fan only 146mm wide
– Expandable to unlimited size in all dimensions
– No soldering residues, since there are no solder
– To be completely disassembled and cleaned if necessary completely
– Systems with multiple circuits in a radiator possible
– Optimal flow / pipe parallel paths
– No painting, optimum heat transfer
– Pump with reservoir modules available
– Many colors available for the side panels (stainless steel, brushed aluminum, red, blue)
– At low fan speed blades optimized with optimal structure and excellent passive cooling
– No base metals are in contact with the coolant, only copper and stainless steel
– CNC machined components made of Delrin and stainless steel parts
– Perfect guarantee the highest accuracy of the individual assembly components
– Threaded riveted to the fan mounting
– Large range of accessories (expansion tank, pump modules, feet, filters, sensors, …)
– Approved for pressures up to 0.8 bar

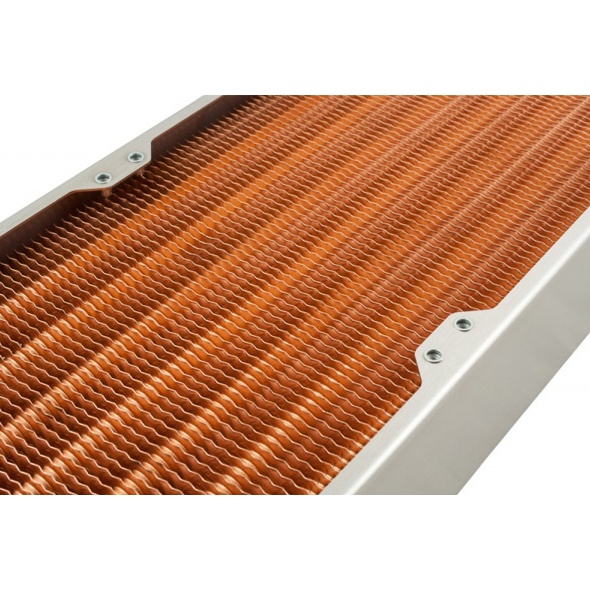

– Optional copper fins for maximum performance in minimal space
For the first time with the system modularity airplex also possible to operate two separate cooling circuits with a radiator. In the corresponding radiator, the cooling surface is mapped approximately in the ratio 70:30 to the primary or the secondary circuit. Thus, for very platzparend a two-circuit system to realize, for example, to cool heat sensitive hard drives separately from the CPU and graphics card. The two circuits are completely sealed against each other, a mixing of the cooling medium is excluded.

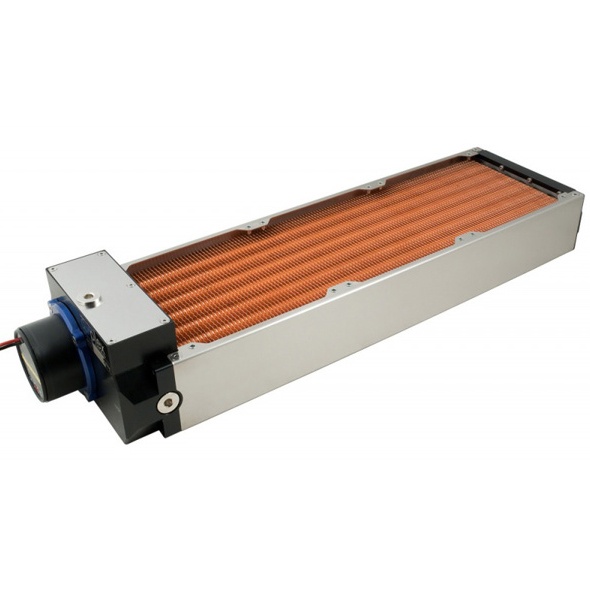

With the optional fitting of a pump module can be implemented in an extremely compact and easy to install water cooling. When offered the radiators with the pump and pump module are integrated directly into the reservoir Delrinterminal of the radiator, also depending on the type, USB fan controller with temperature measurement and water optional flow sensor and / or water filters.
Particularly noteworthy here is the Compact 600 pump module in the 12 volt version: This is the proven ceramic storage of aqua computer equipped, enabling a whisper-quiet operation and a variety of monitoring and control options by the pump control with built-in USB interface. The installation of a Durchlfussensors and a filter is already prepared and can be performed easily and quickly.
Delivery:
A radiator with reservoir and pump, ready for installation
