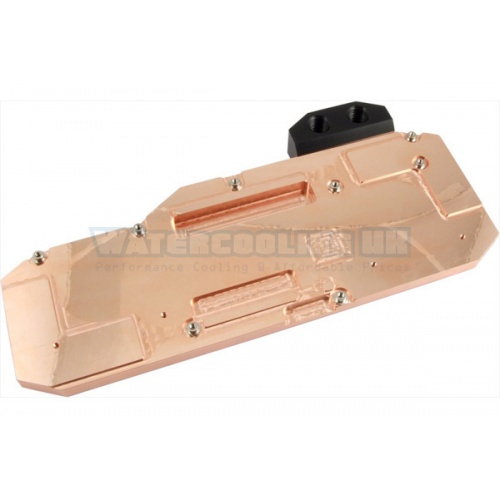

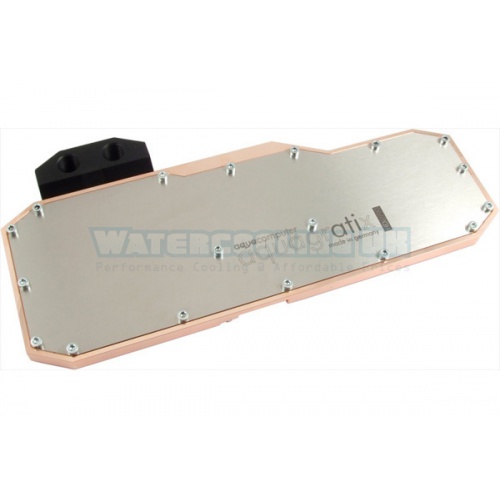

Combined GPU / RAM / VRM-cooler for graphics cards of the ATI / AMD HD 6990 with 2x 2048 MB (Antilles GPU) reference design.
This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler.
The aquagratix for HD 6990 has been developed based on our nvidia GTX 460/470/480 cooler and in the flow and the cooling capacity from the previous series aquagratix improved. It was the microstructure of the GPU, increasing the channel depth increases for higher flow rate of 30%. The copper base has now a strength of about 9 mm.
Combined GPU / RAM / VRM-cooler for graphics cards of the ATI / AMD HD 6990 with 2x 2048 MB (Antilles GPU) reference design. This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler. The aquagratix for HD 6990 has been developed based on our nvidia GTX 460/470/480 cooler and in the flow and the cooling capacity from the previous serie...
Combined GPU / RAM / VRM-cooler for graphics cards of the ATI / AMD HD 6990 with 2x 2048 MB (Antilles GPU) reference design. This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler. The aquagratix for HD 6990 has been developed based on our nvidia GTX 460/470/480 cooler and in the flow and the cooling capacity from the previous serie...
No products found
The cooling channel was here in the field of voltage converters out what absoulte necessary, especially for overclocking project is.
All mounting threads are equipped with spacers, wherein the graphics card can thus practically not forgiven and the assembly is easy. The contact areas for the GPU and RAM are polished for optimal contact. Included is a high-end thermal pad area for the voltage regulator.
The cooler is equipped with the aquagraFX for GTX 480 and GTX 470 known port terminal made of Delrin. This is fixed from the side with 3 screws and provides the ability to screw terminals on both sides. Corresponding to two Tighten locking are included. The connecting threads are executed in G1 / 4. The terminal can be connected for Crossfire mode share against twinConnect direct connection sets (Art. 17 110 or 17 117 not included).
Materials:
Base copper
Stainless steel lid
Connection Terminal Delrin
Delivery:
Cooler without connections (G1 / 4)
Mounting hardware incl heat pad
two locking screws
