120mm Complete Set Eheim Plexi S. 775,1155,1156,1366,2011

High-end modding kit, convincing the quality Eheim pump in practical design Plexi reservoir in combination with the new Phobya Ultra Cooling CPU cooler and the powerful Alpha Cool radiator. Easy installation, since the radiator is mounted on a 120mm case fan.

Product Features: no conversion on the PC – very quiet pump – quickly assembled
With these features, the set reached a high value, and durability.

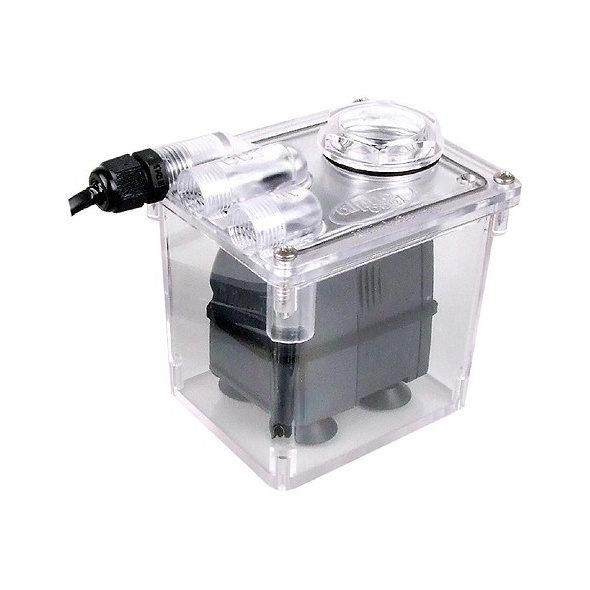

Pump container:
The Eheim pumps are known for their long and error-free service life, is through the assembly in the container ensures that the submersible pump is always supplied with water. In addition, rarely are the large filling (G1Zoll) filled quickly and easily. The pumps then begins to suck, and it can be easily refilled, until the whole system is vented. The tank, you can (vibration insulation) on the floor of her enclosure and fasten the Velcro pad. The power cord of the pump, for example be a free slot back out of the PC, as all the Euro plug (230V) is very flat.

CPU cooler:
The CPU cooler Phobya UC-1 is a complete rewrite from the house in which the patented Micro Phobya return channel technology was further wrapped. Thus achieved the top radiator cooling performance even on quad and hexa-cores. The cooler is the current No. 1 of the CPU water cooler, and even suggests the Aqua Computer XT Kryos (previously # 1) by a whopping 0.9 K [cited 06/14/2012 Source: Hardwaremax]

Radiator:
Many years of experience, the NexXxoS radiator series. Cool, and more refined look (all black) have a very good combination. The NexXxoS radiators are renowned for their good quality and strong cooling.

Fan:
The Yate Loon fan for many years a well-known in the water sector. So do the also used here. 1350 rpm / min at 76m ³ capacity to offer a very balanced combination, and that with only 28 (dBA). The fan can also be turned down via the supplied adapter cable to 7V Ultra-silent operation.

Hose / connections / Coolant:
To connect the components is the flexible PVC tubing and the robust Anschraubtüllen used. This allows a very quick and easy installation even for inexperienced newcomers to the water cooling. After assembly, the system can be operated via the included pre-mixture. The AT-Protect are many years of reliable use and ensures optimum component protection and excellent heat transfer.

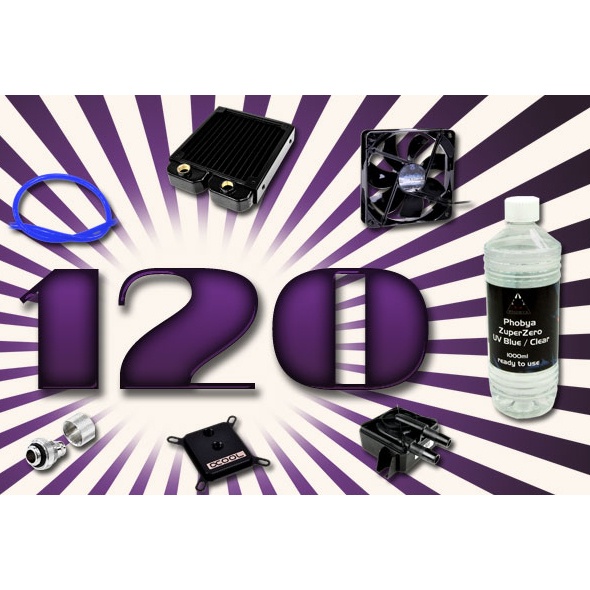

Specifications and delivery:
1x Alphacool Eheim 600 Station II 230 including Velcro pad for the pump mounting
1x CPU Cooler Phobya UC-1 LT Intel 775,1155,1156,1366,2011 – Black Edition with thermal grease
1x Alphacool Xtreme I 120 Radiator Rev.2 NexXxos
1x 120mm Yate Loon D12SL-12 connector
1x 4pin adapter (12V) on 3 pin Molex (7V)
3m PVC tube 10.3 / 7.5 mm Flexible
1x pre-mixed AT-Protect-Plus 500ml
11/8mm 6x (8×1, 5mm) screw-M 1/4

EVERYTHING is included in the set that is needed for the construction and operation of water cooling.

Note: If you have other components such as radiator, pump, fan or other CPU cooler would have used, so please contact us by email, then we will make you an individual offer.
