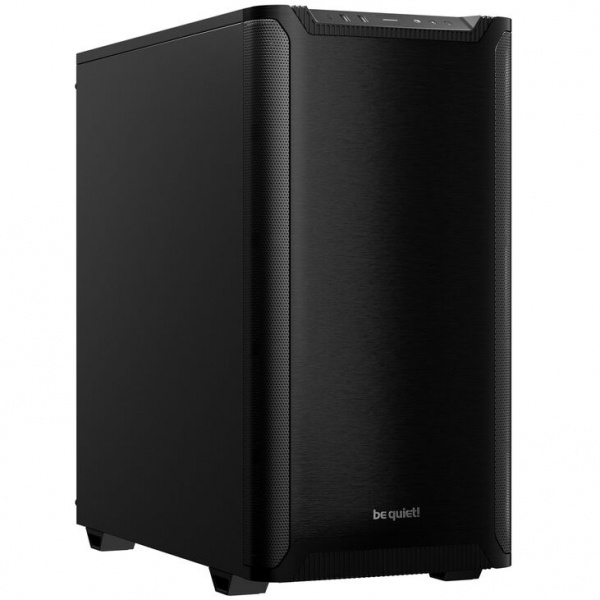

be quiet! Pure Base 501 PC case, Midi-Tower, ATX - black [BG073]

With the Pure Base 501, silent specialist be quiet! is expanding its range of cases to include an affordable midi tower with pre-installed sound insulation and optimized airflow. The case is suitable for installing radiators up to 360 mm long, is equipped with two quiet case fans ex works and offers space for powerful hardware and numerous drives.

- Simple midi tower from be quiet! in black
- Suitable for radiators up to 360 millimeters
- Pre-installed noise insulation on the side panel
- Including two 140-millimeter Pure Wings 3 fans
- Conveniently placed channels for easy cable routing
- Up to 2x 3.5-inch and 5x 2.5-inch drives

be quiet! Pure Base 501: Stylish, functional and quiet
The Pure Base 501 is a compact midi tower which is designed for the quietest possible operation thanks to its simple design and pre-installed sound insulation. It also offers enough space for your hardware and supports the installation of multiple radiators at the same time.

The case offers excellent options for powerful but quiet cooling solutions. Three 120mm or two 140mm fans can be installed on the front, there is space for two 140mm or 120mm models in the lid and a 140mm or 120mm fan can also be installed on the back.

The Pure Base 501 comes with two pre-installed 140mm Pure Wings 3 fans. One on the front and one on the back of the case. The Pure Base 501 offers space for CPU coolers up to 178mm high.

The installation of custom and all-in-one water cooling systems has also been considered. The front is suitable for a 360 or 280 radiator, while a 240 millimeter heat exchanger can be accommodated in the lid and a 140 or 120 model on the rear wall.

Sophisticated design with high functionality
In addition to 180 millimeter long power supplies, two 3.5-inch drives and a 2.5-inch drive can be accommodated in a modular drive cage under the power supply cover. The decoupled installation reduces vibrations and enables quiet operation.

Two 2.5-inch drives can be installed on the SSD panel between the mainboard tray and the front, and two further 2.5-inch SSDs can be installed on the SSD bracket on the back of the MB tray. A maximum length of 368 millimeters is provided for graphics cards.

The be quiet! Pure Base 501 offers a smooth and minimalist look. The I/O panel of the midi tower is located on the top of the front cover and has a power button, two USB 3.0 Type-A sockets, a USB 3.1 Type-C socket and a combined headphone and microphone input.

Technical details
- Color
- Main color
- Black
- Dimensions / measurements
- Length / depth
- 450 mm
- Width
- 231 mm
- Height
- 463 mm
- Weight
- 6.7 kg
- Display
- Display included
- No
- Case
- Case type
- Midi-Tower
- Mainboard support
- Compatible mainboard formats
- ATX, Micro-ATX, Mini-ITX
- Max. mainboard form factor
- ATX
- Internal dimensions
- Max. CPU cooler height
- 190 mm
- Max. graphics card length
- 368 mm
- Max. PSU length / depth
- 200 mm
- Power supply
- Power supply included
- No
- Power supply format
- ATX
- Power supply position
- Rear bottom
- Fan support
- Fan 120 mm
- 6
- Fan 140 mm
- 5
- Drive bays
- 2.5 inch internal
- 5
- 3.5 inch external
- 2
- Hot-swap drive bays
- No
