WCUK Spec Alphacool NexXxos 240mm, D5 Apex, Core Kit Bundle [54F-439-B90]

WCUK SPEC: Alphacool NexXxos 240mm, D5 Apex, Core Kit Bundle

This premium cooling bundle combines top-tier performance with sleek aesthetics, featuring the Alphacool Core 1 LT CPU water block, NexXxoS ST25 240mm full copper radiator, and Eisbecher Aurora D5 reservoir with VPP Apex pump. The Core 1 LT ensures efficient heat transfer with its high-flow design and optimized cold plate, while the slim yet powerful ST25 radiator maximizes thermal dissipation in compact builds.

Completing the setup, the Eisbecher Aurora D5 offers high-flow performance with whisper-quiet operation, enhanced by a crystal-clear glass reservoir and integrated aRGB lighting—delivering a seamless balance of efficiency, durability, and striking visuals for any custom water cooling loop.

Alphacool Core 1 LT Spec:
The functional and elegant design is a central element of the Core series from Alphacool. Its focus is on cooling performance at a fair price. The rounded corners add the perfect touch to the overall look. The Core 1 LT is available in both non-illuminated and transparent aRGB versions.

Compatibility:
AMD: AM4 / AM5
Intel: LGA 1700 / LGA 1851

Technical Specifications:
Dimensions (L x W x H) 71.80 x 71.80 x 28.05mm
Material cooler nickel plated copper
Material cooler top acetal
Material threads acetal
Threads 2x G1/4“
Fin thickness 0.4mm
Fin distance 0.4mm
Pressure tested 0.8 bar
Max working temperature 60°C
Weight 250g
Color black

Alphacool NexXxoS ST25 Spec:
The ST25 slim radiator offer the ideal liquid cooling solution for Mini-PCs or SSF (Small Form Factor) systems. Due to the extremely flat design, the NexXxoS ST25 radiators are ideal for such small cases and due to the reduced size, they give you the extra space you need to work in the case.

Technical Specifications:
LxWxH: 272 x 120 x 25,5 mm
Material: copper
Material outer housing: steel
Fins per Inch: 15
Threads: 2 x G1/4“
Thread size fan mounting: M3
Fan size: 120 mm
Fan slots: 2 single sided / 4 double sided

Alphacool Eisbecher Aurora D5 Glass Spec:
Capacity: 360 ml
Material: Pump top & cover acetal
Material: tube glass
Material: framing bar aluminium
Connection: 1x G1/4“ inner thread IN / 4x G1/4“ inner thread OUT
Maximum working temperature: 60 °C
Pressure tested: 0,8 Bar
Quantity of digital aRGB LEDs: 12
Power: digital aRGB LEDs 5V
Power connector: digital aRGB LEDs 3-Pin JST + 3-Pin 5V
Dimensions (L x W x H): 242 x 77 x 77mm
Weight: 765 g
Color black

Technical Specifications VPP D5 Apex
Material: pump synthetic material
Material: pump cover aluminium
Material: axle ceramics
Connections: 4-Pin PWM | SATA
Rotational speed: 2500 - 4500 RPM
Cable lenght: 4-Pin PWM - 48cm | SATA - 48cm
Operating voltage: 8-13V DC / 14W IP32
Starting voltage: 12V DC
Maximum pumping head: 4,25 m
Max flow: 340 l/h
Max working temperature: 60 °C
Net weight: 276 g
Dimensions (L x W x H): 65 x 65 x 41mm
Color: black

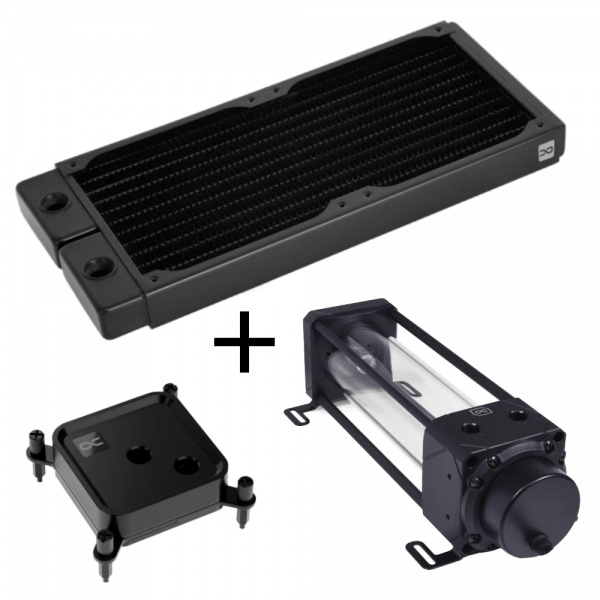

Pack includes:
1x Alphacool Core 1 LT Black CPU Waterblock INTEL / AMD
1x Alphacool NexXxoS ST25 Full Copper 240mm radiator
1x Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm incl. Alphacool VPP Apex D5
