Stealkey Customs SK-UNI 80 DDC - acrylic [SW10148]

- Addressable RGB stripe included for an individual look
- Versatile options thanks to 10x G1/4-inch connections
- Standard 120mm fan mounting holes for easy installation (horizontal only)
- Powerful DDC PWM pump pre-assembled
- for 120 x 360 mm fan mounts

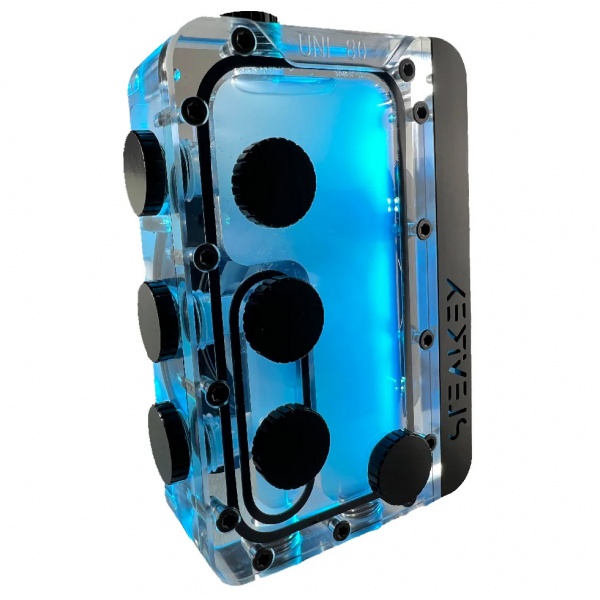

The SK 80 DDC pump/reservoir combo in detail
The SK-UNI 80 DDC reservoir pump combo combines the compact but elegant reservoir from Stealkey with the powerful DDC pump from Xylem. Not only does this save space, but it also looks great.

Addressable RGB lighting
The UNI 80 offers a gorgeous look with its excellent addressable RGB lighting. In particular, the backlit lettering “STEALKEY” is a special highlight and helps to visually enhance your gaming PC.

Easy construction
With the standard 120mm fan mounting holes, mounting the SK 120D is very easy. The included screws ensure a robust, secure hold in the housing. There are ten G1/4-inch connectors available so you can make your setup as flexible as possible.

Technical details
- Dimensions: 80 x 120 x 31 mm (W x H x D)
- Color: Transparent
- Material: acrylic glass, plastic
- Connections:
- 10x G1/4 inch
- 1x D-RGB connection 3-pin 5V digital LED header (pin assignment: +5V, D, blocked, ground)
- Xylem LOWARA DDC 4.2 PWM pump:
- Model: DDC4.2P
- Dimensions: 92 x 70 x 39 mm (L x W x H)
- Motor type: Electronic spherical motor
- Rated voltage: 12V DC
- Starting current: up to 4.5 A (short-term)
- Power consumption: 18W
- Head at 12 V: 5.2 m
- Max. delivery rate: 1,000 L/h
- Pumped media: water, water-glycol mixtures
- Max. system temperature: 60° C
- System pressure: max. 1.5 bar
- Connections: 2x 3/8 inch hose nozzle
- Connections: 4-pin Molex, 4-pin PWM
- Scope of delivery:
- 1x UNI 80
- 8x mounting screws including 4x nuts
- 1x DDC PWM pump
- 1x spacer mounting strips
- 8x G1/4 inch plugs
