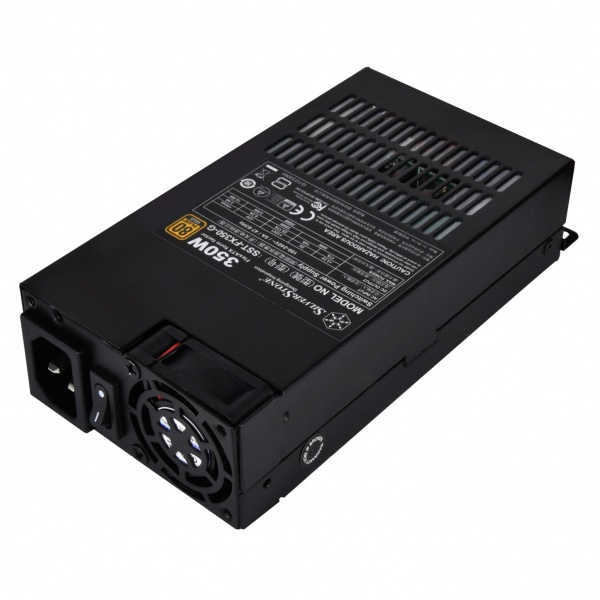

SilverStone SST-FX350-G Flex Series 80 PLUS Gold - 350 watts [SST-FX350-G]

Thanks to the Flex-ATX format, the SilverStone SST-FX350-G is primarily designed for mini cases (in Flex-ATX format) and offers high performance with minimal dimensions. It comes with a quiet 40-millimeter fan with an optimized fan curve. This makes the SST-FX350-G a good solution for almost all users who want to combine high performance with low noise.

The power on the 12-volt line, which is important for graphics cards, also delivers enough power with a full 350 watts (29.17 amps). Important protective circuits are on board with overload protection (OPP), overvoltage protection (OVP) and short-circuit protection (SCP).

A total of one PCIe 6-pin power connector is available. In addition, there is a 20+4-pin, a 4+4-pin, three SATA, two 4-pin Molex and a floppy connector available for the mainboard and peripherals. But the SST-FX350-G is also in the top league when it comes to efficiency, achieving an efficiency of up to 90 percent, which is why it has been awarded an 80 PLUS Gold certification.

Technical details:
- Dimensions: 81.5 x 40.5 x 150mm (W x H x D)
- Fan: 40 mm (min. 20 dB(A))
- Form factor: Flex ATX
- Weight: 960 g
- Average service life: 100,000 h
- Efficiency: 80 PLUS Gold
- Power: 350 watts
- +3.3V: 17 A
- +5V: 14 A
- 3.3+5V: 90 W
- +12V: 29.17 A (350 W)
- -12V: 0.3 A (3.6 W)
- +5Vsb: 2.5 A
- Connections:
- 1x 20+4-pin (350 mm)
- 1x 4+4-pin (ATX12V/EPS12V, 450 mm)
- 1x 6-pin PCIe (350 mm)
- 3x SATA(350 + 150 + 150 mm)
- 2x 4-pin Molex (350 + 150 mm)
- 1x Floppy
- 1x 2-pin for additional 5 V peripherals (300 mm)
- Protection circuits: OVP / SCP / OPP
