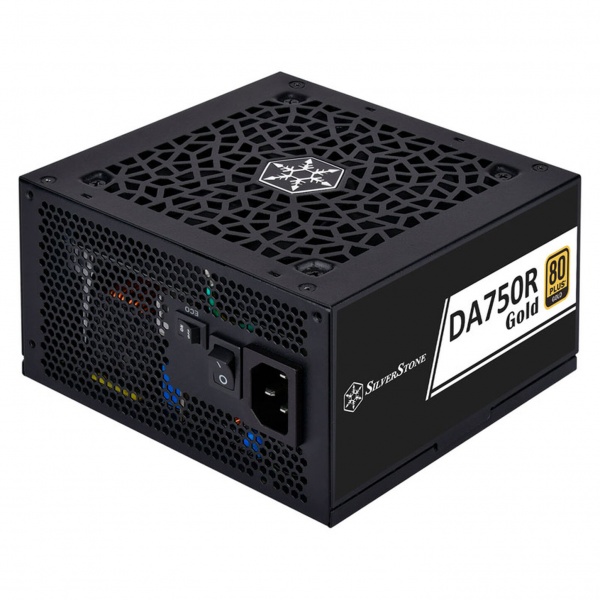

SilverStone SST-DA750R-GMA 80 PLUS Gold, modular, ATX 3.0 - 750 watts [SST-DA750R-GMA]

- Powerful ATX 3.0 power supply from SilverStone
- 750 watts nominal power for components from the high-end segment
- With 80 PLUS Gold certification
- Fully modular cable management with black cables
- 12V-2x6-12VHPWR connection for demanding graphics cards
- Powerful ATX power supply with 80 PLUS Gold efficiency

The SilverStone SST-DA750R-GMA ATX 3.0 power supply, with its 750 watts total output power, is suitable for gaming PCs that have components from the absolute high-end segment installed and rely on powerful but demanding graphics cards.

The power supply is extremely efficient, which also results from the use of high-quality electrical components. This is noticeable, among other things, in the fact that high-quality Japanese electrolytic capacitors are installed.

Thanks to the ATX form factor, the power supply is ideal for most cases. Despite its extreme performance, the 120mm hybrid fan keeps the SilverStone SST-DA750R-GMA at cool operating temperatures even after extensive use.

Technical details:
- Dimensions: 150 x 86 x 140 mm (W x H x D)
- Weight: 2.08 kg
- Color: Black
- Fan: 120 mm (automatic control, fluid dynamic bearing)
- Standard: ATX 3.0
- Efficiency (minimum): 90 / 92 / 89 % @ 20 / 50 / 100 % load at 230 V, 80 Plus Gold
- Form factor: ATX
- Power: 750 W
- +3.3V: 20 A
- +5V: 20 A
- +12V: 62.5 A
- -12V: 0.3 A
- +5Vsb: 3 A
- Connections:
- 1x 24-pin mainboard
- 2x 8 / 4-pin PCIe/CPU
- 4x 8 / 6-pin PCIe/CPU
- 1x 12V-2x6 PCIe 5.0 12VHPWR connector
- 8x SATA/peripherals
- Protection:
- Overcurrent protection
- Overload protection
- Overvoltage protection
- Overtemperature protection
- Short circuit protection
- Undervoltage protection
- Average service life: 100,000 hours
- Scope of delivery:
- 1x power supply
- 1x 24-pin cable (600 mm)
- 1x 12V-2x6 PCIe 5.0 12VHPWR cable (550 mm)
- 2x 8-pin / 4+4-pin CPU cable (700 mm)
- 2x 8-pin / 6+2-pin PCIe cable (2 connectors, 500+150 mm)
- 2x SATA cable (4 connectors, 500+150+150+150 mm)
- 1x floppy/Molex cable (1 or 3 connectors, 500+150+150+150 mm)
