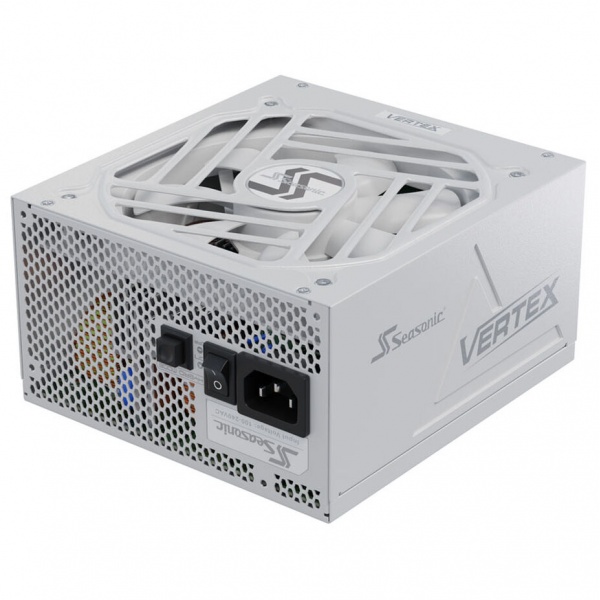

Seasonic Vertex GX White 80 PLUS Gold power supply, modular, ATX 3.0, PCIe 5.0 - 1000 Watt [VERTEX GX-1000 WHITE]

- Powerful ATX 3.0 power supply from Seasonic
- 1,000 watts nominal power for components from the high-end segment
- With 80 PLUS Gold certification
- Fully modular cable management with black cables
- Three 6+2-pin PCIe connectors for graphics cards
- 12+4-pin PCIe 5.0 12VHPWR connection for demanding graphics cards
- Extremely powerful ATX power supply with 80 PLUS Gold efficiency

The Seasonic Vertex GX 80 ATX 3.0 power supply, with its 1,000 watts total output power, is suitable for gaming PCs that have components from the absolute high-end segment installed and rely on powerful and demanding graphics cards.

Impressive performance data
The power supply is extremely efficient, which also results from the use of high-quality electrical components. This is noticeable, among other things, in the fact that high-quality Japanese electrolytic capacitors are installed. The 80 PLUS Gold certified power supply achieves an efficiency of up to 92% at a load of 50%.

Thanks to the ATX form factor, the power supply is ideal for most cases. Despite the extreme performance, the 135 mm fan keeps the Seasonic Vertex GX 80 at cool operating temperatures even after extensive use. At low loads of up to 30%, the fan remains off and the power supply is therefore silent.

Extensive connectivity for power-hungry high-end hardware
The Seasonic Vertex GX 80 also impresses with its extensive connectivity. In addition to a 24-pin connector and two 8-pin connectors for the mainboard and your CPU, there are three 6+2-pin PCIe connectors for graphics cards and a 12VHPWR PCIe 5.0 connector with cable for high-end graphics cards. Five 6-pin connectors and a selection of cables are available for drives and other components.

Thanks to modular cable management, you only use the cables that you actually need for your build. This allows you to build particularly tidy setups without unnecessary cables.

Technical details:
- Dimensions: 150 x 86 x 160 mm (W x H x D)
- Color: white
- Fan: 135 mm (automatic control, hydrodynamic bearing)
- Standard: ATX 3.0
- Efficiency (minimum):
- ~ 90 / 92 / 86 % @ 20 / 50 / 100 % load at 230 V / 50 Hz, 80 PLUS Gold
- Form factor: ATX
- Power: 1,000 W
- +3.3 V: 25 A
- +5 V: 25 A
- +3.3 V and +5 V: 125 W
- +12 V: 996 W, 83 A
- -12 V: 0.3 A, 3.6 W
- +5 Vsb: 3 A, 15 W
- Connections (rear):
- 1x 24-pin mainboard
- 5x 6+2-pin PCIe/CPU
- 1x 12+4-pin PCIe 5.0 12VHPWR
- 5x SATA/Molex
- Protection:
- Overcurrent protection
- Overload protection
- Overvoltage protection
- Overtemperature protection
- Short circuit protection
- Undervoltage protection
- Scope of delivery:
- 1x Seasonic Vertex GX 80
- 1x 20+4-pin cable (610 mm)
- 1x 12+4-pin PCIe 5.0 12VHPWR cable (750 mm)
- 2x 4+4-pin CPU cable (650 mm)
- 3x 8-pin / 6+2-pin PCIe cable (750 mm)
- 4x SATA cable (four connectors each, 950 mm)
- 1x SATA cable (two connectors each, 550 mm)
- 1x Molex cable (three connectors each, 690 mm)
