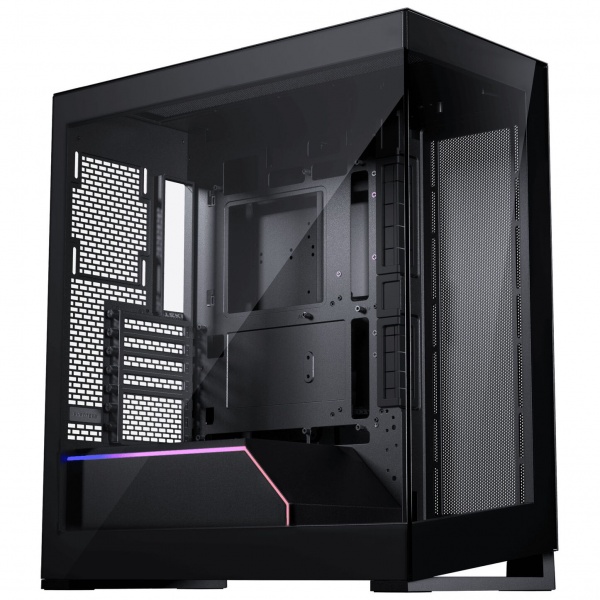

Phanteks NV5 MK2 Midi-Tower, E-ATX case, Tempered Glass, DRGB - black [PH-NV523TG_DBK02]

- Elegant midi tower with excellent cooling performance
- Side panel and front made of tempered glass for a panoramic view of your hardware
- Optimal cooling thanks to space for up to 8x 120 mm fans
- Radiators up to 360 mm possible on the side and lid
- Space for graphics cards up to 440 mm long
- Supports motherboards up to E-ATX
- Back Connect: compatible with ASUS BTF and MSI Project Zero
- Space for massive CPU tower coolers up to 180 mm high
- Integrated D-RGB lighting including built-in controller

Phanteks NV5 MK2: Panoramic view now with Back Connect
With the Phanteks NV5 MK2 you don't have to compromise on the cooling and presentation of your hardware. The left side panel and the seamlessly integrated front are made of tempered glass and offer an excellent panoramic view of your components. The top and right side panel with fine mesh ensure optimal airflow.

The subtle DRGB lighting enhances the look of the case even more and further highlights your hardware.

Optimal airflow for your components
When developing the NV series and in particular the NV5 MK2, Phanteks focused on cooling the components right from the start. The case is very open and designed for uninterrupted airflow. The top and right side panel made of mesh ensure good air exchange. The case base is beveled and, with a maximum distance from the ground of 34 mm, provides enough space to bring fresh air into your case.

Many mounting options for better cooling
The Phanteks NV5 MK2 offers numerous options for installing fans to optimally cool your hardware. There is space for up to eight 120 mm fans, three on the top, three on the side, one on the back and one on the bottom.

In addition, the case supports the installation of up to two 360 mm radiators, one on the top and one on the side. Another 120 mm radiator can be installed on the back.

Plenty of space for your gaming hardware
If you want to use a large motherboard to get the most out of your system, then the NV5 MKII is also the right choice for you. For maximum compatibility, you can easily accommodate E-ATX motherboards. You can also install graphics cards up to 440 mm long and 170 mm wide, as well as CPU coolers up to 180 mm high. The case is also wider for modern, wider GPUs and 12VHPWR cables for greater compatibility. A GPU bracket is also included for additional stability.

The case also offers space for up to four 2.5-inch SSDs and three 3.5-inch HDDs, giving you plenty of storage options for all your data. The 2.5-inch SSDs can be mounted on the back of the motherboard tray and in the PSU cover, while the 3.5-inch HDDs can be housed in a removable cage on the bottom of the case. The modular design makes installation easier and ensures a tidy interior.

Robust construction and well-equipped I/O panel
In addition to the tempered glass panels, the PC case impresses with its construction made entirely of robust steel. The seamless glass panels not only offer an elegant look, but also a clear view of the installed components.

The I/O panel has a power button, HD audio and microphone connection as well as a USB 3.2 Type-C port and two USB 3.0 Type-A ports for faster data transfer. There are also two buttons for controlling the DRGB lighting, one for the mode, the other for the color.

Intelligent cable management
The Phanteks NV5 MK2 offers a sophisticated cable management system that ensures a tidy and neat look. The PSU cover of the case is particularly practical; it can be opened and thus allows easy handling of the cables. The case also supports motherboards with back-connect.

Motherboards with a back-connect design, such as the Project Zero motherboards from MSI or the BTF motherboards from ASUS, have connectors for power supply, data cables and other connections arranged on the back of the motherboard, so you not only have cleaner cable management in your case, but also better ventilation.

Technical details
- Dimensions: 239 x 528 x 477 mm (W x H x D)
- Color: Black
- Material: Steel, tempered glass
- Form factor: E-ATX (up to 280 mm without GPU mount), ATX, Micro-ATX, Mini-ITX
- Total fans possible:
- 3x 120 mm (top)
- 3x 120 mm (side)
- 1x 120 mm (rear)
- 1x 120 mm (bottom)
- Radiator mountings:
- 1x 360 mm (top)
- 1x 360 mm (side)
- 1x 120 mm (rear)
- Radiator dimensions (maximum):
- Cover: 430 x 130 x 62 mm (L x W x H)
- Side: 420 x 130 x 62 mm (L x W x H)
- Rear: 170 x 132 mm (L x W)
- Drive bays: 4x 2.5-inch SSDs, 3x 3.5-inch HDDs
- Power supply: ATX (optional)
- Expansion slots: 7
- I/O panel:
- 1x power button
- 1x USB-C 3.2 Gen 2
- 2x USB 3.0
- 1x microphone jack
- 1x headphone jack
- 1x D-RGB mode button
- 1x D-RGB color button
- Maximum graphics card length: 440 mm
- Maximum graphics card width: 170 mm
- Maximum CPU cooler height: 180 mm
- Maximum power supply length: 230 mm
- Scope of delivery:
- 1x NV5 MK2 case
- 6x cable ties
- 1x GPU bracket
- 22x mainboard/SSD screws
- 4x power supply screws
- 4x knurled screws
- 12x case screws
- 1x Motherboard standoff 1x Stand-off Removal Tool
