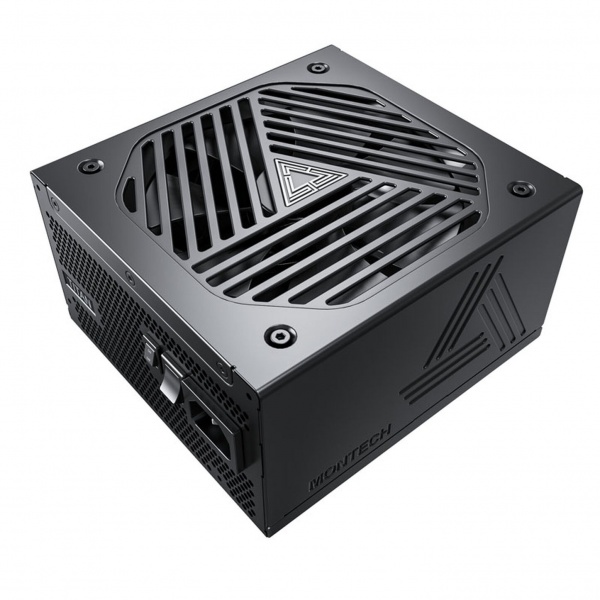

Montech Titan Gold 1200W - 80 PLUS & Cybenetics Gold, modular, PCIe 5.0 - 1200 watts [TIS0126]

- Powerful ATX 3.0 power supply from Montec
- 850 watts nominal power for components from the high-end segment
- With 80 PLUS Gold certification
- Fully modular cable management with black cables
- Five 6+2-pin PCIe connectors for graphics cards
- 12+4-pin PCIe 5.0 12VHPWR connection for demanding graphics cards

Extremely powerful ATX power supply with 80 PLUS Gold efficiency
The ATX 3.0 power supply Montech Titan Gold 1200W, with its 1,200 watts total output power, is suitable for gaming PCs that have components from the absolute high-end segment installed and rely on powerful and demanding graphics cards.

Impressive performance data
The power supply is extremely efficient, which also results from the use of high-quality electrical components. This is noticeable, among other things, in the fact that high-quality Japanese electrolytic capacitors are installed. The 80 PLUS Gold certified power supply achieves an average efficiency of up to 90%.

Thanks to the ATX form factor, the power supply is ideal for most cases. Despite the extreme performance, the 135 mm fan keeps the Montech Titan Gold 1200W at cool operating temperatures even after extensive use. At low loads of up to 40%, the fan remains off and the power supply is therefore silent.

Extensive connectivity for power-hungry high-end hardware
The Montech Titan Gold 1200W also impresses with its extensive connectivity. In addition to a 24-pin connector and two 8-pin connectors for the mainboard and your CPU, there are five 6+2-pin PCIe connectors for graphics cards and a 12VHPWR PCIe 5.0 connector including cable for high-end graphics cards. Four 6-pin connectors and a selection of cables are available for drives and other components.

Thanks to modular cable management, you only use the cables that you actually need for your build. This allows you to build particularly tidy setups without unnecessary cables.

Technical details:
- Dimensions: 150 x 86 x 160 mm (W x H x D)
- Color: Black
- Fan: 135 mm (automatic control, hydrodynamic bearing)
- Standard: ATX 3.0
- Efficiency (minimum):
- average 90%, 80 PLUS Gold
- Form factor: ATX
- Power: 1,200 W
- +3.3 V: 22 A
- +5 V: 22 A
- +3.3 V and +5 V: 120 W
- +12 V: 1,200 W, 100 A
- -12 V: 0.3 A, 3.6 W
- +5 Vsb: 3 A, 15 W
- Connections (rear):
- 1x 24-pin mainboard
- 4x 6+2-pin PCIe/CPU
- 1x 12+4-pin PCIe 5.0 12VHPWR
- 4x SATA/Molex
- Protection:
- Overcurrent protection
- Overload protection
- Overvoltage protection
- Overtemperature protection
- Short circuit protection
- Undervoltage protection
- Scope of delivery:
- 1x Montech Titan Gold 850W
- 1x 20+4 pin cable
- 1x 12+4 pin PCIe 5.0 12VHPWR cable
- 2x 4+4 pin CPU cable
- 3x 8 pin / 6+2 pin PCIe cable
- 3x SATA cable
- 1x Molex cable
