Lian Li UNI HUB SL-INF Controller, L-Connect 3 - white [12SLIN-CONT3W]

With the UNI HUB INF hub and controller, Lian Li's own ARGB-PWM fans from the UNI FAN SL-INF series can be easily synchronized and controlled. In total, the UNI HUB SL-INF can control 16 fans in four clusters of four fans each, thus providing sufficient expansion options.

Easy control of fan speed and ARGB lighting
The L-Connect 3 software is required for control. This can be easily downloaded from the Lian Li website. In the software, various preset RGB and speed modes can be selected or configured yourself. Alternatively, the RGB and PWM signal can be looped through to the mainboard and controlled directly via it.

Note: The Lian Li L-Connect 3 software for this product is now available for download. You can find out all the details about the new version here.

Technical details
Color: Black (controller), white (cable)

Connections:
- 4x 7-pin combined ARGB-PWM connectors
- 1x 3-pin SM sync connector for ARGB lighting of separate components
- 2x SATA cables (main and sub, maximum input of 29 watts)
- 1x 9-pin USB cable for connection to a 9-pin USB header on the mainboard
- 1x 3-pin 5V ARGB and 4-pin PWM cable connector for connection to the mainboard
- Max. number of fans: 16 UNI FAN SL-INF fans

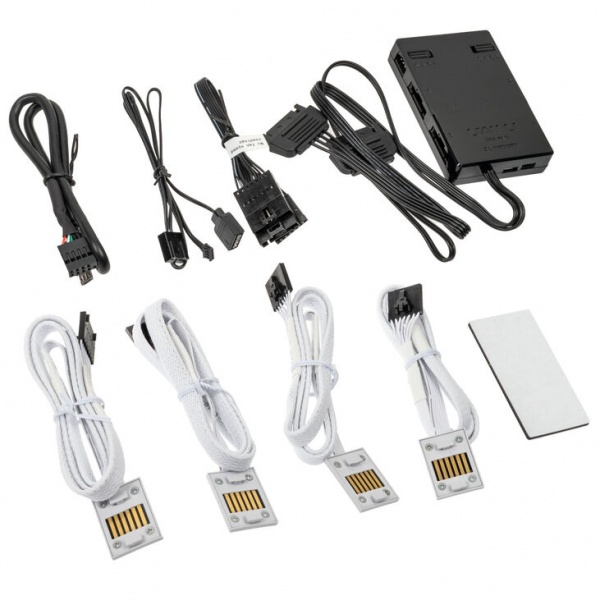

Scope of delivery:
1x Lian Li SL UNI HUB SL-INF controller including connection cable and adhesive pad for attachment
Note: Please use the assembly instructions for proper installation. Incorrect wiring can cause damage to the controller due to excessive voltage.
