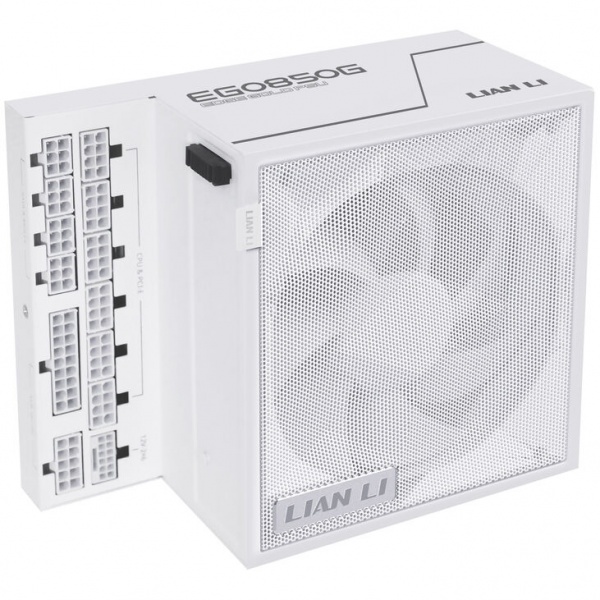

Lian Li EDGE GOLD 850 80 PLUS Gold power supply, PCIe 5.1, ATX 3.1 - 850 Watt, white [EDGE GOLD 850W WHITE]

The Lian Li EDGE GOLD 850 is a modular ATX 3.1 power supply that impresses with its efficient design, a semi-passive fan and maximum compatibility. Perfect for dual-chamber cases, it offers easy cleaning, strong energy efficiency and well-thought-out cable management.

- L-shaped design simplifies cable management for dual-chamber cases
- Strong energy efficiency with gold certification
- Steel case with mesh panel and removable dust filter for easy cleaning
- 120 mm fan with semi-passive mode for quiet operation
- Safe power supply: PCIe 5.1 standard for GPUs with two-tone 12VHPWR
- Extensive protection circuits: OVP, UVP, SCP, OPP, OTP and OCP
- Fully modular, with individually sleeved connection cables and cable combs
- Compatible with the Lian Li EDGE USB HUB
- Revolutionary ATX 3.1 power supply: The Lian Li EDGE GOLD 850 for dual-chamber cases

The EDGE GOLD power supplies from Lian Li follow in the footsteps of the successful EDGE Platinum series. They adopt the tried and tested design and combine high performance with practical handling. The unique L-shaped design makes these power supplies ideal for cases with a dual-chamber design, such as the iconic Lian Li O11 series.

Specifically designed for such PC cases, the EDGE GOLD PSUs are perfect for vertical installation in the second chamber. The design orients the connectors outwards, which makes cable management easier and ensures a clean, tidy build.

Note: The Lian Li EDGE USB and PWM fan hub is not included in this variant, but can be purchased separately.

80 PLUS Gold certification and high-quality electrical components
The EDGE series fully complies with the ATX 3.0 / 3.1 standards and is therefore compatible with the latest components. The EDGE GOLD power supplies have been awarded the 80 PLUS Gold certification, which guarantees high energy efficiency. High-quality industrial EPCOS capacitors from Germany ensure a stable and reliable power supply.

The power supplies are fully modular and feature extra-long braided cables, with pre-installed cable combs for a neat appearance.

Stable, dual-color PCIe 5.1 connector for graphics cards
Lian Li has developed its own 12V 2x6 connectors based on the PCIe 5.1 standard. These offer a safer and more efficient power supply compared to the older 12VHPWR connectors.

The design features soldered connector connections for improved current stability and a gold alloy to prevent short circuits. The connectors also have a dual-color housing so you can see that the connector is securely seated. With an increased material thickness of 0.25 mm, they achieve a lower contact resistance.

The connectors maintain a contact resistance of less than 1.5 mΩ after 50 mating cycles. This is a significant improvement compared to ordinary connectors, which are between 2 and 3 mΩ. This noticeably improves the performance and long-term reliability of the connectors.

Efficient cooling and whisper-quiet operation with mesh, dust filter and semi-passive fan
The steel housing of the power supply is equipped with a large-mesh mesh panel on one side. This open design helps to efficiently dissipate heat. A removable dust filter also makes cleaning easier and ensures that the interior is clean. The 120 mm PWM fan works particularly quietly thanks to the semi-passive Zero-DB mode and even switches off completely under low load to ensure whisper-quiet operation.

Note: Only use the cables supplied. Using other, incompatible internal power supply cables can cause damage that is not covered by the manufacturer's warranty.

Technical Details
- Color
- Main Color
- White
- Dimensions / Measurements
- Length / Depth
- 182mm
- Width
- 86mm
- Height
- 150mm
- Fan Specifications
- Fan Size
- 120mm
- Power Supply
- Power Supply Format
- NanoPSU
- ATX Standard
- ATX 3.1
- 12V Layout
- Single Rail
- Modular PSU
- Yes
- Modular Type
- Fully Modular
- Protection Circuits
- OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Over- and Undervoltage Protection), - SCP (Short Circuit Protection), UVP (Undervoltage Protection)
- Performance Data
- Power
- 850W
- Power +3.3V
- 66W
- Power +5V
- 100W
- Power +3.3V & +5V (combined)
- 120W
- Power +12V Rail(s)
- 850W
- Power -12V
- 3.6W
- Power +5Vsb
- 15 W
