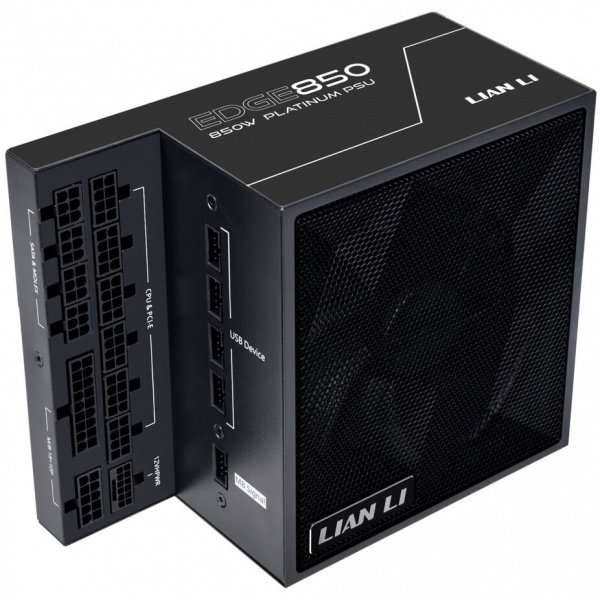

Lian Li EDGE EG0850 80 PLUS Platinum power supply, PCIe 5.1, ATX 3.1 - 850 Watt, black [EG0850 BLACK]

- L-shaped design simplifies cable management for dual-chamber cases
- Integrated USB hub with four headers for additional USB devices
- Outstanding efficiency with platinum certification
- Steel case with mesh panel and 120 mm fan for quiet and cool operation
- Secure power supply thanks to PCIe 5.1 standard for graphics cards with 12VHPWR
- Extensive protection circuits: OVP, UVP, SCP, OPP, OTP and OCP
- Fully modular cable management

Revolutionary ATX 3.1 power supply: The Lian Li EDGE EG0850 for dual-chamber cases
The EDGE power supplies from Lian Li set new standards in power supply design and combine high performance with easy handling. The unique L-shaped design and the integrated USB hub make these power supplies ideal for cases with a dual-chamber design, such as the iconic Lian Li O11 series. Specially designed for such PC cases, the EDGE PSUs are perfect for vertical installation in the second chamber. The design directs the connectors outwards, which makes cable management easier and ensures a clean, tidy build.

Two-in-one: Integrated USB hub for UNI fans, Strimer Plus cables and RGB controllers
The Lian Li EDGE power supplies integrate four 9-pin internal USB extension ports directly into the power supply. This makes connecting additional USB devices such as UNI fans, Strimer Plus cables and RGB controllers much easier. The hub enables the simultaneous operation of up to four devices. Connected accessories remain functional even when the PC is turned off - provided the power supply is switched on. Each port delivers a nominal current of 500 mA.

There are two ways to connect the USB hub: either via an internal USB header on the mainboard or alternatively with the included USB-A cable to the rear IO panel.

ATX 3.0 and 3.1 compliant and platinum certified
The EDGE series fully complies with the ATX 3.0 / 3.1 standards and is therefore compatible with the latest components. Thanks to the 80 PLUS, Cybenetics and PPLP platinum certifications, the EDGE series offers excellent energy efficiency, reduces power consumption and heat generation while delivering reliable and stable performance.

Stable, two-color PCIe 5.1 connector for graphics cards
Lian Li has developed its own 12V 2x6 connectors based on the PCIe 5.1 standard. These offer a safer and more efficient power supply compared to the older 12VHPWR connectors.

The design features soldered connectors for improved current stability and a gold alloy to prevent short circuits. The connectors also have a two-tone housing so you can see that the connector is securely in place. With an increased material thickness of 0.25 mm, they achieve lower contact resistance. The connectors maintain a contact resistance of less than 1.5 mΩ after 50 mating cycles. This is a significant improvement compared to ordinary connectors, which are between 2 and 3 mΩ. This noticeably improves the performance and long-term reliability of the connectors.

Industrial-grade capacitors
The Lian Li EDGE power supplies use high-quality EPCOS capacitors from Germany. These are compact and particularly robust, which means they are better protected against high temperatures and harsh environments.

Thanks to the LLC topology and active PFC (Power Factor Correction), the EDGE power supply works more efficiently, generates less heat and delivers a cleaner and more reliable power supply. For you, this means: less heat, longer lifespan and more stable performance for your hardware!

Cool and quiet thanks to the mesh panel and powerful 120 mm fan
The steel housing of the power supply is equipped with a large mesh panel on one side. This open design helps to efficiently dissipate heat. This means that the integrated 120 mm fan runs at a low speed, which ensures quiet operation and still cool operating temperatures.

Braided cables for a neat look
The power supply is equipped with high-quality braided cables. The easily adjustable cable combs make cable management much easier, giving your dual-chamber build an aesthetic and organized look. This not only improves the look, but also makes maintenance easier and optimizes airflow for better cooling.

The braided SATA power cables offer you flexible options when building your gaming PC. The Y-splitter cable enables a flexible and neat connection of drives and controllers. A second 300mm SATA cable with 15mm spacing between connectors allows for easy connection of multiple devices while ensuring clean and organized cabling.

Note: Only use the cables provided. Using other, incompatible internal power supply cables may cause damage that is not covered by the manufacturer's warranty.

Technical details
- Dimensions: 150 x 86 x 182 mm (W x H x D)
- Material: steel
- Color: black
- Fan: 120 mm PWM (FDB / max. 25.96 db(A) at 2,000 rpm)
- Standard: ATX 3.0 / 3.1
- Efficiency: 92.41% at 50% load and 230 volt input voltage (80 PLUS Platinum / Cybenetics Platinum / PPLP Platinum)
- Form factor: ATX
- Power: 850 W
- +3.3V: 20 A / 66 W
- +5V: 20 A / 100 W
- +3.3V & +5V: 120 W (combined)
- +12V: 70.8 A / 849.6 W (combined)
- -12V: 0.3 A / 3.6 W
- +5Vsb: 3 A / 15 W
- Anschlüsse (modular):
- 1x 20+4-Pin (500 mm)
- 1x 4+4-Pin (550 mm)
- 1x 8-Pin (550 mm)
- 3x 8- / 6+2-Pin PCIe (550 mm)
- 1x 12V-2x6 (550 mm)
- 1x 4x SATA (50 mm - 150 mm - 150 mm - 150 mm)
- 1x 4x SATA (255 mm - 15 mm - 15 mm - 15 mm)
- 1x 4x SATA, Y-Splitter (275 mm - 125 mm)
- 4x 4-Pol Molex (50 mm - 150 mm - 150 mm - 150 mm)
- 1x USB 9-Pin auf USB 9-Pin (350 mm)
- 1x USB 9-pin to Type A (550 mm)
- Protection circuits:
- OVP (overvoltage and undervoltage protection)
- UVP (undervoltage protection)
- SCP (short circuit protection)
- OPP (overload protection)
- OTP (overtemperature protection)
- OCP (overcurrent protection)

Note: This item does not include a PSU Lead like many PSU's these days.
