Lian Li DAN Cases A3-mATX Wood Edition Glass Panel Case, Micro-ATX - Beech Bundle [A3- MATX-WD GLASS WHITE]

WCUK SPEC: Lian Li DAN Cases A3-mATX Wood Edition PC Case, Micro-ATX - Beech Case + Glass Panel Bundle

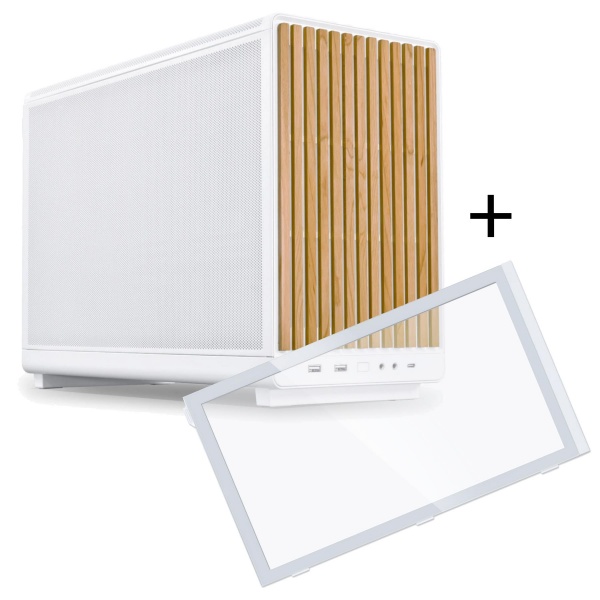

The best of both worlds! Not sure if you prefer the clean white DAN a3 side panel or the stylish Glass Side to showcase your rig ? Why not pick them both up for similar price, saving over £10.00

Lian Li DAN Cases A3-mATX Micro-ATX Case - Beech Spec:
If you are looking for a small form factor case for powerful PC hardware, then it is worth taking a look at the Lian Li DAN Cases A3-mATX. With a capacity of around 26 liters, this Micro-ATX case is compact and takes up little space on your desk. Nevertheless, the mini tower is suitable for high-end PC components and covers their cooling needs.

Flexibility meets performance: The fan and cooling options of the Lian Li DAN Cases A3-mATX
The Lian Li DAN Cases A3-mATX offers space for up to 10 fans in 120 mm format. These are distributed as follows: three on the lid, three on the side, three on the bottom and one on the back. Alternatively, two 140 mm fans can be mounted on the lid and side. With 25 mm thick fans on the bottom of the case, the height of the GPU is limited to 61 mm (3 slots). A maximum height of 165 mm is planned for CPU air coolers.

Lian Li and Daniel Hansen also thought about water cooling when developing the A3-mATX: A radiator can be attached to three places in the case: There is space for a maximum of 360 mm (triple radiator) or 280 mm (dual radiator) on the lid or the side. Here you have to decide on one of the two positions. An additional 240 mm radiator can be installed on the bottom. With the fans mounted below the radiator, even a 360 mm radiator can be installed.

Customizable configuration: The versatile options of the Lian Li DAN Cases A3-mATX
The Lian Li DAN Cases A3-mATX is suitable for a mainboard in the form factor Micro-ATX or Mini-ITX. In contrast to a Mini-ITX case, the PC case with 4 expansion slots offers the option of accommodating a 4-slot high and up to 415 mm long graphics card.

Two 2.5-inch SSDs can be installed on a bracket. A 3.5-inch HDD or another 2.5-inch drive can also be attached to the bottom of the case. For the power supply, you can choose between ATX, SFX-L and SFX. It can be flexibly mounted in the front or on the side to create more space for the graphics card or radiator - depending on your preferences. In general, the smaller the power supply, the more space for the other hardware.

The I/O panel on the front of the Lian Li DAN Cases A3-mATX offers two USB 3.0 Type A, one USB 3.1 Type C, two 3.5 mm jack sockets (mic in/audio out) and a power button for switching on.

Note: The Lian Li DAN Cases A3-mATX has numerous configuration options, but the space in this case is limited. The size and position of the power supply are crucial for choosing the right PC components. We therefore recommend planning carefully in advance using the instructions.

Technical details
- Dimensions: 194 x 321.5 x 443 mm (W x H x D)
- Material: steel, plastic
- Weight: 5 kg
- Volume: 26.3 l
- Color: White Beech
- Form factor: Micro-ATX, Mini-ITX
- Total fans possible:
- Cover: 3x 120 mm / 2x 140 mm
- Side: 3x 120 mm / 2x 140 mm
- Bottom: 3x 120 mm (max. GPU height 3 slots / 61 mm with 25 mm fans)
- Rear: 1x 120 mm
- Radiators possible:
- Cover: 1x 360 mm / 1x 280 mm / 1x 240 mm
- Side: 1x 360 mm / 1x 280 mm / 1x 240 mm
- Bottom: 1x 240 mm / 1x 360 mm (only if fan is mounted under radiator)
- Dust filter: bottom
- Drive bays:
- 2x 2.5 inch (tray)
- 1x 3.5 / 2.5 inch (bottom)
- Power supply: ATX / SFX / SFX-L (optional)
- Expansion slots: 4
- I/O panel:
- 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s, internal connection)
- 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s, internal connection)
- 2x 3.5 mm jack (audio in / out)
- Maximum CPU cooler height: 165
- Maximum graphics card length: 415 mm
- Maximum power supply length: 220 mm

Lian Li DAN Cases A3-mATX White Side Panel Spec:
This Left-Side Tempered Glass Panel features a sleek white frame designed to complement the aesthetic of your Lian Li DAN Cases A3-mATX case. Elevate your PC build with this stylish and durable panel, offering easy compatibility and effortless installation.

Showcase your components in style while adding a touch of sophistication to your setup. Upgrade to this Left-Side Tempered Glass Panel and transform your build into a visual masterpiece.

Specification
- Color: White
- Materials: tempered glass, steel
- Compatibility: Lian Li DAN Cases A3-mATX
