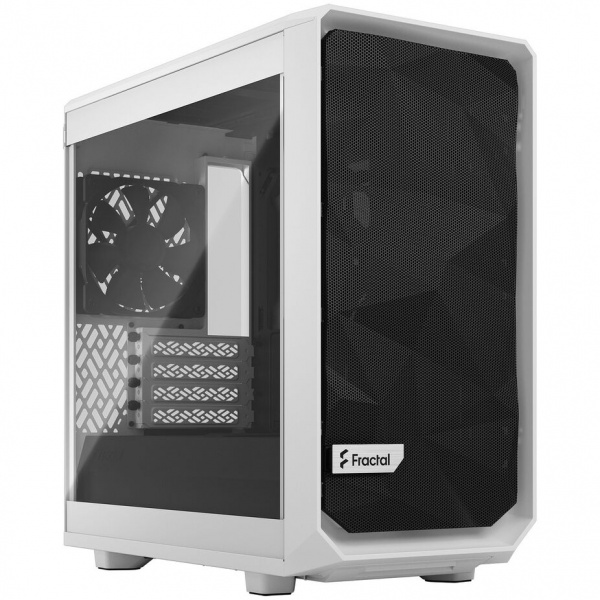

Fractal Design Meshify 2 Mini Micro-ATX Case, Tempered Glass - White [FD-C-MES2M-02]

- High-quality mini tower for motherboards up to Micro-ATX
- Suitable for radiators up to 280 mm
- Space for graphics cards with a length of up to 331 mm and CPU cooler height of up to 167 mm
- Optimal cooling with up to seven fans
- Up to six 2.5 / 3.5 inch drives can be installed
- Fractal Design Meshify 2 Mini: Mini tower with a spacious interior

The Meshify 2 Mini from Fractal Design is a compact mini case that still offers space for a large selection of PC components thanks to its spacious interior and efficient design. The open side panel made of tempered glass allows you to see inside.

Excellent cooling performance
To keep your hardware cool even at high performance, you need a large number of fans or radiators. Despite its small size, up to seven fans can be installed in the case. Up to two 120 mm fans are possible on the bottom and back. The lid offers space for two fans of size 120 or 140 mm. You can also install up to three 120 mm or two 140 mm fans on the front. Two fans are already included in the delivery, one on the back and one on the front.

There is also the option of water cooling if you prefer. One 120 mm radiator can be installed on the bottom and one on the back. Please note that the HDD cage must be removed for installation on the bottom. A maximum of one 240 mm radiator is possible on the lid, and a maximum of one 280 mm on the front. No matter what you choose, whether air cooling or water cooling, your components are guaranteed to be cooled.

Suitable for powerful hardware
Mainboards up to Micro-ATX standard can be installed in the tower. There are four expansion slots available for the graphics card and it should not be longer than 331 mm. With fans on the front, a maximum length of up to 306 mm is recommended.

The height of the CPU cooler must not exceed 167 mm. You must also ensure that the power supply is no longer than 165 mm. If you don't prefer the HDD cage, a length of up to 200 mm is possible.

I/O panel and drives
Two 2.5-inch or 3.5-inch drives can be installed under the power supply cover. You can mount four more 2.5-inch drives behind the mainboard tray, so you definitely have enough space for your programs and games. For peripherals and USB sticks, there is a USB-C port, two USB-A ports and a 3.5 mm jack connection on the I/O panel.

Technical details
- Dimensions: 205 x 406 x 396 mm (W x H x D)
- Weight: 6.62 kg
- Color: white / black
- Material: steel, tempered glass
- Form factor: Micro-ATX, Mini-ITX, DTX, Mini-DTX
- Drive:
- 2x 3.5 / 2.5 inches
- 4x 2.5 inches (two brackets included)
- Radiator mountings:
- Cover: max. 240 mm
- Front: max. 280 / 240 mm
- Bottom: 1x 120 mm (without HDD cage)
- Rear: 1x 120 mm
- Total number of fans possible:
- Cover: 2x 120 / 2x 140 mm
- Front: 3x 120 / 2x 140 mm (1x Dynamic X2 GP-12 fan included) included)
- Bottom: 1x 120 mm (without HDD cage)
- Rear: 1x 120 mm (1x Dynamic X2 GP-12 fan included)
- Power supply: 1x standard ATX (optional)
- Expansion slot: 4
- I/O panel:
- 1x USB 3.1 Type C (internal connection)
- 2x USB 3.0 Type A (internal connection)
- 1x 3.5 mm jack (4-pin / TRRS, audio in/out)
- Maximum CPU cooler height: 167 mm
- Maximum graphics card length: 331 mm (max. 306 mm with front fans)
- Maximum power supply length: 165 mm (up to 200 mm without HDD cage)
