EK Waterblocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi [3831109836538]

Pay £113.65
with code BLACK15
EK Waterblocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi
EK Waterblocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi
EK Waterblocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi
EK Waterblocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi

Overview

EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi is a cutting-edge addition to the EK® Quantum Line.

Stock, Shipping & Collection Options

  5+ Available Delivery in 2-5 Days
  FREE UK/EU DELIVERY over £500+
  5+ Available for Collection
SKU: EKW-115
MPN: 3831109836538
EAN: 3831109836538
Warranty: 12 Months
£130.63 inc VAT
  • USD $173.63 *

* Currency conversions are based on live rates. All orders are billed in GBP
Check your hardware compatibility here EK Cooling Configurator

Details

It is made to complement the existing EK-Quantum Vector Strix RTX 3080/3090 water blocks and actively cool the backside of a ROG® GeForce RTX™ 3080 and 3090 Strix GPU.

For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

EK Strix RTX 3080 3090 active backplate

EK-Quantum Vector Strix RTX 3080/3090 Active Backplate

The EK-Quantum Vector Strix RTX 3080/3090 Active Backplate comes with a new terminal that replaces the stock terminal arriving with the Vector water block and links the water block and Vector Active backplate into a single unit. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling.

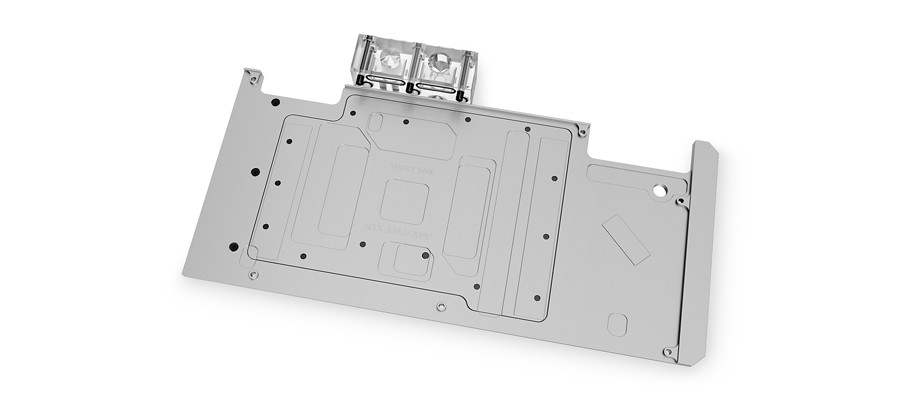

EK Strix RTX 3080 3090 active backplate

The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.

These newly developed active backplates feature a fin array with 8 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer.

The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.

D-RGB lighting on EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB water block

RGB compatibility

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Enclosed:
- EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi
- Necessary mounting screws, nuts, and washers
- 1x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads

Technical Specification:
- Dimensions: (LxHxW) - 281x154x33mm
- D-RGB cable length: 500mm
- D-RGB LED count: 8
D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
