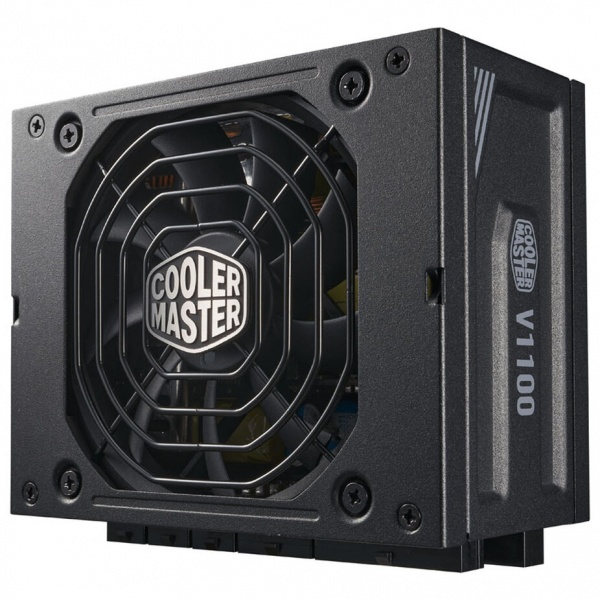

Cooler Master V-Series SFX power supply, 80 PLUS Platinum, modular, ATX 3.0, PCIe 5.0 - 1100 Watt [MPZ-B001-SFAP-BEU]

- SFX power supply with SFX 12V Ver 3.42 and ATX 3.0 standard
- 1,100 watts and powerful 91.6 A single rail
- High efficiency thanks to 80 PLUS Platinum certification
- Quiet 135 mm fan with semi-passive mode via physical switch
- Fully modular cable management
- One 12VHPWR and three 6+2 pin PCIe connectors for graphics cards

SFX power supply with powerful 91.6 single rail and 12VHPWR connector
The Cooler Master V-Series SFX Platinum 1100 ATX 3.0 power supply supplies high-end PCs with sufficient power with its 1,100 watts total output power. The powerful 12 volt rail delivers 91.6 A of power. Despite these impressive data, the power supply is extremely efficient, which is also a result of the use of high-quality electrical components. The 80 PLUS Platinum certified power supply achieves an efficiency of up to 94% at a load of 50%.

The fact that all cables can be plugged in individually ensures order - a must, especially with such extensive connectivity! After all, in addition to a 24-pin, a 4+4-pin and an 8-pin cable, there are also three 6+2-pin PCIe connectors as well as eight SATA and four 4-pin Molex connectors. There is also a 90-degree angled 12VHPWR PCIe 5.0 connector for the latest generation of high-end graphics cards.

The 1,100 watt power supply is delivered with 16AWG PCIe cables, which have a conductor cross-section that is around 1.5 times thicker than conventional power supply cables and thus ensure a particularly low power loss.

Powerful, efficient and quiet
The built-in 92 mm fan has a smooth-running fluid dynamic bearing and therefore not only promises quiet operation, but is also particularly durable. The SFX power supply can also be installed in an ATX slot using the included bracket.

Technical details:
- Dimensions: 125 x 63.5 x 100 mm (W x H x D)
- Color: Black
- Fan: 92 mm (fluid dynamic bearing, automatic control with semi-passive mode)
- Efficiency: ~ 92 / 94 / 90 % @ 20 / 50 / 100 % load at 230 V, 80 PLUS Platinum certificate
- Active PFC
- Form factor: SFX / ATX (per bracket)
- Standard: SFX 12V Ver 3.42 / ATX 3.0
- Power: 1,100 W
- +3.3V: 20 A
- +5V: 20 A
- +3.3V + +5V: 120 W
- +12V: 91.6 A / 1,099.2 W
- -12V: 0.3 A / 3.6 W
- +5Vsb: 3 A / 15 W
- Connectors (removable):
- 1x 24-pin (300 mm)
- 1x 4+4-pin (450 mm)
- 1x 8-pin (450 mm)
- 1x 12VHPWR PCIe 5.0 (400 mm)
- 3x 6+2-pin PCIe (400 mm)
- 8x SATA (100 + 150 + 150 + 150 mm)
- 4x 4-pin Molex (100 + 120 + 120 + 120 mm)
- Protection: OPP, OVP, UVP, OCP, OTP, SCP
- Safety: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA
- Lifespan: approx. 100,000 hours
