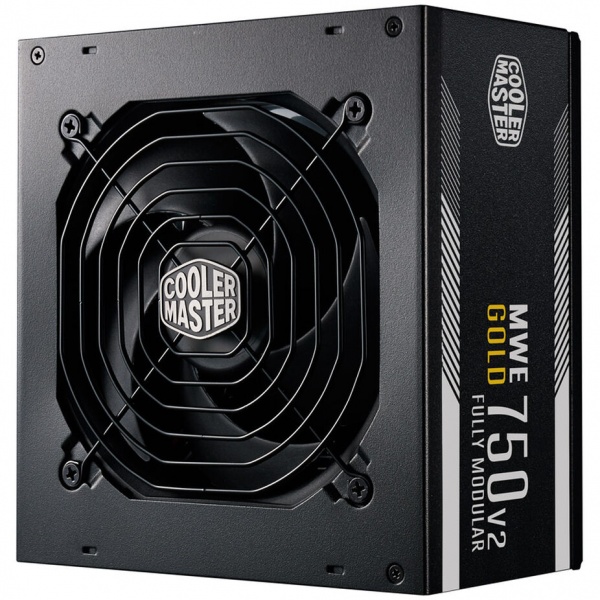

Cooler Master MWE Gold V2, 80 PLUS Gold power supply, modular, PCIe 5.0 - 750 Watt [MPE-7501-AFAAG-3EU]

- ATX 3.0 power supply with 750 watts and powerful 62.5 A single rail
- High efficiency thanks to 80 PLUS Gold certification
- Quiet 120 mm fan with semi-passive mode via physical switch
- Fully modular cable management with flat cables
- One 12VHPWR PCIe 5.0 and four 6+2 pin PCIe connectors for graphics cards

Power supply with powerful 62.5 A single rail and 12VHPWR PCIe 5.0 connector
The Cooler Master MWE Gold V2 ATX 3.0 power supply supplies high-end PCs with sufficient power with its 750 watts total output power. The powerful 12 volt rail delivers 62.5 A of power. Despite these impressive data, the power supply is extremely efficient, which is also a result of the use of high-quality electrical components. The 80 PLUS Gold certified power supply achieves an efficiency of up to 92% at a load of 50%.

The fact that all cables can be plugged in individually keeps things tidy - a must, especially with such extensive connectivity! After all, in addition to a 24-pin, a 4+4-pin and an 8-pin cable, there are also four 6+2-pin PCIe connectors as well as 12 SATA and three 4-pin Molex connectors. There is also a 12VHPWR PCIe 5.0 connection for the latest generation of high-end graphics cards.

The 750 watt power supply is supplied with 16AWG PCIe cables, which have a conductor cross-section around 1.5 times thicker than conventional power supply cables and thus ensure particularly low power loss. This means they can easily handle peak loads of up to 600 watts

Powerful, efficient and quiet
The built-in 120 mm fan has a smooth-running fluid dynamic bearing and therefore not only promises quiet operation, but is also particularly durable. A switch on the back of the power supply can also be used to choose between automatic fan control with or without passive mode. This is particularly noticeable in the noise level and the maximum possible cooling performance, depending on how much the power supply is being used.

Technical details:
- Dimensions: 150 x 86 x 160 mm (W x H x D)
- Color: Black
- Fan: 120 mm (fluid dynamic bearing, automatic control with semi-passive mode)
- Fan speed: max. 2,200 rpm
- Efficiency: ~ 90 / 92 / 89 % @ 20 / 50 / 100 % load at 230 V, 80 PLUS Gold certificate
- Noise level: max. 37.12 dB (A)
- Active PFC
- Form factor: ATX12V
- Standard: ATX 3.0
- Power: 750 W
- +3.3V: 20 A
- +5V: 20 A
- +12V: 62.5 A / 750 W
- -12V: 0.3 A
- +5Vsb: 3 A
- Connectors (removable):
- 1x 24-pin
- 1x 4+4-pin
- 1x 8-pin
- 1x 12VHPWR PCIe 5.0
- 4x 6+2-pin PCIe
- 12x SATA
- 4x 4-pin Molex
- Protection: OPP, OVP, UVP, OCP, OTP, SCP
- Safety: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
- Lifespan: approx. 100,000 hours
