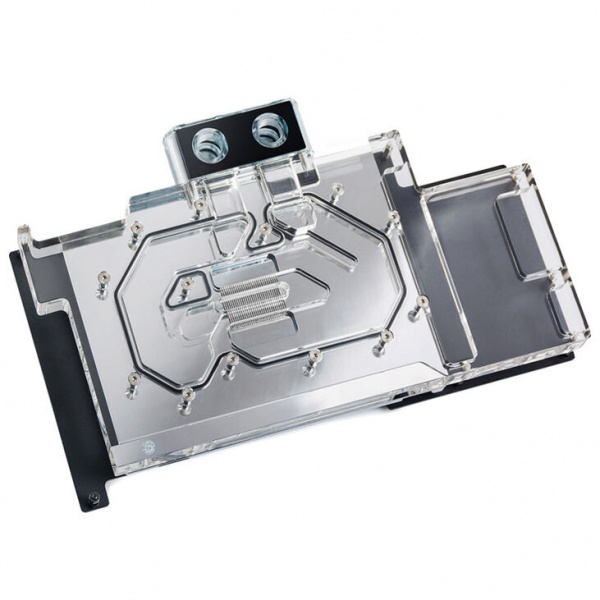

The Bitspower Classic is a high-quality and powerful heatsink for custom water cooling systems that fits the PCBs of the ASUS ROG Strix RTX 3080 graphics cards. Thanks to the nickel-plated and chrome-plated copper block, efficient cooling of the GPU, memory and voltage converter is guaranteed. The heatsink has a stylish look thanks to its transparent acrylic glass cover and integrated DRGB LED lighting. The included backplate made of black anodized aluminum increases stability and contributes to the elegant appearance of the cooler.
TheBitspower Classic ASUS ROG Strix RTX 3080 water cooler at a glance:
- Perfectly suited for the ROG Strix RTX 3080 graphics cards from ASUS
- Effective cooling performance thanks to nickel-plated and chrome-plated copper base
- Impressive appearance thanks to transparent acrylic cover
- Four G1/4-inch connections for integration into the circuit
- Digitally addressable RGB LED lighting (3-pin, 5VDG)
- Including backplate made of black anodized aluminum
- Appearance and connections of the Bitspower Classic water cooler
It is a full-block design that covers all relevant heat sources of the graphics card and thus cools effectively - i.e. the GPU, the memory and the voltage converters. Nickel-plated and chrome-plated copper is used to optimally transfer the heat.
The cover is made of transparent acrylic glass, which allows a view of the coolant flowing through. The connection terminal has four holes (G1/4-inch thread). The flat design of the cooler also makes it easy to connect several graphics cards in a network. The included backplate is made of black anodized aluminum and covers the back of the graphics card, contributing to the elegant look of the cooler. It also increases the stability of the graphics card with the cooler installed.
The digitally addressable RGB LED lighting is connected to a mainboard or RGB controller via a 3-pin connector (5VDG). Compatibility with GIGABYTE RGB Fusion 2, ASRock Polychrome Sync, ASUS Aura Sync, MSI Mystic Light, Biostar Vivid LED DJ and Razer Chroma is also available.
Why should I cool my graphics card with water?
Top performance in the graphics card segment is still bought at the price of top heat development. Because only when the clock screw is turned all the way and the calculation units are used up to the last segment can the decisive advantage over the competition be achieved. Smaller structure widths and more efficient layouts can limit this problem, but cannot completely eliminate it. The next generation will also be expected to be pushed to the limit.
The problem is made even worse by overclocking, as temperatures can reach critical levels. In short: If you want a low noise level when gaming or even benching and possibly want to turn the clock speed screw at the same time, you can hardly avoid water cooling. In addition to the usual components (radiator, pump, expansion tank), a suitable cooler for the ASUS RTX 3080 graphics cards is of course necessary - such as this model from the water cooling specialist Bitspower.
Note 1: To integrate it into the cooling circuit, connections are required that are not included in the scope of delivery. The original cooler must be removed before installation, which can void the manufacturer's warranty.
Technical details:
- Material: nickel-plated and chrome-plated copper (base), acrylic (cover)
- Color: silver
- Thread: 4x G1/4 inch
- Dimensions: 263 x 153 x 22 mm (W x H x D)
- Compatibility:
- ASUS ROG Strix RTX 3080 graphics cards
- ROG-STRIX-RTX3080-10G-GAMING
- ROG-STRIX-RTX3080-O10G-GAMING
- Scope of delivery:
- Bitspower Classic ASUS ROG Strix RTX 3080
- Thermal pads
- Backplate
- Mounting material
Note: Some coolers are delivered with a protective film on the bottom. This must be removed in any case before assembly and commissioning. We accept no liability for damage caused by incorrect or incorrect assembly and improper use!
