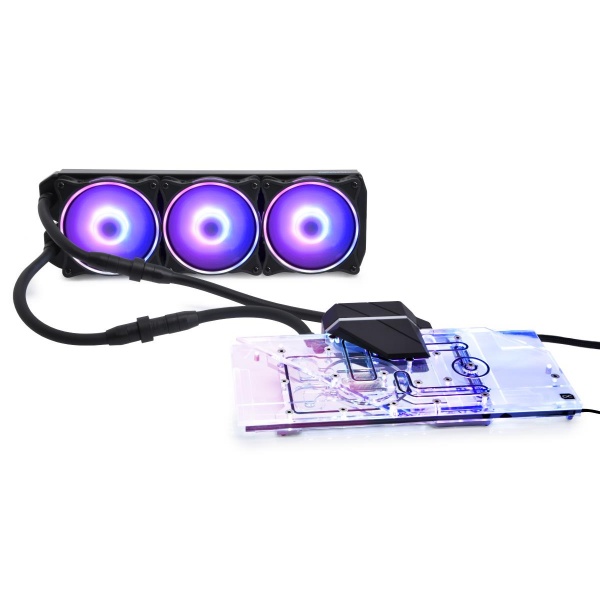

Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800/6800XT Gaming Trio X with Backplate [14422]

The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 360mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Aurora Rise Digital RGB fans.

Fullcover Waterblock?
The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.

Pump!
The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.

Fittings and Tubing
As with all new AIO units, Alphacool also uses only TPV hoses from the Enterprise Solution series for servers and workstations with the Eiswolf 2. The hoses are made of EPDM/PP and are extremely heat-resistant, durable and free from plasticizers. All connections are also based on the Enterprise Solution series and visually match the TPV hoses perfectly.

Expandability
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to create a larger circuit. Alphacool offers various pre-filled components with which the circuit can be easily expanded. For safety, the quick-release fasteners are firmly screwed together and not just plugged together.

Lighting and fans
The Eiswolf 2 cooler has digital RGB LED lighting, also called addressable RGB LEDs. They run across the entire back of the graphics card cooler and ensure that the water cooler is fully illuminated. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The 120mm Aurora Rise Fan is used as the fan. Due to the special blade design, the fan is extremely quiet and the addressable RGB LEDs ensure brilliant lighting. The Alphacool Aurora Rise fan convinces with a maximum statistical pressure of 3.17mm/H 2O and offers a max. Air Flow of 119.8m³/h. The PWM control allows the fan to be controlled over a wide speed range. It also offers zero control. It can therefore be regulated down to 0 rpm and then starts at approx. 350 rpm.

NexXxoS Radiator
As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.

The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.

Technical data cooler and pump
L x W x H: 295 x 152 x 46mm
Material cooler bottom: Nickel plated copper
Material cooler top: PMMA
Threads: 2 x G1/4"
Pump type: DC-LT 2
Pump speed; 2600 rpm (+/- 10%)
Head of delivery: 0.95 m
Maximum flow:75L/hr

Technical radiator
L x W x H: 395 x 124 x 30mm (+/- 3%)
Material fins, chambers & channels: Copper
Material threads: Brass
Material outer housing: Stainless steel
G 1/4“ threads: 2 x for tubes (+ 1x Fillport G1/4“)
For fan size: 120 mm
Possible fan assembly: 3 x one-sided / 6 x both-sided

Technical data fans
Speed: 0 - 2500 RPM
Static pressure: 3.17 mm H2O
Air flow rate: 119.8 m³/h
Fan connector: 4-Pin PWM
Connection Digital aRGB: 3-Pin JST + 3-Pin 5V
Dimensions: 120 x 120 x 25 mm
Max working temperature: 60 °C

Note:
- Attention: The use of the NVLink is not possible with this AIO!

Compatibility list:
MSI Radeon RX 6800 Gaming X Trio 16G, 16GB GDDR6, HDMI, 3x DP
MSI Radeon RX 6800 XT Gaming X Trio 16G, 16GB GDDR6, HDMI, 3x DP

Technical note!
Due to long storage times and various transport routes, the liquid in the Eiswolf 2 AIO remains still for a long time. The ingredients of the liquid can therefore deposit and lead to a brownish discoloration. As soon as the pump starts operating, the ingredients mix again and the liquid should regain an approximately clear color. This is not a reason for complaint as neither the performance nor the function of the AIO are restricted by this. If the discolouration of the cooling liquid does not disappear after the AIO has been put into operation, please contact our support team via E-Mail (info@alphacool.com). You will receive quick and uncomplicated help there.

Note on use
Please only use in conjunction with clear, transparent water cooling liquids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in the manufacturer's warranty also becoming void.
