Alphacool ES RTX 5090 Reference 1-Slot Design with Backplate [10262]

Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server enclosures and workstations, enabling efficient cooling even in densely packed systems.

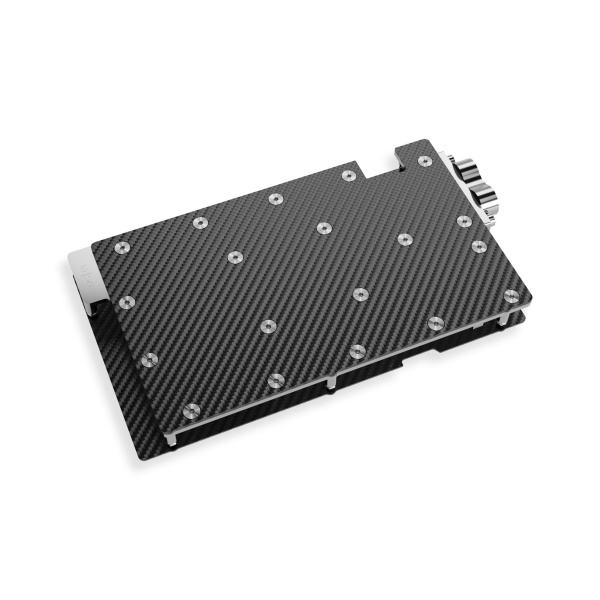

By employing a thin yet extremely robust carbon plate, these coolers have been designed as 1-slot units without compromising the integrity of the copper block. Paired with rear-placed brass connectors, multiple coolers can be easily stacked on top of each other or side by side within a server case. This thoughtful design saves space, simplifies tubing, and allows for seamless integration into the water circuit.

All water-bearing parts are made from high-quality copper, which offers nearly twice the thermal conductivity of aluminum. Additionally, the copper is chrome-plated rather than nickel-plated, providing extra protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing the chipping of coatings.

The GPU water cooler has undergone a complete technical overhaul. To optimize cooling performance, the spacing between the cooler and the components on the PCB was redefined and tested. The water flow was simulated using state-of-the-art software and validated through practical trials. These extensive tests led to improvements in the cooler base and nozzle, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Features:
- Optimized water flow through software and practical measurements
- Massive brass threads for secure fastening
- Superior chrome plating instead of nickel plating on the copper cooler
- Core design for maximum quality and feel

Technical data Waterblock:
- Dimensions total (L x W x H) 224,29 x 119,32 x 21,34mm
- Material cooler chrome-plated copper
- Material cooler top Acrylic
- Material terminal Brass
- Material Connection thread Brass
- Max working temperature 60°C
- Pressure tested 0,8 bar
- Threads 2 x G1/4"
- Thickness cooler bottom 3,25mm
- Thickness cooling fins 0,4mm
- Distance cooling fins 0,4mm
- Color transparent

Technical data backplate:
- 224,29 x 119,32 x 3mm
- Thick backplate without spacers 1mm
- Material Aluminium

Compatibility:
- Inno3D GeForce RTX™ 5090 iChill Frostbite
- Inno3D GeForce RTX™ 5090 iChill X3
- Inno3D GeForce RTX™ 5090 X3

Included in the Package:
1x Core Geforce RTX 5090 Reference 1-Slot-Design cooler
1x Backplate
Thermal Pads
Thermal Grease
Putty tool
ARGB Adapter
PCIe Bracket
Plug tool
Screwdriver
G1/4" Plugs
M2x10mm screw
