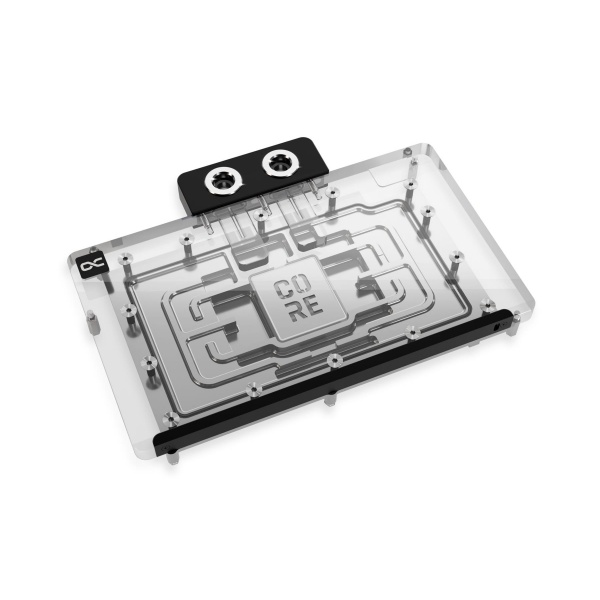

Alphacool Core Geforce RTX 5090 Suprim + Vanguard with Backplate [10268]

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler’s durability and provides a smoother, more radiant surface than traditional nickel plating.

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.

The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Features:
- Optimized water flow through software and practical measurements
- Massive brass threads for secure fastening
- Superior chrome plating instead of nickel plating on the copper cooler
- Core design for maximum quality and feel

Technical data Waterblock:
- Dimensions total (L x W x H) 222,40 x 160,81 x 34,12mm
- Material cooler chrome-plated copper
- Material cooler top Acrylic
- Material terminal Acetal
- Material Connection thread Brass
- Max working temperature 60°C
- Pressure tested 0,8 bar
- Threads 4 x G1/4"
- Thickness cooler bottom 3,25mm
- Thickness cooling fins 0,4mm
- Distance cooling fins 0,4mm
- Illumination digital aRGB LEDs
- Power connector digital aRGB LEDs 3-Pin JST
- Power digital aRGB LEDs 5V
- Number of digital aRGB LEDs 9
- Color transparent

Technical data backplate:
- 222,40 x 160,81 x 6mm
- Thick backplate without spacers 3mm
- Material Aluminium

Compatibility:
- MSI GeForce RTX™ 5090 32G SUPRIM LIQUID SOC
- MSI GeForce RTX™ 5090 32G SUPRIM SOC
- MSI GeForce RTX™ 5090 32G Vanguard SOC Launch Edition
- MSI GeForce RTX™ 5090 32G Vanguard SOC

Included in the Package:
1x Core Geforce RTX 5090 Suprim + Vanguard cooler
1x Backplate
Thermal Pads
Thermal Grease
Putty tool
ARGB Adapter
PCIe Bracket
Plug tool
Screwdriver
G1/4" Plugs
M2x10mm screw
