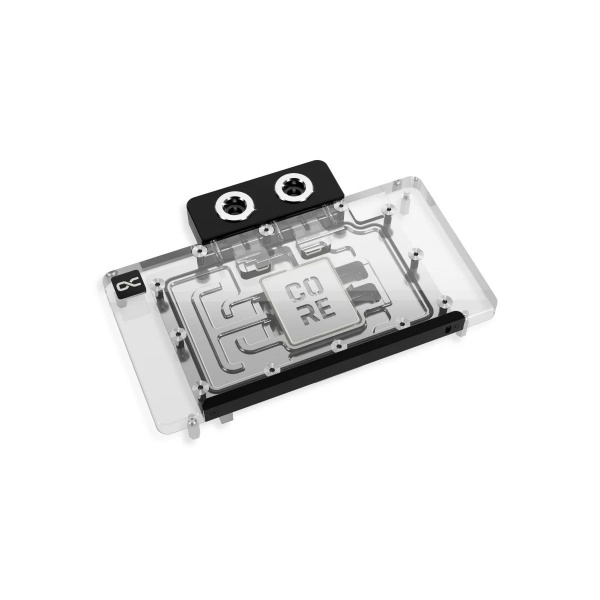

Alphacool Core Geforce RTX 5080 PNY EPIC-X with Backplate [14740]

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler’s durability and provides a smoother, more radiant surface than traditional nickel plating.

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.

The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- PNY GeForce RTX™ 5080 ARGB EPIC-X RGB™ Overclocked Triple Fan GPU
- PNY GeForce RTX™ 5080 ARGB EPIC-X RGB™ Triple Fan GPU
- PNY GeForce RTX™ 5080 Overclocked Triple Fan GPU
- PNY GeForce RTX™ 5080 Triple Fan GPU

Technical data cooler
Dimensions total (L x W x H)    180 x 124,10 x 34,07mm
Material cooler    chrome-plated copper
Material cooler top    Acrylic
Material terminal    Nylon
Material Connection thread    Brass
Max working temperature    60°C
Pressure tested    0,8 bar
Threads    4 x G1/4"
Thickness cooler bottom    3,25mm
Thickness cooling fins    0,4mm
Distance cooling fins    0,4mm
Illumination    digital aRGB LEDs
Power connector digital aRGB LEDs    3-Pin JST
Power digital aRGB LEDs    5V
Number of digital aRGB LEDs    7
Color    transparent

Technical data backplate
Dimensions (L x W x H)    180,00 x 95,57 x 6,00mm
Thickness backplate without spacers    3mm
Material    Aluminium

Included:
1x Alphacool Core Geforce RTX 5080 PNY EPIC-X with Backplate
All mounting hardware and thermal pads
