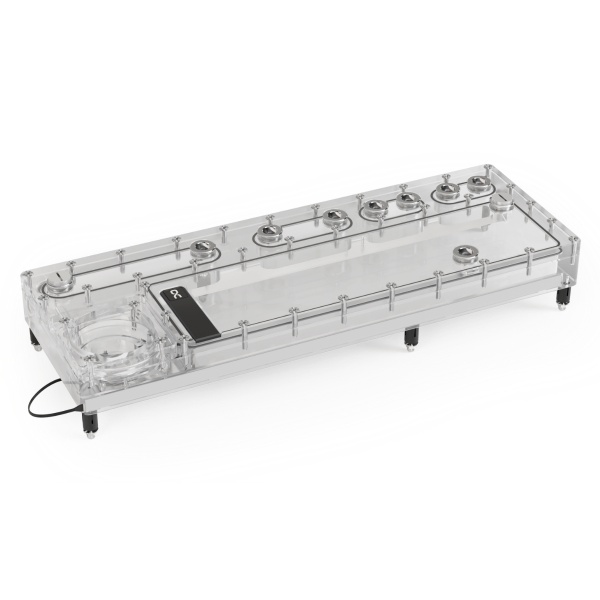

Alphacool Core Distro Plate 420 Links VPP/D5 [13890]

The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it is not only an absolute eye-catcher, but also a functional masterpiece that simplifies the construction and planning of complex water loops and offers uncomplicated installation.

The Distro Plate is made of high-quality acrylic and fitted with chrome-plated G1/4’ brass connections. These have been recessed and deliberately not screwed in to minimise the risk of cracks and leaks while increasing stability. The connections are made of two parts, have an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.

The arrangement of the connections is designed not only to optimise tube routing, but also to provide an attractive appearance. This is complemented by its integrated aRGB lighting, which provides impressive visual effects. The lighting can be controlled either via a digital aRGB header on the mainboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (article no.: 15360).

The Alphacool Core Push Mounting Kit is included in the scope of delivery, which significantly simplifies the installation of the Distro Plate. The metal pins are attached to a radiator or the panel of the PC case and the matching female sleeves are attached to the distro plate so that you only have to push them onto the pins. This system ensures a secure fit of the distro plate and enables easy disassembly for maintenance or extensions. A detailed description can be found in the enclosed instructions.

Technical data
- Dimensions (L x W x H) 420,00 x 145,00 x 42,00 mm
- Dimensions (L x W x H) with pump 420,00 x 145,00 x 61,00 mm
- Dimensions (L x W x H) with push mounting 420,00 x 145,00 x 72,80 mm
- Dimensions (L x W x H) with pump + push mounting 420,00 x 145,00 x 88,80 mm
- Material acrylic
- Volume 620ml
- Pump compatibility D5/VPP
- Threads 10x G1/4“ inner thread / 1x drain port
- Maximum working temperature 60 °C
- Pressure tested 0,8 Bar
- Quantity of digital aRGB LEDs 17
- Power digital aRGB LEDs 5V
- Power connector digital aRGB LEDs 3-Pin JST + 3-Pin 5V
- Weight with pump 2580g
- Weight without pump 2304g
- Color transparent

Warranty: 3 years
???? Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
