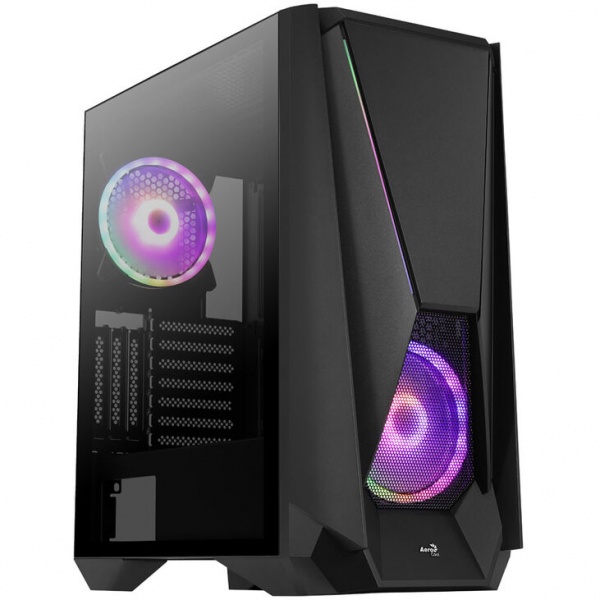

Aerocool Visor Midi Tower, tempered glass - B-Grade [ACCM-PB22023.11]

The black midi tower for high-end systems features a strikingly stylish design, a power supply cover and generous air cooling options including a partially perforated front with two RGB LED strips. Up to six 6-pin PWM fans from Aerocool can be connected to the included hub. With generous space for mini-ITX, micro-ATX, ATX and even E-ATX motherboards and graphics cards up to 387 mm, full-size gaming PCs can also be created.

The features of the Aerocool Visor at a glance:
- Midi tower for E-ATX, ATX, Micro-ATX and Mini-ITX boards
- Side panel made of tempered glass
- Partially perforated front with RGB LED strips
- Power supply cover ensures a tidy interior
- Graphics cards up to 387 mm long / CPU cooler up to 180 mm high
- Including hub for 6x 6-pin PWM fans, controllable via switch on the I/O panel or mainboard
- Two 140 mm PWM fans with RGB LED lighting included

Aerocool Visor: Stylish and powerful midi tower
The Aerocool Visor offers showcase elements and plenty of space for high-end hardware in the format of a midi tower. The side panel made of tempered glass allows a view of the installed hardware and the plastic front is characterized by two V-shaped RGB LED strips. A mesh in the lower part of the front ensures good airflow in the case and thus supports the cooling of the installed components.

A total of up to six case fans can be installed in the Aerocool Visor: Three 120 mm or 140 mm fans can be installed in the front. A 140 mm PWM fan with RGB LED lighting is already pre-installed there. Two 120 mm or 140 mm fans can be installed in the lid and a 140 mm PWM fan with RGB LED lighting is also pre-installed on the back of the case, which could make way for a 120 mm fan. For water-cooled systems, a 280/360 mm radiator can be installed in the front as well as a 240 mm radiator on the lid and a 120 mm radiator in the back of the case.
Lots of space for gaming hardware
The power supply cover ensures a particularly tidy interior, as the power supply, cables and drives can be hidden underneath it. Underneath there is a drive cage for three 3.5-inch data storage devices, one of which can be replaced by a 2.5-inch drive. Two 2.5-inch data storage devices can also be attached to the back and front of the mainboard tray.

With 26.55 mm of space between the mainboard tray and the right side panel, there is also enough space for neat cable management. 387 millimeters in length are planned for the installation of powerful graphics cards. Tower coolers must not exceed a height of 180 millimeters. There are three slots available for the vertical installation of a graphics card, and a support is included in the delivery.

The Aerocool Visor comes with a hub to which up to six PWM fans can be connected with the Aerocool standard 6-pin connector for power and RGB LED lighting. The PWM signal is received via a cable connected to a mainboard. The two RGB LED strips on the front are also connected to the hub's two 3-pin ports. The digitally addressable RGB LEDs are controlled either via a switch on the I/O panel or also via a mainboard. A connection cable between the hub and a 3-pin 5VDG port on a mainboard is included for this purpose.

Technical details:
- Dimensions: 230 x 502 x 491 mm (W x H x D)
- Material: steel, plastic, tempered glass
- Color: black
- Form factor: E-ATX, ATX, Micro-ATX, Mini-ITX
- Total fans possible:
- Front: 3x 120 / 3x 140 mm
- Rear: 1x 120 / 1x 140 mm
- Top: 2x 120 / 2x 140 mm
- Of which pre-installed:
- 1x 140 mm fan (front)
- 1x 140 mm fan (rear)
- Radiator support:
- Front: 1x 280 / 360 mm
- Top: 1x 240 mm
- Rear: 1x 120 mm
- Drive bays:
- 1x 2.5 / 3.5 inch (internal)
- 2x 3.5 inch (internal)
- 4x 2.5 inch (internal)
- Power supply: 1x standard ATX up to 223 mm (optional)
- Expansion slots: 7 + 3
- I/O panel:
- 2x USB 3.0
- 1x RGB LED control
- 2x HD audio
- Maximum graphics card length: 378 mm (without a radiator on the front)
- Maximum CPU cooler height: 180 mm
